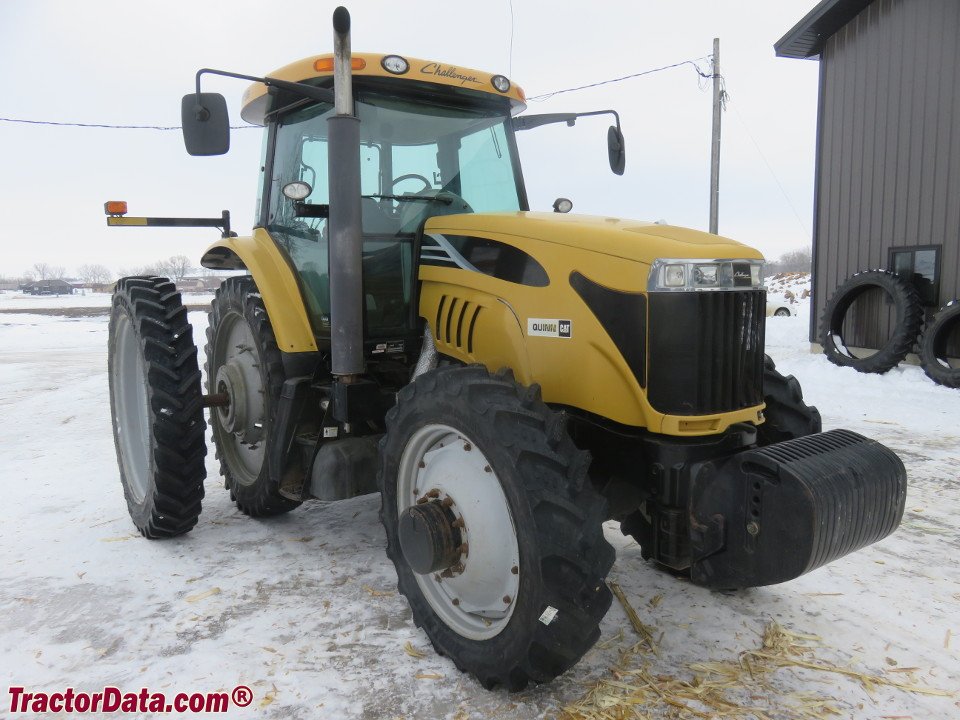

Challenger MT575B 2WD 2WD – specifications
Series: Other models
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Challenger MT575B 2WD is a two-wheel-drive tractor from the manufacturer's MT series. This model is designed for agricultural applications where high traction and hydraulic performance are paramount. The design is based on a six-cylinder C6.6 ACERT engine equipped with a turbocharger and charge-air cooling. The rated speed is 2,200 rpm, ensuring stable working performance under load. The empty weight of 6,803.9 kg provides good traction, particularly on heavy arable soil.
The lifting capacity of 6,479 kg allows for the use of heavy mounted implements such as large plows or seed drills. The pump flow rate of 180.2 l/min ensures that hydraulically controlled devices respond quickly and precisely. With a tank capacity of 370.2 l, long working times without frequent refueling stops are possible. The maximum speed of 40.2 km/h permits rapid travel between fields. The ground clearance of 440.2 mm protects the vehicle from damage on uneven terrain.
Within the series, the MT575B 2WD is positioned as a model with high power capacity. The PTO power of 160 hp is sufficient for most common mounted implements in this power range. The Auto Power transmission assists the driver through automatic gear shifts, facilitating concentration on the work. The width of 2,060.4 mm and the length of 4,840 mm define the external dimensions for transport and storage.
Challenger – other models: the collective page of tractors outside the named ranges, from the compacts MT225 to MT295 through the wheeled MT425 to MT695 to the tracked MT700 and MT800, 17 to 471 kW, Caterpillar
This page gathers the Challenger tractors the register could not assign to a named range – the brand Caterpillar founded in 1987 with the Challenger 65, the first agricultural tracked tractor with rubber belts, and sold in 2002 to AGCO, which used the name until 2022 for a complete tractor programme. The type logic of the AGCO era: MT stands for the brand, the first digit for the range – MT200 the compacts of Iseki manufacture, MT300 and MT400 the small and medium ones, MT500 and MT600 the four- and six-cylinder wheeled tractors created as sister models of the Massey Ferguson 5400 to 8400 in Beauvais, MT700 and MT800 the rubber-tracked tractors from Jackson, Minnesota, MT900 the articulated ones – the following digits the power step and B, C, D and E the generations; 2WD and MFWD distinguish rear- and four-wheel drive. The engines are Caterpillar (C6.6, C15, C18) in the tracked and articulated tractors of the early years, AGCO Power (Sisu) in the later ones and Iseki in the compacts; the register span of 1.1 to 18.1 litres shows that breadth.
Read on 3 more paragraphs
The register lists here 99 versions with 16.8 to 470.5 kW from three- to seven-cylinders of 1,123 to 18,124 cm³, PTO outputs from 18 to 533 hp, lift capacities from 268 to 8,845 kg, unladen weights from 720 to 27,216 kg and lengths from 1,480 to 7,570 mm.
The Challenger MT700 and MT800 remained to the last the benchmark of the tracked tractor against which John Deere set its 8RT and 9RT and Case IH the Quadtrac; since 2022 the machines run as Fendt MT.
On used tracked tractors the condition of rubber belts, rollers and drive wheels (the most expensive item) counts, on all of them operating hours, engine and exhaust aftertreatment, powershift or stepless transmission, hydraulics and electronics; parts run through AGCO and, for the Cat engines, through Caterpillar.
Sources: SpecCodex register, model data: Challenger (weitere Modelle), Challenger (AGCO, Hersteller)
Technical data
Engine
| Engine model | C6.6 ACERTcorrect |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600.7 cm³correct |
| Aspiration | Turbocharged and Aftercooledcorrect |
| Coolant capacity | 25.7 lcorrect |
Dimensions and weights
| Length | 4,840 mmcorrect |
|---|---|
| Width | 2,060.4 mmcorrect |
| Wheelbase | 2,892.6 mmcorrect |
| Ground clearance | 440.2 mmcorrect |
| Unladen weight | 6,803.9 kgcorrect |
Drivetrain and chassis
| Gearbox type | Auto Powercorrect |
|---|---|
| Top speed | 40.2 km/hcorrect |
Working data
| Lifting capacity | 6,479 kgcorrect |
|---|---|
| Pump flow | 180.2 l/mincorrect |
| Hydraulic oil capacity | 70 lcorrect |
| Fuel tank capacity | 370.2 lcorrect |
Other data
| PTO output | 160 hpcorrect |
|---|---|
| System voltage | 24 Vcorrect |
More machines with this engine (C6.6 ACERT, 12)
Frequently asked questions
How much does the Challenger MT575B 2WD weigh?
The unladen weight is 6,804 kg.
What engine does the Challenger MT575B 2WD have?
6 cylinders, 6,601 cm³ displacement.
How fast does the Challenger MT575B 2WD go?
Top speed is 40.2 km/h.
What is the PTO output of the Challenger MT575B 2WD?
PTO output is 160 hp.
How much does the rear linkage of the Challenger MT575B 2WD lift?
The rear linkage lifts 6,479 kg.
What are the dimensions of the Challenger MT575B 2WD?
4,840 mm × 2,060 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
