Challenger MT535B MFWD 2WD – specifications
Series: Other models
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

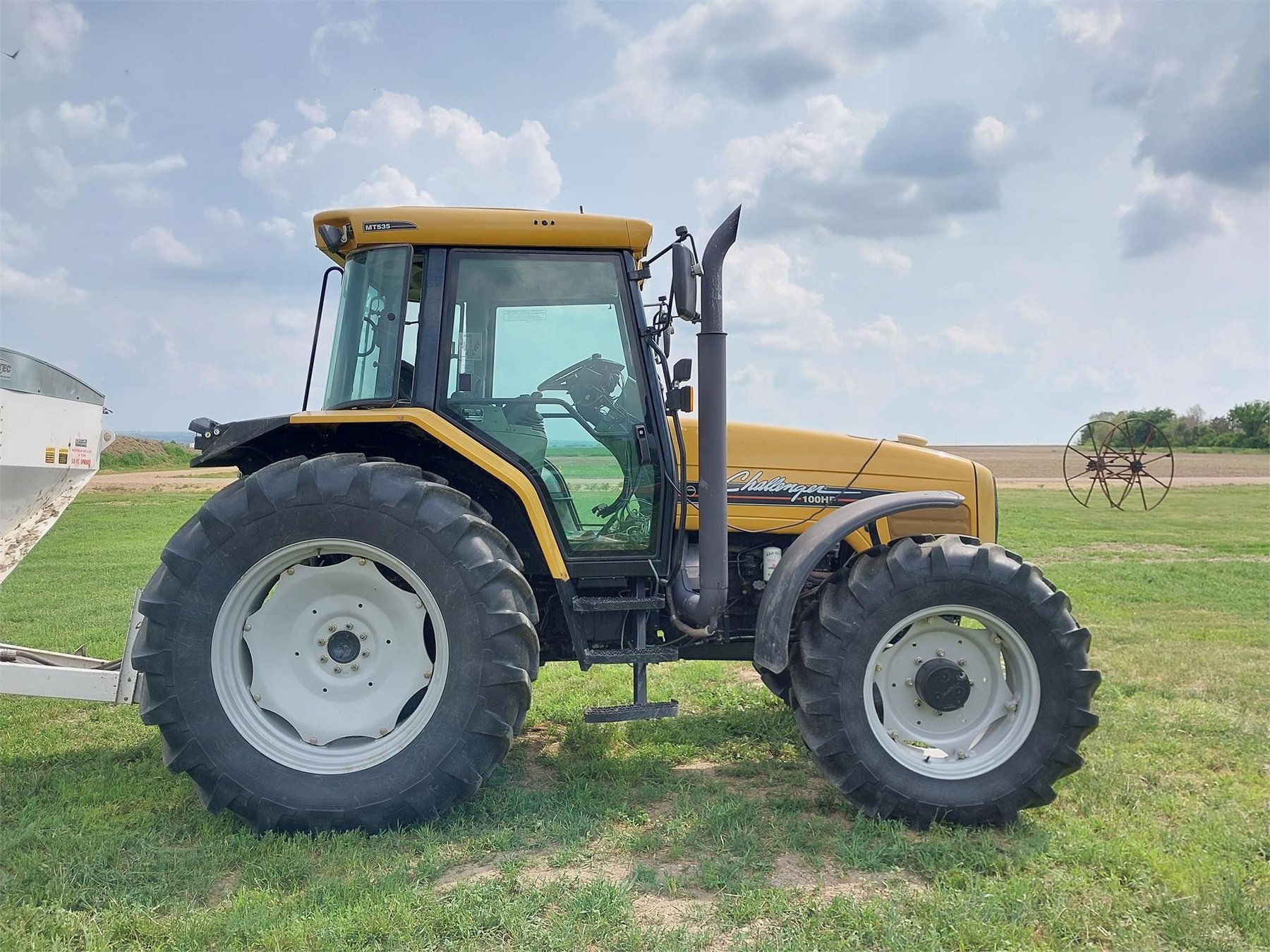

The Challenger MT535B MFWD is a tractor from the Challenger series, offered in a two-wheel-drive variant. This model targets users requiring a machine with specific dimensions and performance data for agricultural applications. The design is based on a six-cylinder in-line engine supported by a turbocharger and charge air cooling. The configuration is optimized for stability and traction, with technical parameters allowing for clear classification within the mid-power segment of this product line.
The C6.6 ACERT engine with a displacement of 6,600.7 cm³ delivers a PTO power of 110 hp at a rated speed of 2,200 rpm. This output is sufficient to operate common implements such as plows or seeders in field conditions. The empty weight of 5,420 kg ensures necessary traction, while the ground clearance of 392.2 mm facilitates traversing obstacles. With a lift capacity of 4,951 kg and a pump flow rate of 110.2 l/min, the hydraulic system is sized for heavy rear-mounted implements. The fuel tank capacity of 270.3 l enables long working intervals without frequent refueling.
Within the Challenger series, the MT535B MFWD is positioned as a specific model with defined performance characteristics. The maximum speed of 40.2 km/h and the Auto Power transmission support the transition between field work and road travel. The dimensions, with a length of 4,630 mm and a width of 2,060.4 mm, allow for use in various farm sizes. The onboard voltage of 24 V ensures stable supply for electrical systems. This model is typically suitable for tasks requiring moderate traction and reliable hydraulic performance, without utilizing the capacities of larger models in the series.
Challenger – other models: the collective page of tractors outside the named ranges, from the compacts MT225 to MT295 through the wheeled MT425 to MT695 to the tracked MT700 and MT800, 17 to 471 kW, Caterpillar
This page gathers the Challenger tractors the register could not assign to a named range – the brand Caterpillar founded in 1987 with the Challenger 65, the first agricultural tracked tractor with rubber belts, and sold in 2002 to AGCO, which used the name until 2022 for a complete tractor programme. The type logic of the AGCO era: MT stands for the brand, the first digit for the range – MT200 the compacts of Iseki manufacture, MT300 and MT400 the small and medium ones, MT500 and MT600 the four- and six-cylinder wheeled tractors created as sister models of the Massey Ferguson 5400 to 8400 in Beauvais, MT700 and MT800 the rubber-tracked tractors from Jackson, Minnesota, MT900 the articulated ones – the following digits the power step and B, C, D and E the generations; 2WD and MFWD distinguish rear- and four-wheel drive. The engines are Caterpillar (C6.6, C15, C18) in the tracked and articulated tractors of the early years, AGCO Power (Sisu) in the later ones and Iseki in the compacts; the register span of 1.1 to 18.1 litres shows that breadth.
Read on 3 more paragraphs
The register lists here 99 versions with 16.8 to 470.5 kW from three- to seven-cylinders of 1,123 to 18,124 cm³, PTO outputs from 18 to 533 hp, lift capacities from 268 to 8,845 kg, unladen weights from 720 to 27,216 kg and lengths from 1,480 to 7,570 mm.
The Challenger MT700 and MT800 remained to the last the benchmark of the tracked tractor against which John Deere set its 8RT and 9RT and Case IH the Quadtrac; since 2022 the machines run as Fendt MT.
On used tracked tractors the condition of rubber belts, rollers and drive wheels (the most expensive item) counts, on all of them operating hours, engine and exhaust aftertreatment, powershift or stepless transmission, hydraulics and electronics; parts run through AGCO and, for the Cat engines, through Caterpillar.
Sources: SpecCodex register, model data: Challenger (weitere Modelle), Challenger (AGCO, Hersteller)
Technical data
Engine
| Engine model | C6.6 ACERTcorrect |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600.7 cm³correct |
| Aspiration | Turbocharged and Aftercooledcorrect |
| Coolant capacity | 25.7 lcorrect |
Dimensions and weights
| Length | 4,630 mmcorrect |
|---|---|
| Width | 2,060.4 mmcorrect |
| Wheelbase | 2,828.5 mmcorrect |
| Ground clearance | 392.2 mmcorrect |
| Unladen weight | 5,420 kgcorrect |
Drivetrain and chassis
| Gearbox type | Auto Powercorrect |
|---|---|
| Top speed | 40.2 km/hcorrect |
Working data
| Lifting capacity | 4,951 kgcorrect |
|---|---|
| Pump flow | 110.2 l/mincorrect |
| Hydraulic oil capacity | 70 lcorrect |
| Fuel tank capacity | 270.3 lcorrect |
Other data
| PTO output | 110 hpcorrect |
|---|---|
| System voltage | 24 Vcorrect |
More machines with this engine (C6.6 ACERT, 12)
Frequently asked questions
How much does the Challenger MT535B MFWD weigh?
The unladen weight is 5,420 kg.
What engine does the Challenger MT535B MFWD have?
6 cylinders, 6,601 cm³ displacement.
How fast does the Challenger MT535B MFWD go?
Top speed is 40.2 km/h.
What is the PTO output of the Challenger MT535B MFWD?
PTO output is 110 hp.
How much does the rear linkage of the Challenger MT535B MFWD lift?
The rear linkage lifts 4,951 kg.
What are the dimensions of the Challenger MT535B MFWD?
4,630 mm × 2,060 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
