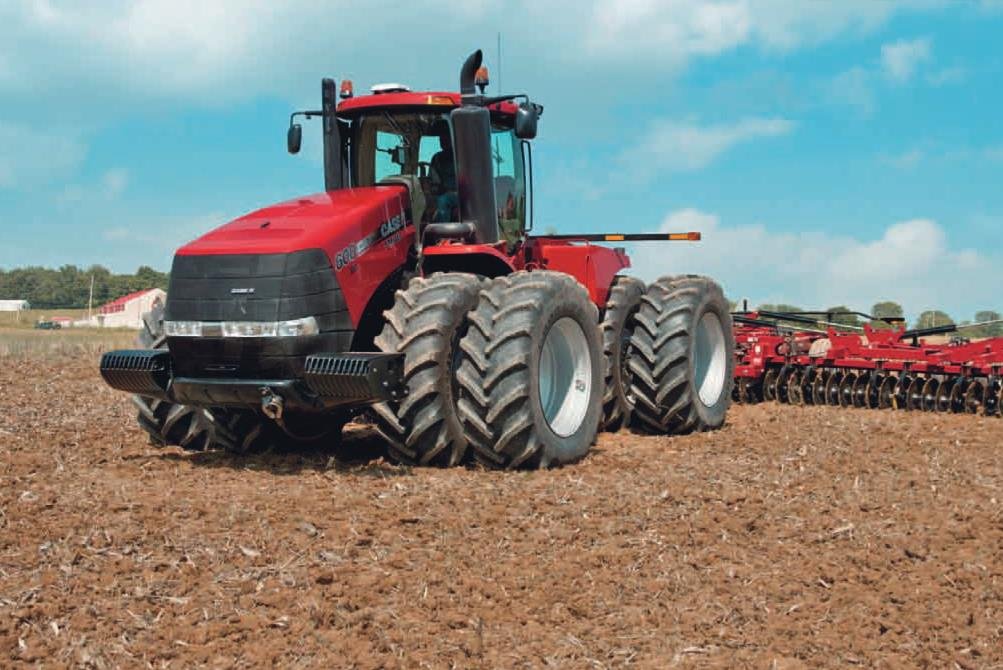

Case IH STEIGER 580 WHEELED (2014-2017) 4WD
Series: STEIGER
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Steiger – Large Articulated Tractor With Quadtrac Option
The Steiger series traces back to the US manufacturer Steiger Tractor, founded in 1957 and acquired by Case IH in 1986; the register lists models from 2001 to 2019. Output ranges from 260 to 450 kW, with models rated in horsepower spanning 350 to 600 hp, using six-cylinder engines.
Read on 2 more paragraphs
Besides the classic articulated wheeled version, Case IH also offers the Steiger series as the Quadtrac, with four independent rubber-tracked undercarriages, identifiable from the corresponding model designations in the register. PTO output of one recorded model is 379 hp, and lift capacity reaches up to 8,948 kg.
Within the Case IH range, the Steiger sits as the largest tractor class for operations with very high draft requirements, such as large-scale tillage in North America and Eastern Europe. For a used model, distinguishing the wheeled version from the Quadtrac matters, as maintenance demands and intended use differ considerably.
Technical data
Engine
| Engine make | Case IH FPTcorrect |
|---|---|
| Engine model | Steiger 580 Wheeledcorrect |
| Cylinders | 6correct |
| Displacement | 12,901.5 cm³correct |
| Aspiration | Two-Stage Turbocharged, Inter- & Aftercooledcorrect |
Dimensions and weights
| Width | 3,048correct |
|---|---|
| Wheelbase | 3,913.6correct |
Drivetrain and chassis
| Gearbox type | Full powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 2correct |
Working data
| Lifting capacity | 8,900 kgcorrect |
|---|
Other data
| Cab height | 3,963.2correct |
|---|---|
| PTO speed | 1,000correct |
Frequently asked questions
What engine does the Case IH STEIGER 580 WHEELED (2014-2017) have?
6 cylinders, 12,902 cm³ displacement.
How much does the rear linkage of the Case IH STEIGER 580 WHEELED (2014-2017) lift?
The rear linkage lifts 8,900 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
