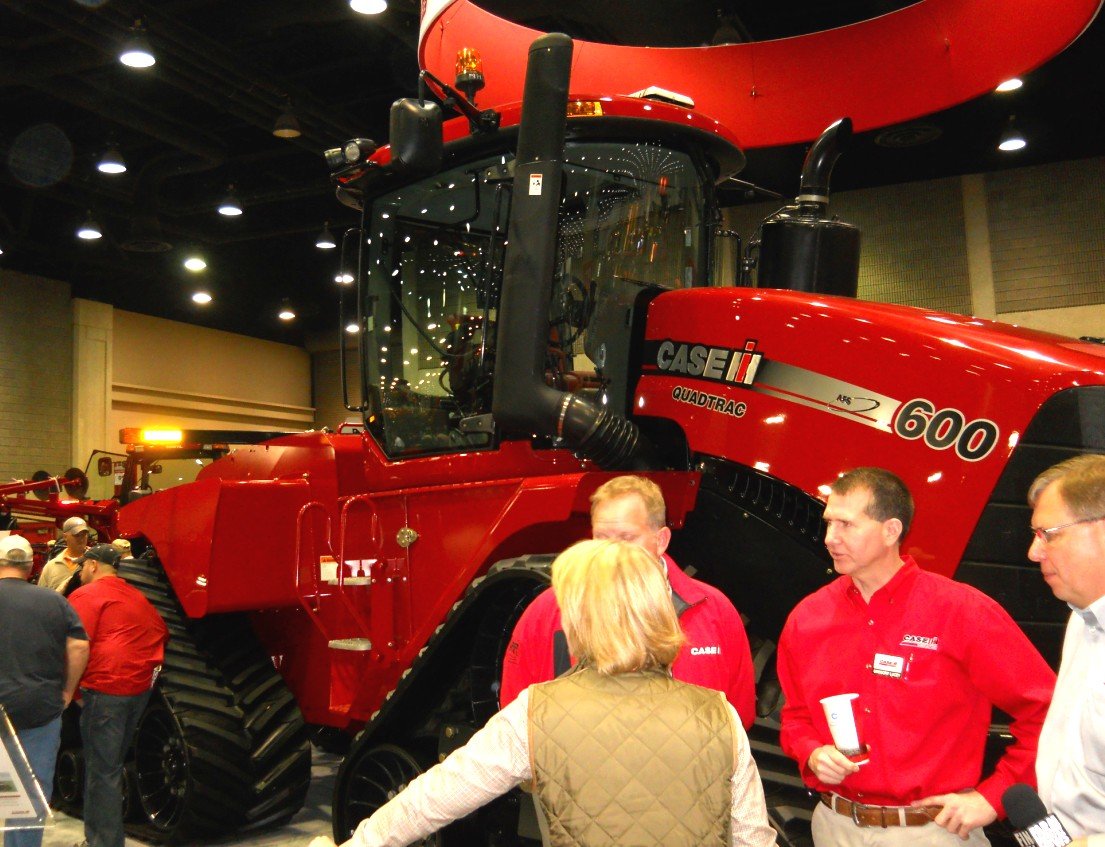

Case IH Steiger 600 Quadtrac
Built: 2011-2011 · Series: STEIGER
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Built in 2011, the Case IH (cnh) Steiger 600 Quadtrac is a tractor from Case IH (cnh). It is powered by a six-cylinder engine producing 450 kW. Rated power is reached at 2,100 rpm.
Drive type: tracked.
It runs on diesel; the engine is water-cooled. The predecessor was the Case IH Steiger 535 Quadtrac. Within the range, rated power spans from 17 to 450 kW; with 450 kW, the Steiger 600 Quadtrac sits at the top. Below it ranks the Steiger 530 Quadtrac with 400 kW.
Technical data
Engine
| Engine make | Case IH (Iveco)correct |
|---|---|
| Fuel | dieselcorrect |
| Power | 600 hp (450 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 787 cu incorrect |
| Bore | 5,315 incorrect |
| Stroke | 5,906 incorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 154 in (3911,6 mm)correct |
|---|---|
| Unladen weight | 53804 to 56000 lbscorrect |
Drivetrain and chassis
| Drive | tracked undercarriagecorrect |
|---|
Working data
| Lifting capacity | 19,728 lbs (8948,5 kg)correct |
|---|---|
| Fuel tank capacity | 470 galcorrect |
| PTO speed | 1,000correct |
| Linkage category | 4 Ncorrect |
Origin and approval
| Plant | Fargo, North Dakota, USAcorrect |
|---|---|
| Predecessor | Case IH Steiger 535 Quadtraccorrect |
Frequently asked questions
How much power does the Case IH Steiger 600 Quadtrac have?
The Case IH Steiger 600 Quadtrac delivers 600 hp.
What engine does the Case IH Steiger 600 Quadtrac have?
6 cylinders, diesel.
When was the Case IH Steiger 600 Quadtrac built?
Production years: 2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
