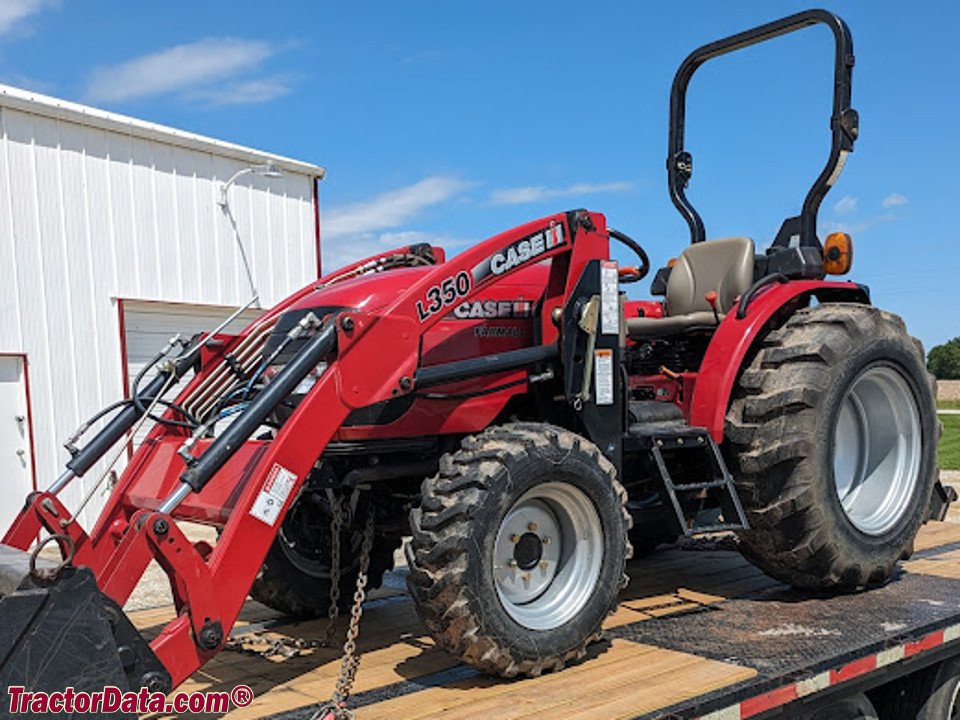

Case IH Farmall 40B

Built: 2011 · Series: Farmall

← Predecessor: Farmall 40

More machines from model year 2011

Source: https://www.tractordata.com/farm-tractors/006/9/8/6981-casei

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Farmall series from Case IH includes the Farmall 40B. Production: 2011. The engine delivers 41 hp (30.6 kW), has 4 cylinders. The engine comes from Mitsubishi. Rated speed is 2,600 rpm. Lifting capacity is 1,120 kg. Transmission: synchromesh gearbox Shuttle Shift (SSS). The engine is water-cooled. The model was built in South Korea. The fuel is diesel. The engine fitted is the S4QL. The gearbox offers 16 forward gears. There are also 16 reverse gears. The linkage is category I. Its predecessor was the Case IH Farmall 40. The PTO runs at 540 rpm. The Farmall series covers 122 models. Rated output within it ranges from 28 to 95 hp; the Farmall 40B sits in the lower part of that range with 41 hp. Its immediate neighbours are the FARMALL 40C below it with 40.2 hp and the FARMALL 45C SERIES II above it with 45 hp. Lifting capacity within it ranges from 650 to 2,605 kg; here the Farmall 40B sits in the lower part of that range with 1,120 kg. 1222 Case IH models across 76 series are on record.

Case IH Farmall – A, C and U: the compact utility class and what the letters mean

At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.

Read on 3 more paragraphs

The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.

In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.

Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.

Sources: SpecCodex register, model data: Case IH Farmall, Case IH Traktorenprogramm (manufacturer), Farmall (Wikipedia)

Technical data

Engine

Engine makeMitsubishicorrect
Engine modelS4QLcorrect
Fueldieselcorrect
Power41 hp (30.6 kW)correct
Rated speed2,600 rpmcorrect
Cylinders4correct
Displacement153 cu incorrect
Coolingwater-cooledcorrect

Dimensions and weights

Wheelbase69 in (1752.6 mm)correct
Unladen weight3725 lbs (1689.6 kg)correct

Drivetrain and chassis

Driveselectable four-wheel drivecorrect
Gearboxsynchromesh gearbox Shuttle Shift (SSS)correct
Forward gears16correct
Reverse gears16correct

Working data

Lifting capacity1,120 kgcorrect
Lifting capacity2469 lbs (1119.9 kg)correct
Fuel tank capacity9.5 galcorrect

Origin and approval

PlantSouth Koreacorrect

Other data

Linkage categoryCat Icorrect
PTO speed540correct
PredecessorCase IH Farmall 40correct

More machines with this engine (Mitsubishi S4QL, 4)

Frequently asked questions

How much power does the Case IH Farmall 40B have?

The Case IH Farmall 40B delivers 41 hp.

What engine does the Case IH Farmall 40B have?

4 cylinders, Diesel.

How much does the rear linkage of the Case IH Farmall 40B lift?

The rear linkage lifts 1,120 kg.

When was the Case IH Farmall 40B built?

Production years: 2011.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
