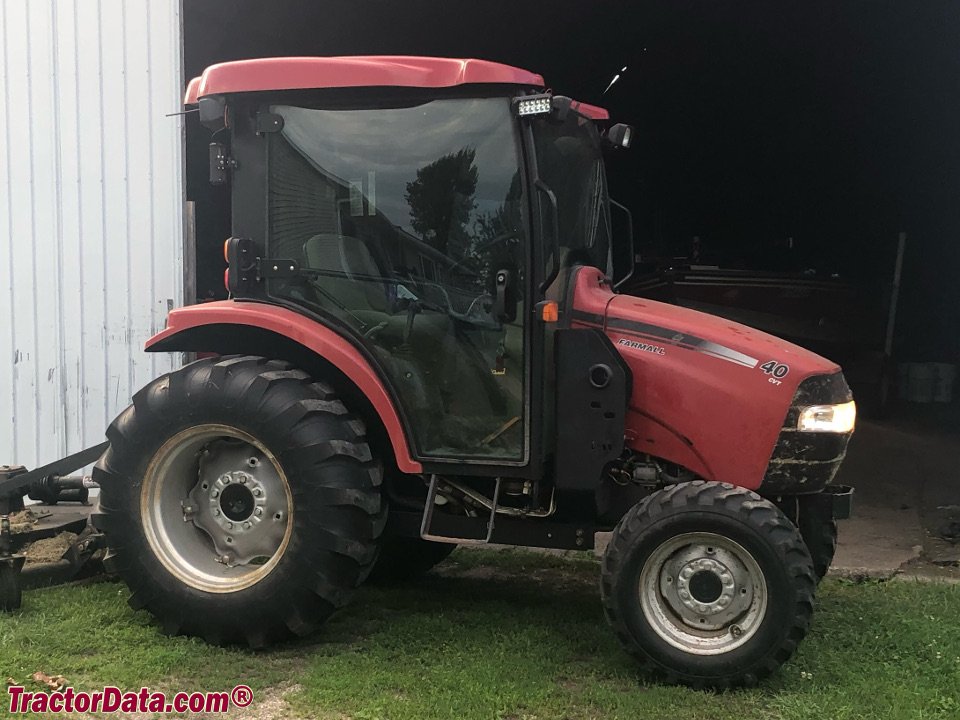

Case IH Farmall 40 Utility
Series: Farmall
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Farmall 40 is a tractor from the Case IH Utility Tractor series. The four-cylinder engine, displacing 2 litres, produces 41 hp (29.8 kW). Rated power arrives at 2,600 rpm — the engine pulls from low down rather than needing to be revved.
It measures 1.69 m across. Unladen, it tips the scales at 1,997 kg.
Within the range, rated power spans from 31.4 to 55.8 hp; with 40.6 hp, the Farmall 40 sits in the mid-field. Directly alongside are the Farmall 35 with 35.5 hp below and the Farmall 45 with 45.6 hp above.
Technical data
Engine
| Power | 40.6 hp (29.8 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,000.9 cm³correct |
Dimensions and weights
| Width | 1,694.7correct |
|---|---|
| Wheelbase | 1,868.4correct |
| Unladen weight | 1,996.7 kgcorrect |
Drivetrain and chassis
| Gearbox type | hydrostatic transmissioncorrect |
|---|
Working data
| Pump flow | 56.4 l/mincorrect |
|---|---|
| Fuel tank capacity | 49.2 lcorrect |
Where this model stands
Power-to-weight ratio: 14.9 kW/t (30 kW / 2 t)
Power class: Universal (40–100 hp)
Stronger than 27% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Farmall 40 have?
The Case IH Farmall 40 delivers 40.6 hp.
How much does the Case IH Farmall 40 weigh?
The unladen weight is 1,997 kg.
What engine does the Case IH Farmall 40 have?
4 cylinders, 2,001 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
