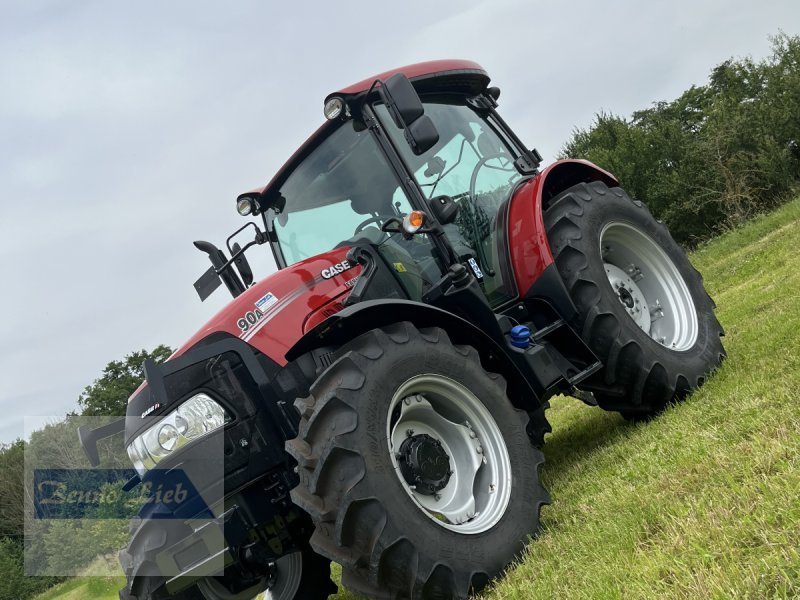

Case IH FARMALL 90A

Built: 2024-2025 · Series: Farmall

More machines from model year 2024

Source: https://www.technikboerse.com/marke/case-ih-198 technikboer

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the FARMALL 90A, Case IH offers a model from the Farmall series. Production: 2024-2025. The engine delivers 66 kW, has 4 cylinders, with a displacement of 3,595 cm³. The machine is 4,337 mm long and 2,550 mm wide. The unladen weight is 4,740 kg. The gross vehicle weight is 6,500 kg. The gearbox offers 12 gears. The Farmall series covers 122 models. Rated output within it ranges from 21 to 86 kW; the FARMALL 90A sits in the upper part of that range with 66 kW. Its immediate neighbours are the Farmall 85U below it with 63.4 kW and the Farmall 95 above it with 67 kW. Unladen weight within it ranges from 1,153.9 to 4,740 kg; here the FARMALL 90A sits at the top of that range with 4,740 kg. 1222 Case IH models across 76 series are on record.

Case IH Farmall – A, C and U: the compact utility class and what the letters mean

At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.

Read on 3 more paragraphs

The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.

In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.

Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.

Sources: SpecCodex register, model data: Case IH Farmall, Case IH Traktorenprogramm (manufacturer), Farmall (Wikipedia)

Technical data

Engine

Power66 kWcorrect
Cylinders4correct
Displacement3,595 cm³correct

Dimensions and weights

Length4,337 mmcorrect
Width2,550 mmcorrect
Unladen weight4,740 kgcorrect
Gross vehicle weight6,500 kgcorrect

Drivetrain and chassis

Gears12correct

Where this model stands

Power-to-weight ratio: 13.9 kW/t (66 kW / 4.7 t)

Power class: Universal (40–100 hp)

Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case IH FARMALL 90A have?

The Case IH FARMALL 90A delivers 66 kW.

How much does the Case IH FARMALL 90A weigh?

The unladen weight is 4,740 kg.

What is the gross vehicle weight of the Case IH FARMALL 90A?

6,500 kg.

What engine does the Case IH FARMALL 90A have?

4 cylinders, 3,595 cm³ displacement.

What are the dimensions of the Case IH FARMALL 90A?

4,337 mm × 2,550 mm.

When was the Case IH FARMALL 90A built?

Production years: 2024-2025.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
