Start › Tractors › Case IH › Farmall 95

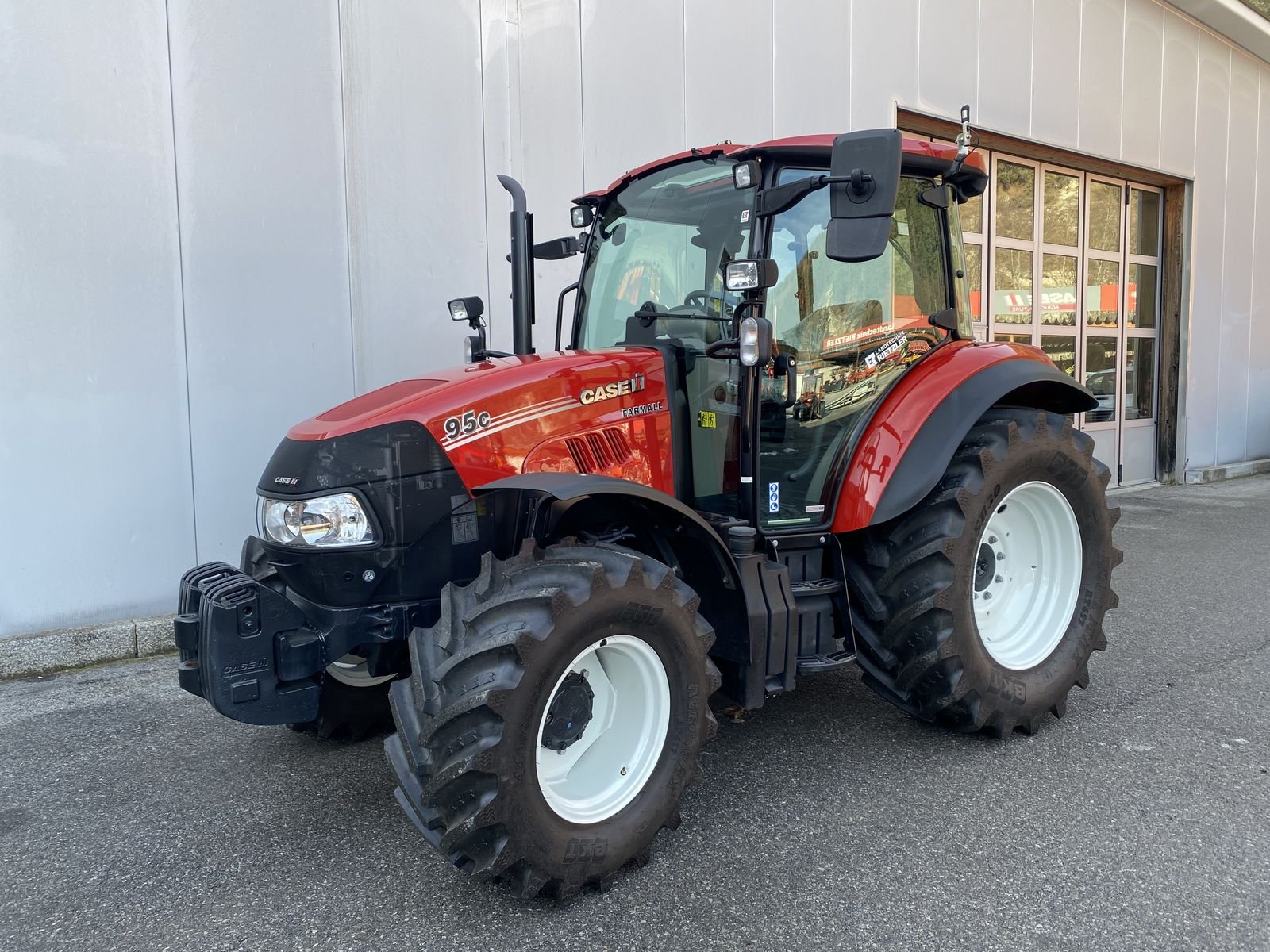

Case IH Farmall 95

Built: 2008-2008 · Series: Farmall

← Predecessor: JX95

More machines from model year 2008

Source: https://www.landwirt.com/detail/case-ih-farmall-95-c-6495412

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the Farmall 95, Case IH offers a model from the Farmall series. Production: 2008. The engine delivers 90 hp (67 kW), has 4 cylinders. The engine comes from FPT. Rated speed is 2,500 rpm. Lifting capacity is 2,279 kg. Transmission: mechanical gearbox shuttle. The engine is water-cooled. The model was built in Ankara, Turkey. The fuel is diesel. The gearbox offers 12 forward gears. There are also 12 reverse gears. The linkage is category II. Its predecessor was the Case IH JX95. The PTO runs at 540 ; 540/1000 (optional) rpm. The Farmall series covers 122 models. Rated output within it ranges from 28 to 95 hp; the Farmall 95 sits at the top of that range with 90 hp. Its immediate neighbours are the FARMALL 95U below it with 80 hp and the Farmall 95C above it with 95 hp. Lifting capacity within it ranges from 650 to 2,605 kg; here the Farmall 95 sits in the upper part of that range with 2,279 kg. 1222 Case IH models across 76 series are on record.

Case IH Farmall – A, C and U: the compact utility class and what the letters mean

At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.

Read on 3 more paragraphs

The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.

In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.

Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.

Sources: Kennwerte der Modelle Case IH Farmall, Case IH Traktorenprogramm (Hersteller), (Wikipedia)

Technical data

Engine

Engine makeFPTcorrect
Fueldieselcorrect
Power90 hp (67 kW)correct
Rated speed2,500 rpmcorrect
Cylinders4correct
Displacement274 cu incorrect
Bore4,094 incorrect
Stroke5,196 incorrect
Coolingwater-cooledcorrect

Dimensions and weights

Wheelbase94 in (2WD); 92 in (MFWD)correct
Unladen weight6, 107 lbs to 7, 320 lbscorrect

Drivetrain and chassis

Driverear-wheel driveWD/MFWDcorrect
Gearboxmechanical gearbox shuttlecorrect
Forward gears12correct
Reverse gears12correct
Clutchmechanical dry disccorrect

Working data

Lifting capacity2,279 kgcorrect
Lifting capacity5,025 lbs (2279,3 kg)correct
Fuel tank capacity23.8 galcorrect

Origin and approval

PlantAnkara, Turkeycorrect

Other data

Linkage categoryCat IIcorrect
PTO speed540; 540/1000 (optional)correct
PredecessorCase IH JX95correct

Frequently asked questions

How much power does the Case IH Farmall 95 have?

The Case IH Farmall 95 delivers 90 hp.

What engine does the Case IH Farmall 95 have?

4 cylinders, diesel.

How much does the rear linkage of the Case IH Farmall 95 lift?

The rear linkage lifts 2,279 kg.

When was the Case IH Farmall 95 built?

Production years: 2008.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
