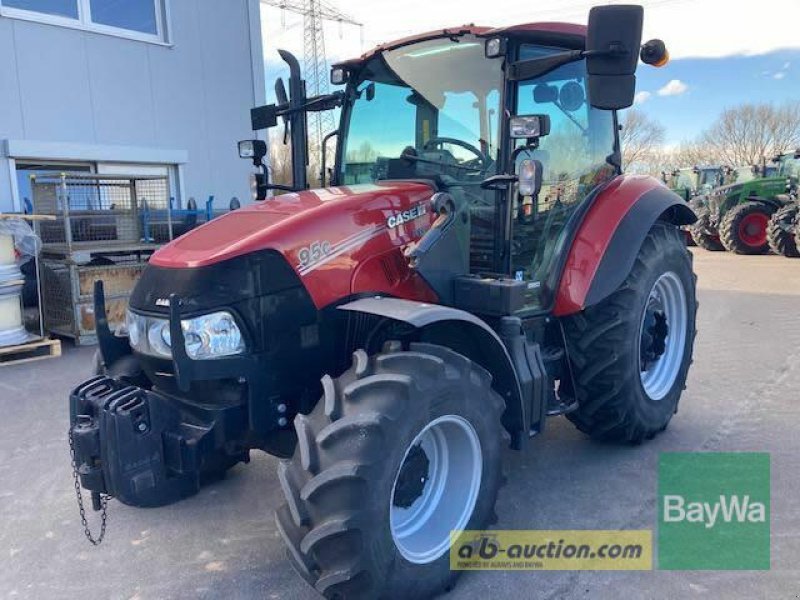

Case IH Farmall 95C (73 kW) – specifications
Built: 2008-2016 · Series: Farmall
Data for the version built 2008-2016 · Data origin: Official register · sources
More machines from model year 2008
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Farmall – A, C and U: the compact utility class and what the letters mean
At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.
Read on 3 more paragraphs
The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.
In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.
Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.
Sources: SpecCodex register, model data: Case IH Farmall, Case IH Traktorenprogramm (manufacturer), Farmall (Wikipedia)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| ● Farmall 95C | 2008-2016 | 73 | e13*2003/37*0290*01 | Official register |
| Farmall 95C | — | 70,8 | — | Directory data |
Technical data
Engine
| Engine make | FPTcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 95 hp (73 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,387 cm³ (274 cu in)correct |
| Bore | 4.094 in (104 mm)correct |
| Stroke | 5.197 in (132 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,298 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Height | 77.8 to 91.4 incorrect |
| Wheelbase | 86 in (2184.4 mm)correct |
| Unladen weight | 3,680 kg (6,614 lbs to 7,055 lbs)correct |
| Gross vehicle weight | 6,000 kgcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | mechanical gearbox shuttlecorrect |
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Clutch | dry disccorrect |
Working data
| Lifting capacity | 1,796 kgcorrect |
|---|---|
| Lifting capacity | 3960 lbs (1796.2 kg)correct |
| Fuel tank capacity | 23.2 galcorrect |
Origin and approval
| Plant | Jesi, Italycorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540; 540/1000 (optional)correct |
| Predecessor | Case IH JX1095Ccorrect |
Where this model stands
Power-to-weight ratio: 19.8 kW/t (73 kW / 3.7 t)
Power class: Universal (40–100 hp)
Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH Farmall 95C have?
The Case IH Farmall 95C delivers 95 hp.
How much does the Case IH Farmall 95C weigh?
The unladen weight is 3,680 kg.
What is the gross vehicle weight of the Case IH Farmall 95C?
6,000 kg.
What engine does the Case IH Farmall 95C have?
4 cylinders, 3,387 cm³ displacement, Diesel.
How much does the rear linkage of the Case IH Farmall 95C lift?
The rear linkage lifts 1,796 kg.
What are the dimensions of the Case IH Farmall 95C?
4,298 mm × 2,500 mm.
When was the Case IH Farmall 95C built?
Production years: 2008-2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 35 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
