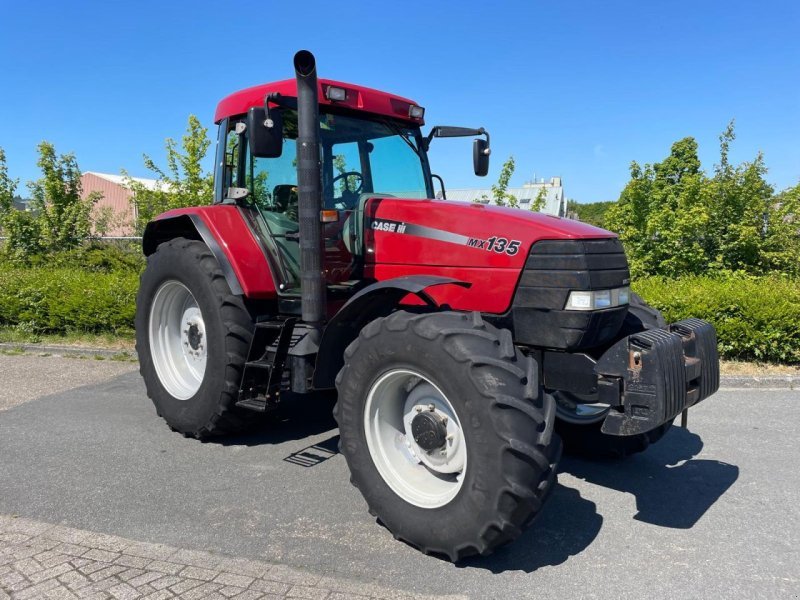

Case IH MX 135 MAXXUM – specifications
Built: 1997–2002 · Series: Maxxum MX-Baureihe
With the MX 135 MAXXUM, Case IH offers a model from the Maxxum MX series. Production: 1997–2002. The engine delivers 135 hp (99.3 kW), has 6 cylinders, with a displacement of 5,883 cm³. Rated speed is 2,200 rpm. The machine is 4,675 mm long, 2,360 mm wide and 2,970 mm high. The unladen weight is 6,305 kg. The wheelbase measures 2,700 mm. Ground clearance is 390 mm. Top speed is 30 km/h. Transmission: 16 V/12 R and 32 V/24 R. The engine is water-cooled. Tyres: front 420/70 R 24 AS, rear 520/70 R 38 AS. The fuel is diesel. Construction: unit construction (no separate frame). The Maxxum MX-Baureihe series covers 6 models. Rated output within it ranges from 100 to 166 hp; the MX 135 MAXXUM sits in the middle of that range with 135 hp. Its immediate neighbours are the MX 120 MAXXUM below it with 120 hp and the MX 150 MAXXUM above it with 150 hp. Unladen weight within it ranges from 6,265 to 7,370 kg; here the MX 135 MAXXUM sits at the bottom of that range with 6,305 kg. 1222 Case IH models across 76 series are on record.
Data for the version built 1997–2002 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Maxxum MX (1997–2002) – the six-cylinder mid-range from Racine and Doncaster: MX 100 to MX 170, the number as hp class, Case six-cylinder of 5.9 litres in all models, powershift, 74 to 122 kW, 6.3 to 7.4 t
The Maxxum MX was the second generation of the Maxxum range with which Case IH had repositioned the mid-range between 100 and 170 hp in 1990 – the MX of 1997 brought the new cab, the 16-speed powershift and the electronics with which Case IH took on the John Deere 6000 and New Holland TM; they were built in Racine, Wisconsin, for North America and in Doncaster, England, for Europe. The type logic: MX marks the generation, the number the hp class – MX 100 about 100 hp, MX 120 120 hp, MX 135 135 hp, MX 170 about 170 hp – Maxxum the range name. The engine in all models is the Case six-cylinder 6T-590 of 5.9 litres at 2,200 rpm – a Cummins B engine from the Consolidated Diesel joint venture – rated in steps to the six power classes; the register values of 5,883 cm³ in all versions show the one engine family.
Read on 3 more paragraphs
The register lists 6 versions with 73.5 to 122.1 kW from the six-cylinder of 5,883 cm³, unladen weights from 6,265 to 7,370 kg, a gross weight up to 9,500 kg, lengths from 4,675 to 5,060 mm, widths from 2,360 to 2,500 mm and heights from 2,970 to 3,026 mm.
The MX were the last independent Case IH mid-range tractors before the merger into CNH; in 2002 the MXM from Basildon followed as twins of the New Holland TM and the MXU as twins of the Steyr Profi, with which the range passed into the group's modular system.
On used tractors, operating hours, engine and injection pump, powershift (clutch packs, electronics, calibration), hydraulics and cab electronics, rust on cab and mudguards count; parts run through CNH and Cummins.
Sources: SpecCodex register, model data: Case IH Maxxum MX, Case IH (CNH, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 135 hp (99.3 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,883 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,675 mmcorrect |
|---|---|
| Width | 2,360 mmcorrect |
| Height | 2,970 mmcorrect |
| Wheelbase | 2,700 mmcorrect |
| Ground clearance | 390 mmcorrect |
| Unladen weight | 6,305 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/12 R and 32 V/24 Rcorrect |
| Front tyres | 420/70 R 24 AScorrect |
| Rear tyres | 520/70 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 15.7 kW/t (99 kW / 6.3 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
