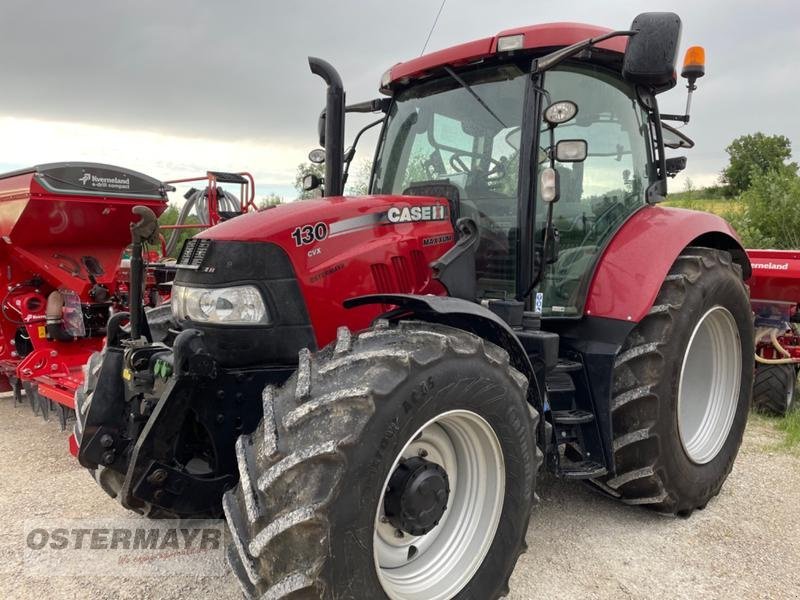

Case IH MAXXUM 130 CVT (2013-2014) 4WD – specifications

Series: Maxxum

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH Maxxum 130 CVT is a tractor from the Maxxum series, produced with all-wheel drive between 2013 and 2014. It is positioned as a mid-range tractor below the Puma series and utilizes an engine manufactured by Case IH FPT. The production period of this specific variant falls within the second generation of the Maxxum line, which was introduced in 2007 as the successor to the earlier 5100 series.

The machine is powered by a four-cylinder engine with a displacement of 4,501.5 cm³, equipped with a turbocharger and intercooler. This configuration provides high torque at low engine speeds, which is particularly advantageous for heavy tillage operations. The transmission is designed as a continuously variable transmission with a dual clutch, enabling uninterrupted power flow. The lift capacity of 3,039 kg allows for the use of heavy rear-mounted implements, while the width of 2,489.2 mm affects road transit and work in wider field rows.

Within the recorded Maxxum models, the lift capacity of this tractor is at the lower end of the range from 3,406 to 7,864 kg. The engine power of 66 to 170 kW across the entire series indicates that the 130 model is situated in the mid-power range. The PTO power of the series ranges from 90 to 120 hp, with the specific design of the 130 CVT focused on continuous speed adjustment. These characteristics make it suitable for tasks requiring precise speed control and high traction under variable load conditions.

Case IH Maxxum – One Name for Two Tractor Generations Since 1989, with Four- and Six-Cylinder Engines, 66 to 170 kW and Operating Weight from 4,573.6 to 7,980 kg

Case IH first used the Maxxum name in 1989 for its 5100 series, then revived it in 2007 for a second generation positioned as a mid-range model below the Puma line. These two eras explain the wide spread of the register data: four- and six-cylinder engines with displacement from 3,920 to 7,480 cm³, output from 66 to 170 kW, and PTO ratings from 90 to 120 hp among the recorded models.

Read on 3 more paragraphs

Recorded operating weight ranges from 4,573.6 to 7,980 kg, wheelbase from 2,345 to 2,664 mm, and hydraulic lift capacity from 3,406 to 7,864 kg. Top speed spans from 25 km/h on older mechanical versions to 50 km/h on newer CVX-equipped variants.

For buyers, identifying the generation matters most: the 1990s 5100 series is a fundamentally different tractor from the Maxxum built since 2007, which in the current line-up sits above the Farmall range and below the Puma.

With rated outputs from 66 to 170 kW, the Maxxum spans ISO 730 Category II to III for the rear three-point hitch across both generations, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, whichever generation of Maxxum happens to be involved.

Sources: SpecCodex register, model data: Case IH Maxxum, Case IH

Technical data

Engine

Engine makeCase IH FPTcorrect
Engine modelMaxxum 130 CVT (2013-2014)correct
Cylinders4correct
Displacement4,501.5 cm³correct
AspirationTurbocharged with air-to-air intercoolercorrect

Dimensions and weights

Width2,489.2 mmcorrect

Drivetrain and chassis

Gearbox typeContinuously Variable with double clutchcorrect
Forward gears2correct
Reverse gears1correct

Working data

Lifting capacity3,039 kgcorrect

Frequently asked questions

What engine does the Case IH MAXXUM 130 CVT (2013-2014) have?

4 cylinders, 4,502 cm³ displacement.

How much does the rear linkage of the Case IH MAXXUM 130 CVT (2013-2014) lift?

The rear linkage lifts 3,039 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
