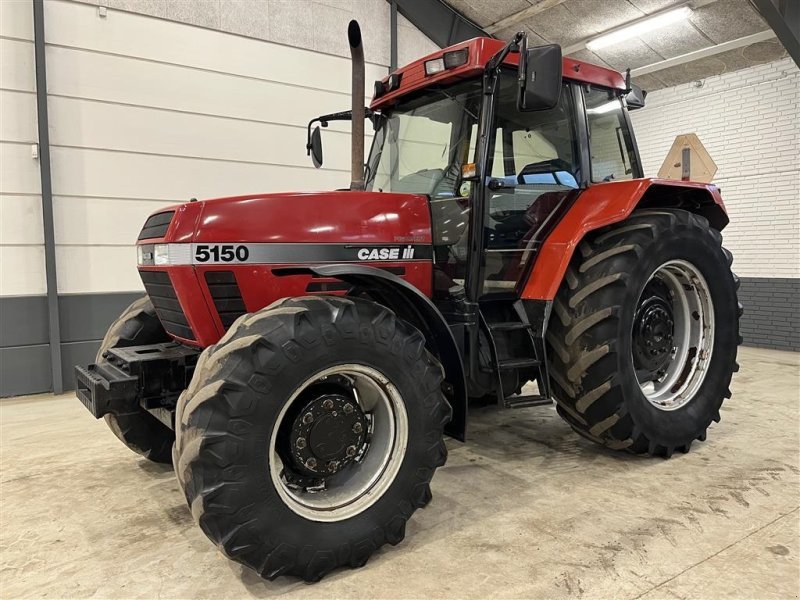

Case IH 5150 MAXXUM
Built: 06/1992–06/1997 · Series: Maxxum
More machines from model year 1992
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Maxxum – One Name for Two Tractor Generations Since 1989, with Four- and Six-Cylinder Engines, 66 to 170 kW and Operating Weight from 4,573.6 to 7,980 kg
Case IH first used the Maxxum name in 1989 for its 5100 series, then revived it in 2007 for a second generation positioned as a mid-range model below the Puma line. These two eras explain the wide spread of the register data: four- and six-cylinder engines with displacement from 3,920 to 7,480 cm³, output from 66 to 170 kW, and PTO ratings from 90 to 120 hp among the recorded models.
Read on 3 more paragraphs
Recorded operating weight ranges from 4,573.6 to 7,980 kg, wheelbase from 2,345 to 2,664 mm, and hydraulic lift capacity from 3,406 to 7,864 kg. Top speed spans from 25 km/h on older mechanical versions to 50 km/h on newer CVX-equipped variants.
For buyers, identifying the generation matters most: the 1990s 5100 series is a fundamentally different tractor from the Maxxum built since 2007, which in the current line-up sits above the Farmall range and below the Puma.
With rated outputs from 66 to 170 kW, the Maxxum spans ISO 730 Category II to III for the rear three-point hitch across both generations, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, whichever generation of Maxxum happens to be involved.
Sources: SpecCodex register, model data: Case IH Maxxum, Case IH
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 125 hp (91.9 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,883 cm³correct |
| Bore | 102 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,453 mmcorrect |
|---|---|
| Width | 2,204 mmcorrect |
| Height | 2,765 mmcorrect |
| Wheelbase | 2,585 mmcorrect |
| Ground clearance | 431 mmcorrect |
| Unladen weight | 5,360 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/12 R or 24 V/20 Rcorrect |
| Front tyres | 420/70 R 24 AScorrect |
| Rear tyres | 520/70 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 15,091correct |
Where this model stands
Power-to-weight ratio: 17.1 kW/t (92 kW / 5.4 t)
Power class: Large (100–180 hp)
Stronger than 76% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH 5150 MAXXUM have?
The Case IH 5150 MAXXUM delivers 125 hp.
How much does the Case IH 5150 MAXXUM weigh?
The unladen weight is 5,360 kg.
What engine does the Case IH 5150 MAXXUM have?
6 cylinders, 5,883 cm³ displacement, Diesel.
How fast does the Case IH 5150 MAXXUM go?
Top speed is 30 km/h.
What are the dimensions of the Case IH 5150 MAXXUM?
4,453 mm × 2,204 mm × 2,765 mm.
When was the Case IH 5150 MAXXUM built?
Production years: 06/1992–06/1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
