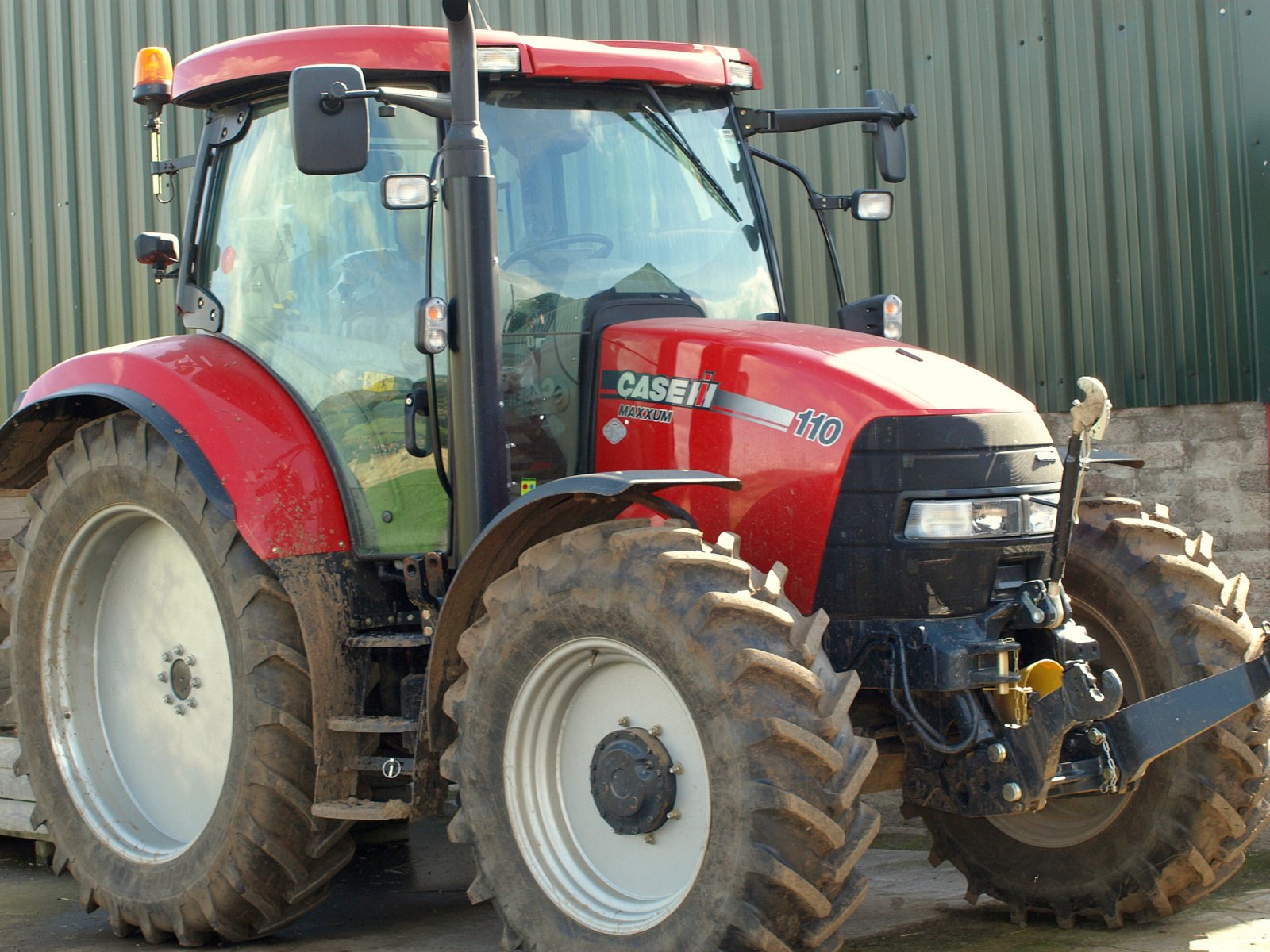

Case IH MAXXUM 110 (5290 kg)
Built: 2007-2017 · Series: Maxxum
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Maxxum – One Name for Two Tractor Generations Since 1989, with Four- and Six-Cylinder Engines, 66 to 170 kW and Operating Weight from 4,573.6 to 7,980 kg
Case IH first used the Maxxum name in 1989 for its 5100 series, then revived it in 2007 for a second generation positioned as a mid-range model below the Puma line. These two eras explain the wide spread of the register data: four- and six-cylinder engines with displacement from 3,920 to 7,480 cm³, output from 66 to 170 kW, and PTO ratings from 90 to 120 hp among the recorded models.
Read on 3 more paragraphs
Recorded operating weight ranges from 4,573.6 to 7,980 kg, wheelbase from 2,345 to 2,664 mm, and hydraulic lift capacity from 3,406 to 7,864 kg. Top speed spans from 25 km/h on older mechanical versions to 50 km/h on newer CVX-equipped variants.
For buyers, identifying the generation matters most: the 1990s 5100 series is a fundamentally different tractor from the Maxxum built since 2007, which in the current line-up sits above the Farmall range and below the Puma.
With rated outputs from 66 to 170 kW, the Maxxum spans ISO 730 Category II to III for the rear three-point hitch across both generations, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, whichever generation of Maxxum happens to be involved.
Sources: SpecCodex register, model data: Case IH Maxxum, Case IH
Technical data
Engine
| Engine make | Case IHcorrect |
|---|---|
| Power | 110 hp (82 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 498 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,485 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,714 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Height | 2,200 mmcorrect |
| Wheelbase | 2,402 mmcorrect |
| Unladen weight | 5,290 kgcorrect |
| Gross vehicle weight | 9,000 kgcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Top speed | 50 km/hcorrect |
Origin and approval
| Plant | Englandcorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.5 kW/t (82 kW / 5.3 t)
Power class: Large (100–180 hp)
Stronger than 71% of the tractors in the register — out of 15,661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH MAXXUM 110 have?
The Case IH MAXXUM 110 delivers 110 hp.
How much does the Case IH MAXXUM 110 weigh?
The unladen weight is 5,290 kg.
What is the gross vehicle weight of the Case IH MAXXUM 110?
9,000 kg.
What engine does the Case IH MAXXUM 110 have?
4 cylinders, 4,485 cm³ displacement.
How fast does the Case IH MAXXUM 110 go?
Top speed is 50 km/h.
What are the dimensions of the Case IH MAXXUM 110?
4,714 mm × 2,550 mm × 2,200 mm.
When was the Case IH MAXXUM 110 built?
Production years: 2007-2017.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
