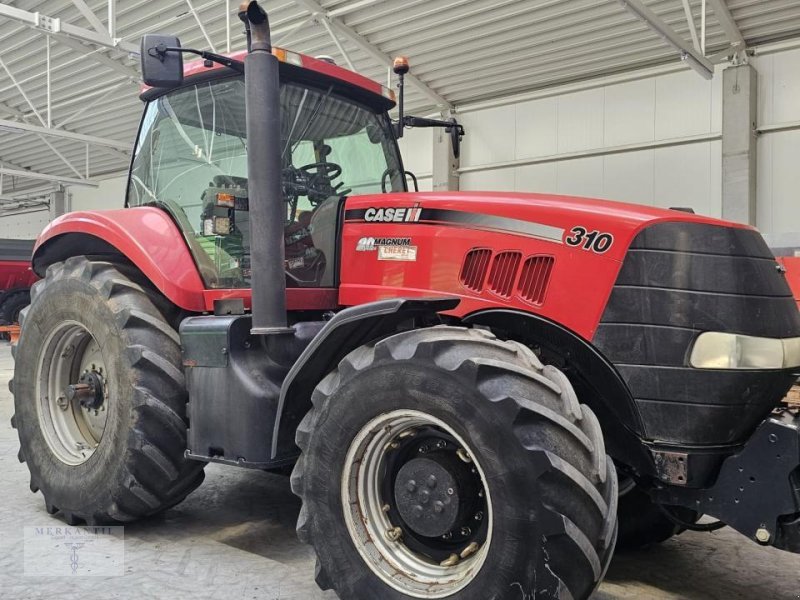

Case IH MAGNUM 310 ROWTRAC POWERSHIFT 4WD – specifications
Series: MAGNUM
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Magnum 310 Rowtrac Powershift is a heavy-duty field tractor from the Magnum series, which has served as the standard model for large-scale operations since its introduction. As an all-wheel-drive variant equipped with Rowtrac tracks, it is designed for maximum traction and low ground pressure under high drawbar loads. This machine represents the upper end of the series' performance spectrum and is aimed at professional farmers working with heavy implements in large-scale crop production.
The tractor is powered by a six-cylinder diesel engine with a displacement of 8,701.5 cm³, turbocharged by an eVGT turbocharger with intercooling. This design ensures that high torque is available for heavy draft work even at low engine speeds. The powershift transmission offers 18 forward and 4 reverse gears, enabling rapid speed adjustments without clutch engagement and supporting workflow during plowing or cultivating. With a lift capacity of 9,026 kg, the tractor can safely handle heavy rear-mounted implements such as trailers or balers. The wheelbase of 3,151.6 mm provides stability under high loads, while the cab height of 3,450.1 mm enhances visibility in the field.
Within the Magnum series, the 310 occupies a top position, as the model number reflects the power rating and all models are based on the same basic platform. It stands at the upper end of the available power levels in this series. Compared to smaller models in the range, it offers the highest drawbar pull and the greatest lifting capacity. This configuration is particularly suitable for tasks requiring maximum power transfer to the ground and high implement loads, such as the use of large plows or seeders in demanding soil conditions.
Case IH Magnum 7100 and 7200 — the big six, built 1988 to 1999, 110 to 296 kW and Operating Weight from 7,525 to 13,426.3 kg
The Magnum was presented in 1987 as successor to the International 50 in the standard tractor role; series production began in 1988. The first range carried the numbers 7110, 7120, 7130 and 7140 — four large tractors, later joined by a fifth model.
Read on 4 more paragraphs
What they share is the engine: a turbocharged six-cylinder of 8.3 litres. Rated power across the range ran from 155 to 230 hp, with peak output reaching up to 246 or 264 hp at the top. The rising number therefore maps the power step, not the machine size — all models share the same base tractor.
In 1997 the 7100 range became the 7200, again with five models, the 7250 closing it at the top. The Pro designation marks the revised version. Later came the MX Magnum range, with which Case IH carried the visually ageing concept forward.
For the used market this means a 7120 and a 7220 are closely related but roughly a decade apart. Comparing two offers, do not look at the number alone but at year and version — the figure describes a position in the range, not the age of the machine.
With rated outputs of up to 296 kW, the most powerful Magnum models reached ISO 730 Category IV for the rear three-point hitch, while the smaller versions stayed within Category III; a standard dual-speed power take-off at 540 and 1,000 revolutions per minute served heavy tillage implements.
Sources: SpecCodex register, model data: Case IH Magnum 7100/7200, Case IH
Technical data
Engine
| Engine make | Case IH FPTcorrect |
|---|---|
| Engine model | Magnum 310 Rowtrac Powershiftcorrect |
| Cylinders | 6correct |
| Displacement | 8,701.5 cm³correct |
| Aspiration | eVGT Turbocharged, Aftercooledcorrect |
Dimensions and weights
| Wheelbase | 3,151.6 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | Full powershift transmissioncorrect |
|---|---|
| Forward gears | 18correct |
| Reverse gears | 4correct |
Working data
| Lifting capacity | 9,026 kgcorrect |
|---|
Other data
| Cab height | 3,450.1 mmcorrect |
|---|
Frequently asked questions
What engine does the Case IH MAGNUM 310 ROWTRAC POWERSHIFT have?
6 cylinders, 8,702 cm³ displacement.
How much does the rear linkage of the Case IH MAGNUM 310 ROWTRAC POWERSHIFT lift?
The rear linkage lifts 9,026 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
