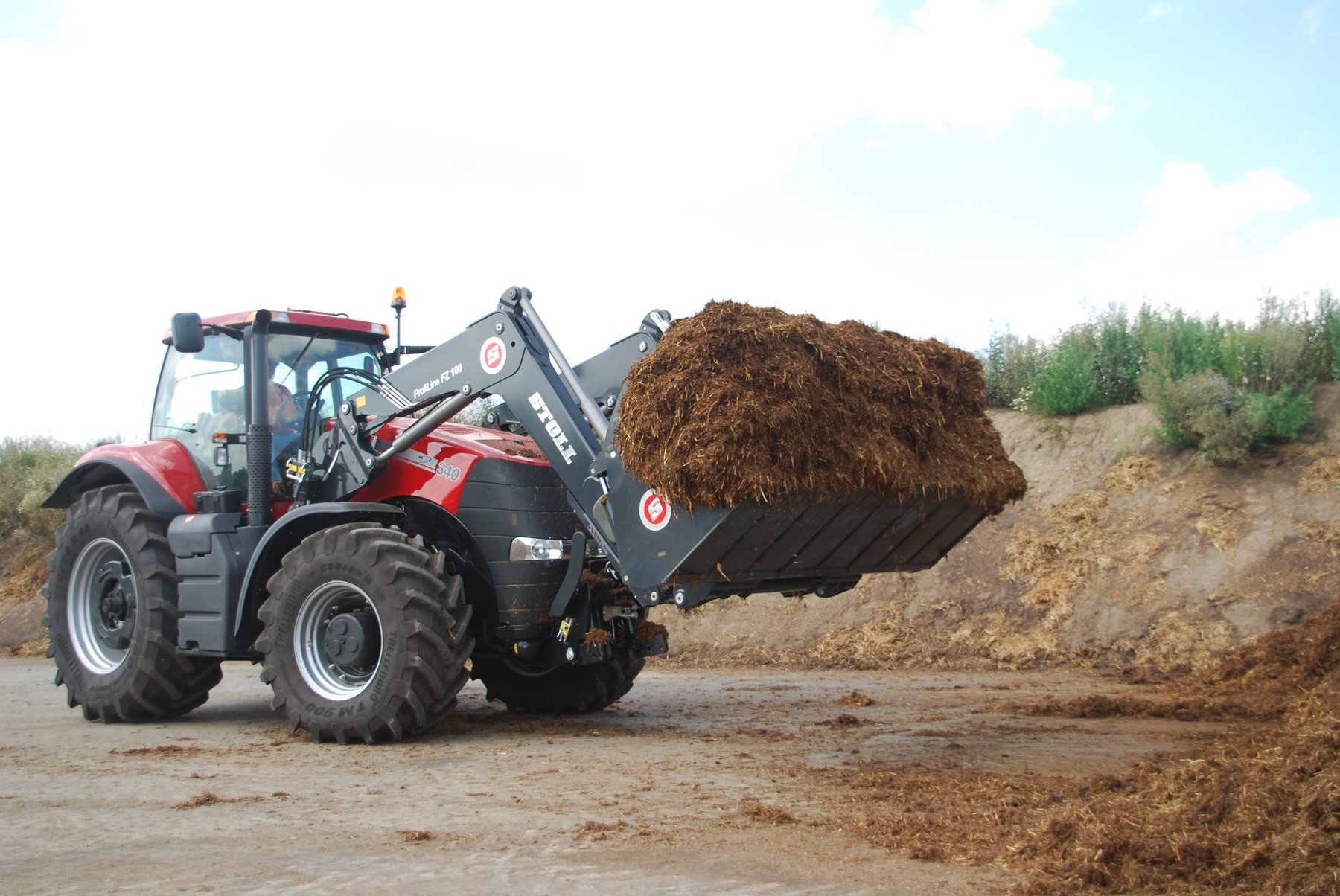

Case IH Magnum 305 4WD
Series: MAGNUM
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH Magnum 7100 and 7200 — the big six
The Magnum was presented in 1987 as successor to the International 50 in the standard tractor role; series production began in 1988. The first range carried the numbers 7110, 7120, 7130 and 7140 — four large tractors, later joined by a fifth model.
Read on 3 more paragraphs
What they share is the engine: a turbocharged six-cylinder of 8.3 litres. Rated power across the range ran from 155 to 230 hp, with peak output reaching up to 246 or 264 hp at the top. The rising number therefore maps the power step, not the machine size — all models share the same base tractor.
In 1997 the 7100 range became the 7200, again with five models, the 7250 closing it at the top. The Pro designation marks the revised version. Later came the MX Magnum range, with which Case IH carried the visually ageing concept forward.
For the used market this means a 7120 and a 7220 are closely related but roughly a decade apart. Comparing two offers, do not look at the number alone but at year and version — the figure describes a position in the range, not the age of the machine.
Sources: tractorbook, Landwirt.com, agrarheute
Technical data
Engine
| Rated speed | 2,000 rpmcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 8,898.2 cm³correct |
| Aspiration | Wastegate Turbocharged / Air-to-Aircorrect |
| Coolant capacity | 24.6 lcorrect |
| Engine oil capacity | 21.2 lcorrect |
Dimensions and weights
| Unladen weight | 14,741.8 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | 18-speed full powershift transmissioncorrect |
|---|---|
| Forward gears | 18correct |
| Reverse gears | 4correct |
| Tyre size | Front 420/90R30, Rear 520/85R42correct |
Working data
| Pump flow | 166.6 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 172.2 lcorrect |
| Fuel tank capacity | 682.1 lcorrect |
Other data
| Height | 3,267.5correct |
|---|
Frequently asked questions
How much does the Case IH Magnum 305 weigh?
The unladen weight is 14,742 kg.
What engine does the Case IH Magnum 305 have?
6 cylinders, 8,898 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
