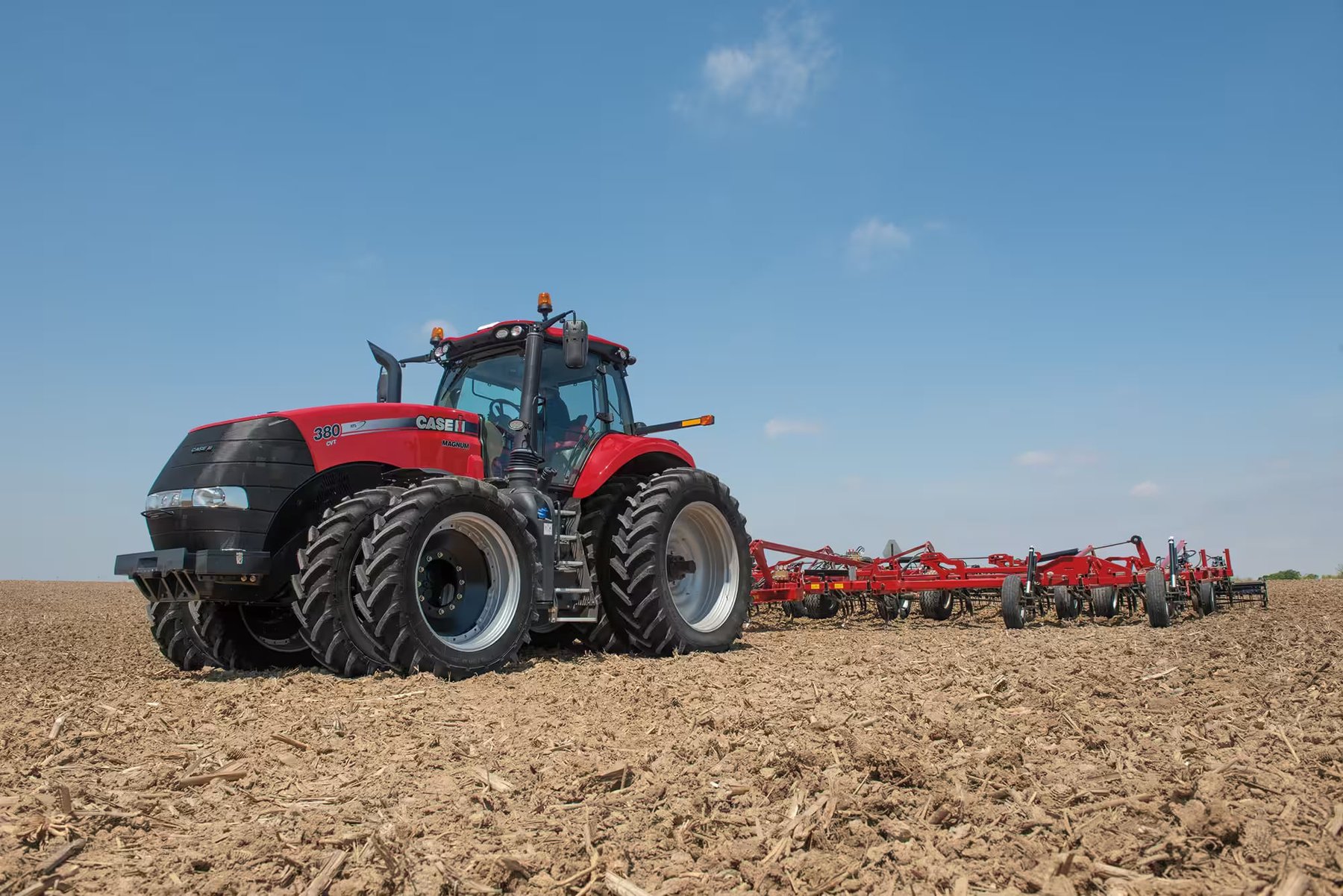

Case IH MAGNUM 250 WHEELED 4WD – specifications

Series: MAGNUM

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MAGNUM 250 WHEELED is a tractor from the MAGNUM series by Case IH. This model belongs to the category of large four-wheel-drive agricultural tractors. The MAGNUM series was introduced in 1987, replacing the International 50 as the standard tractor, with series production beginning in 1988. The basic design of this series is based on a common platform that remains identical across various power levels. The MAGNUM 250 WHEELED represents a high power level within this family, characterized by its robust construction and specific engine configuration.

The machine is powered by a six-cylinder engine with a displacement of 8,701.5 cm³, supplied by Case IH FPT. Turbocharging is achieved via a wastegate turbocharger with air-to-air cooling, ensuring high torque at low engine speeds. The powershift transmission offers 19 forward gears and 4 reverse gears, allowing for flexible adaptation to different working speeds and soil conditions. A lifting capacity of 5,850 kg permits the use of heavy mounted implements such as large plows or seed drills. With a width of 3,048 mm and a wheelbase of 3,051 mm, the tractor falls within the range of large field machinery, while the cab height of 3,410.2 mm influences transport dimensions.

Within the MAGNUM series, the MAGNUM 250 WHEELED is classified as a high-power model. The series includes several models that differ primarily in their power level, while the base machine remains identical. The MAGNUM 250 WHEELED is positioned at the upper end of the power spectrum for this specific model line. Tractors of this size are typically suitable for intensive tillage, pulling large mounted implements, and use in transport logistics on larger areas. The design is engineered to handle high loads while providing stable driving characteristics.

Case IH Magnum 7100 and 7200 — the big six, built 1988 to 1999, 110 to 296 kW and Operating Weight from 7,525 to 13,426.3 kg

The Magnum was presented in 1987 as successor to the International 50 in the standard tractor role; series production began in 1988. The first range carried the numbers 7110, 7120, 7130 and 7140 — four large tractors, later joined by a fifth model.

Read on 4 more paragraphs

What they share is the engine: a turbocharged six-cylinder of 8.3 litres. Rated power across the range ran from 155 to 230 hp, with peak output reaching up to 246 or 264 hp at the top. The rising number therefore maps the power step, not the machine size — all models share the same base tractor.

In 1997 the 7100 range became the 7200, again with five models, the 7250 closing it at the top. The Pro designation marks the revised version. Later came the MX Magnum range, with which Case IH carried the visually ageing concept forward.

For the used market this means a 7120 and a 7220 are closely related but roughly a decade apart. Comparing two offers, do not look at the number alone but at year and version — the figure describes a position in the range, not the age of the machine.

With rated outputs of up to 296 kW, the most powerful Magnum models reached ISO 730 Category IV for the rear three-point hitch, while the smaller versions stayed within Category III; a standard dual-speed power take-off at 540 and 1,000 revolutions per minute served heavy tillage implements.

Sources: SpecCodex register, model data: Case IH Magnum 7100/7200, Case IH

Technical data

Engine

Engine makeCase IH FPTcorrect
Engine modelMagnum 250 Wheeledcorrect
Cylinders6correct
Displacement8,701.5 cm³correct
AspirationWastegate Turbocharged w/air to air intercoolercorrect

Dimensions and weights

Width3,048 mmcorrect
Wheelbase3,051 mmcorrect

Drivetrain and chassis

Gearbox typeFull powershift transmissioncorrect
Forward gears19correct
Reverse gears4correct

Working data

Lifting capacity5,850 kgcorrect

Other data

Cab height3,410.2 mmcorrect

Frequently asked questions

What engine does the Case IH MAGNUM 250 WHEELED have?

The Case IH MAGNUM 250 WHEELED has 6 cylinders and 8,701.5 cm³ displacement.

How much does the rear linkage of the Case IH MAGNUM 250 WHEELED lift?

The rear linkage of the Case IH MAGNUM 250 WHEELED lifts 5,850 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
