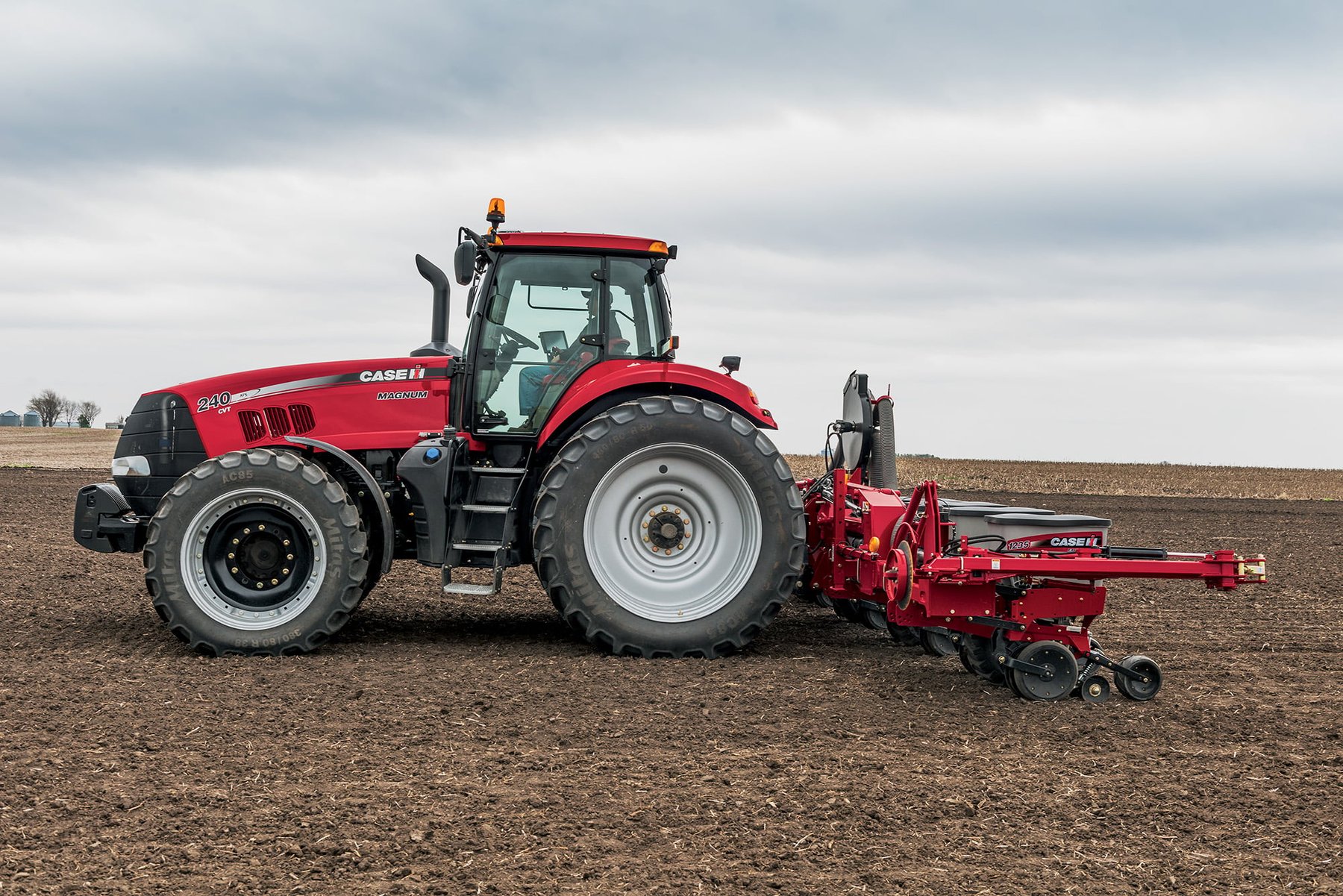

Case IH MAGNUM 240 WHEELED 4WD – specifications
Series: MAGNUM
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Magnum 240 Wheeled is a heavy tractor from the Magnum series, which has served as the standard model for large-scale operations since its introduction. As a four-wheel-drive variant with four wheels, this tractor is positioned in the upper power range of the series. The design is based on a common base frame that remains identical across the entire model range, while the power levels are defined by the engine specifications.
The tractor is powered by a six-cylinder engine with a displacement of 6,700.7 cm³, equipped with a wastegate turbocharger and charge-air cooling. This technology ensures high torque at low engine speeds, which is crucial when pulling heavy implements or plowing in heavy soils. The continuously variable transmission with four forward and two reverse gears allows for precise speed adjustment to match the respective working speed without interruption of traction. The lifting capacity of 6,170 kg permits the use of heavy rear-mounted implements, while the width of 3,020.1 mm and the cab height of 3,265.2 mm determine the transport dimensions on public roads.
Within the series, the Magnum 240 Wheeled represents the highest power level of the current generation. It follows the underlying models with lower engine output and constitutes the technical maximum of the available drive configurations. The common base machine for all models in the series ensures a uniform spare parts supply and maintenance structure, with the power grading primarily achieved through engine parameters.
Case IH Magnum 7100 and 7200 — the big six, built 1988 to 1999, 110 to 296 kW and Operating Weight from 7,525 to 13,426.3 kg
The Magnum was presented in 1987 as successor to the International 50 in the standard tractor role; series production began in 1988. The first range carried the numbers 7110, 7120, 7130 and 7140 — four large tractors, later joined by a fifth model.
Read on 4 more paragraphs
What they share is the engine: a turbocharged six-cylinder of 8.3 litres. Rated power across the range ran from 155 to 230 hp, with peak output reaching up to 246 or 264 hp at the top. The rising number therefore maps the power step, not the machine size — all models share the same base tractor.
In 1997 the 7100 range became the 7200, again with five models, the 7250 closing it at the top. The Pro designation marks the revised version. Later came the MX Magnum range, with which Case IH carried the visually ageing concept forward.
For the used market this means a 7120 and a 7220 are closely related but roughly a decade apart. Comparing two offers, do not look at the number alone but at year and version — the figure describes a position in the range, not the age of the machine.
With rated outputs of up to 296 kW, the most powerful Magnum models reached ISO 730 Category IV for the rear three-point hitch, while the smaller versions stayed within Category III; a standard dual-speed power take-off at 540 and 1,000 revolutions per minute served heavy tillage implements.
Sources: SpecCodex register, model data: Case IH Magnum 7100/7200, Case IH
Technical data
Engine
| Engine make | Case IH FPTcorrect |
|---|---|
| Engine model | Magnum 240 Wheeledcorrect |
| Cylinders | 6correct |
| Displacement | 6,700.7 cm³correct |
| Aspiration | Wastegate Turbocharged w/air to air intercoolercorrect |
Dimensions and weights
| Width | 3,020.1 mmcorrect |
|---|---|
| Wheelbase | 3,002.3 mmcorrect |
Drivetrain and chassis
| Gearbox type | Continuously variablecorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 2correct |
Working data
| Lifting capacity | 6,170 kgcorrect |
|---|
Other data
| Cab height | 3,265.2 mmcorrect |
|---|
Frequently asked questions
What engine does the Case IH MAGNUM 240 WHEELED have?
6 cylinders, 6,701 cm³ displacement.
How much does the rear linkage of the Case IH MAGNUM 240 WHEELED lift?
The rear linkage lifts 6,170 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
