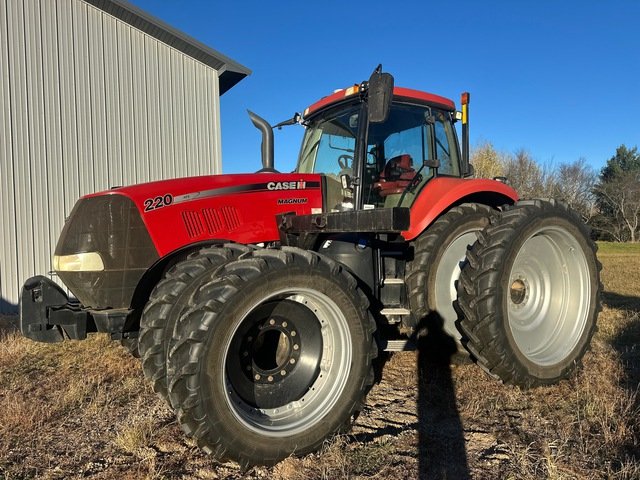

Case IH MAGNUM 220 WHEELED 4WD – specifications

Series: MAGNUM

Build year not documented · Data origin: Directory data · sources

Source: govplanet.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Case IH Magnum 220 Wheeled is a tractor from the Magnum series, which was introduced in 1987 and entered series production in 1988. As a model of the 7100 series, it represents the 220 performance level within a group of four large tractors that replaced the International 50. The series is characterized by a common base machine, with the ascending model number reflecting the performance level.

The tractor is powered by a six-cylinder engine with a displacement of 6,700.7 cm³, which is turbocharged by a wastegate turbocharger with air-to-air cooling. The powershift transmission offers 19 forward and 6 reverse gears, enabling precise speed adaptation to changing field conditions. The lifting capacity of 6,170 kg allows for the use of heavy mounted implements and rear-mounted machinery. With a width of 3,020.1 mm and a wheelbase of 3,002.3 mm, the tractor operates within a range that ensures stability while maintaining an acceptable road width. The cab height of 3,206.2 mm defines the vehicle's external dimensions.

Within the Magnum series of the 7100 series, the Magnum 220 Wheeled occupies the position of the most powerful model. The rated power of the series ranged from 155 to 230 hp, with top models reaching a maximum power of up to 246 or 264 hp. All models of this first generation share the six-cylinder turbocharged engine with 8.3 liters of displacement as a common technical feature. The ascending numbering of the models 7110, 7120, 7130, and 7140 correlates directly with the performance grading, not with the physical size of the tractor.

Case IH Magnum 7100 and 7200 — the big six, built 1988 to 1999, 110 to 296 kW and Operating Weight from 7,525 to 13,426.3 kg

The Magnum was presented in 1987 as successor to the International 50 in the standard tractor role; series production began in 1988. The first range carried the numbers 7110, 7120, 7130 and 7140 — four large tractors, later joined by a fifth model.

Read on 4 more paragraphs

What they share is the engine: a turbocharged six-cylinder of 8.3 litres. Rated power across the range ran from 155 to 230 hp, with peak output reaching up to 246 or 264 hp at the top. The rising number therefore maps the power step, not the machine size — all models share the same base tractor.

In 1997 the 7100 range became the 7200, again with five models, the 7250 closing it at the top. The Pro designation marks the revised version. Later came the MX Magnum range, with which Case IH carried the visually ageing concept forward.

For the used market this means a 7120 and a 7220 are closely related but roughly a decade apart. Comparing two offers, do not look at the number alone but at year and version — the figure describes a position in the range, not the age of the machine.

With rated outputs of up to 296 kW, the most powerful Magnum models reached ISO 730 Category IV for the rear three-point hitch, while the smaller versions stayed within Category III; a standard dual-speed power take-off at 540 and 1,000 revolutions per minute served heavy tillage implements.

Sources: SpecCodex register, model data: Case IH Magnum 7100/7200, Case IH

Technical data

Engine

Engine makeCase IH FPTcorrect
Engine modelMagnum 220 Wheeledcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
AspirationWastegate Turbocharged w/air to air intercoolercorrect

Dimensions and weights

Width3,020.1 mmcorrect
Wheelbase3,002.3 mmcorrect

Drivetrain and chassis

Gearbox typeFull powershift transmissioncorrect
Forward gears19correct
Reverse gears6correct

Working data

Lifting capacity6,170 kgcorrect

Other data

Cab height3,206.2 mmcorrect

Frequently asked questions

What engine does the Case IH MAGNUM 220 WHEELED have?

6 cylinders, 6,701 cm³ displacement.

How much does the rear linkage of the Case IH MAGNUM 220 WHEELED lift?

The rear linkage lifts 6,170 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
