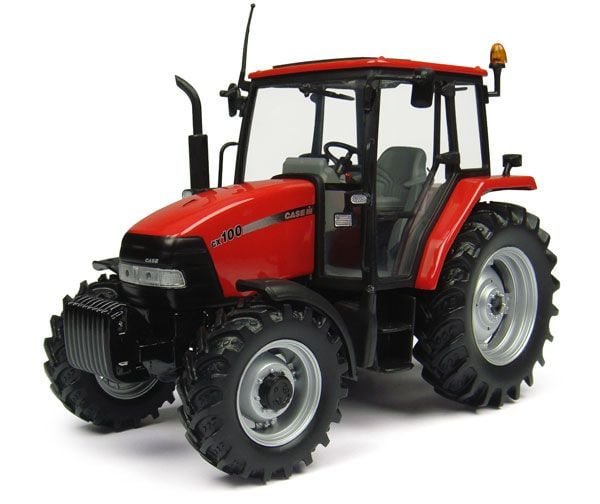

Case IH CX 100
Built: 1998–2000 · Series: CX-Baureihe
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH CX series (1998–2002) – the utility tractors from Doncaster and Neuss: CX 50 to CX 100, the number as hp class, DT for four-wheel drive, Perkins and Case three- and four-cylinders of 2.7 to 4.2 litres
The CX range was Case IH's simple utility tractor of the late 1990s – the successor to the 3200 and 4200 ranges, built at first in Doncaster, England, and Neuss on the Rhine, the former IH plants, and after the merger into CNH in 1999 partly in Racine for North America. The type logic: CX marks the range, the number the hp class – CX 50 about 50 hp, CX 70 70 hp, CX 90 90 hp, CX 100 about 100 hp – DT four-wheel drive (the designation from the Italian doppia trazione that CNH took over from Fiat). The engines are three- and four-cylinders from Perkins (1004.4 of 4.0 litres) and from Case IH's own production in Neuss of 2.7 to 4.2 litres at 2,200 to 2,250 rpm, with mechanical injection pump; the transmission is the synchromesh gearbox with shuttle, the cab the plain version without electronics.
Read on 3 more paragraphs
The register lists 6 versions with 36.8 to 75 kW from three- and four-cylinders of 2,700 to 4,232 cm³, torque from 164 to 364 Nm, unladen weights from 3,140 to 4,235 kg, lengths from 3,830 to 4,470 mm, widths from 2,020 to 2,150 mm and heights from 2,470 to 2,745 mm.
The CX was the tractor of grassland and part-time farms, horse yards and municipalities looking for a simple four-cylinder without electronics; in 2002 the JX range from Jesi followed in the same logic.
On used tractors, operating hours, engine condition and injection pump, clutch and shuttle, four-wheel-drive clutch on DT models, hydraulics and cab count; parts run through CNH and Perkins and are inexpensive.
Sources: SpecCodex register, model data: Case IH CX-Baureihe, Case IH (CNH, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 102 hp (75 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 364 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 3,990 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 17.25correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,470 mmcorrect |
|---|---|
| Width | 2,110 mmcorrect |
| Height | 2,745 mmcorrect |
| Wheelbase | 2,356 mmcorrect |
| Ground clearance | 330 mmcorrect |
| Unladen weight | 4,235 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/8 R, 24 V/12 R and 8 V/8 Rcorrect |
| Front tyres | 340/85 R 24 AScorrect |
| Rear tyres | 460/85 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 155 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.7 kW/t (75 kW / 4.2 t)
Power class: Large (100–180 hp)
Stronger than 67% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH CX 100 have?
The Case IH CX 100 delivers 102 hp.
How much does the Case IH CX 100 weigh?
The unladen weight is 4,235 kg.
What engine does the Case IH CX 100 have?
4 cylinders, 3,990 cm³ displacement, Diesel.
How fast does the Case IH CX 100 go?
Top speed is 30 km/h.
What are the dimensions of the Case IH CX 100?
4,470 mm × 2,110 mm × 2,745 mm.
When was the Case IH CX 100 built?
Production years: 1998–2000.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
