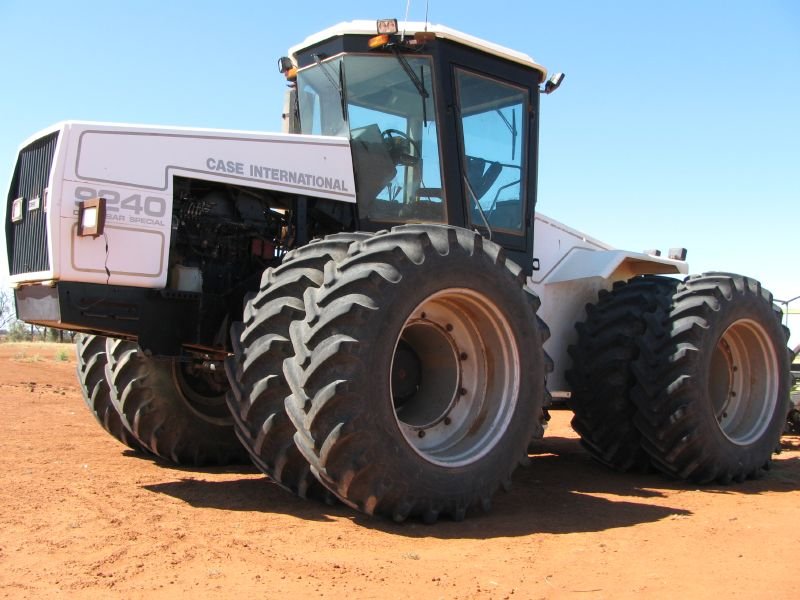

Case IH 9240
Lata produkcji: 1990–1994 · Seria: 9200 er-Baureihe
Dane techniczne
| Construction | Starrrahmen-Bauweise |
| Cooling | Wasserkühlung |
| Cylinders | 6 |
| Displacement cm3 | 8268 cm3 |
| Drive type | Allradantrieb |
| Fuel | Diesel |
| Gearbox | 12 V/3 R |
| Ground clearance mm | 340 mm |
| Height mm | 3198 mm |
| Length mm | 6517 mm |
| Power km | 235 KM |
| Power kw | 172.8 kW |
| Rated rpm | 2.200 obr./min |
| Tires front | 20.8 R 38 AS |
| Tires rear | 20.8 R 38 AS |
| Top speed kmh | 30 km/h |
| Weight kg | 12798 kg |
| Wheelbase mm | 3150 mm |
| Width mm | 2661 mm |
