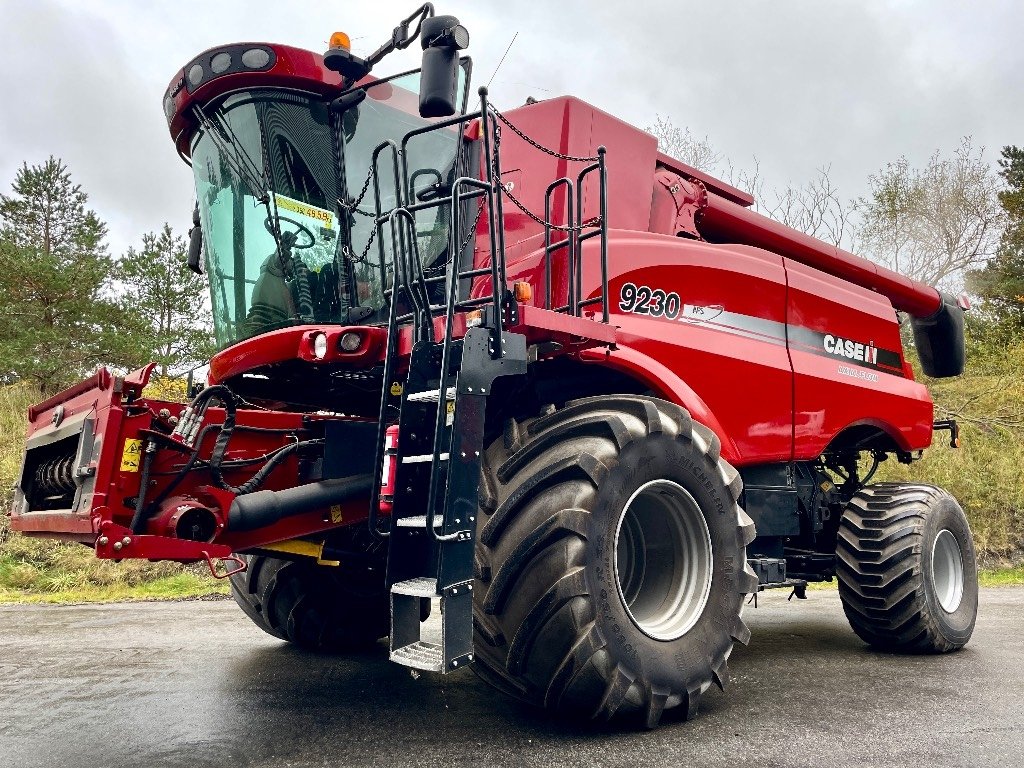

Case IH 9230
Built: 1990–1995 · Series: 9200 er-Baureihe
More machines from model year 1990
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH 9200 series (1990–1995) – the second Steiger generation under Case IH from Fargo: 9230 to 9280, the last digits as power step, wheeled and Quadtrac versions, Cummins and Case six-cylinders of 8.3 and 10 litres
The 9200 series was the second articulated-tractor generation Case IH built at the Fargo plant in North Dakota after the takeover of Steiger in 1986 – the successor to the 9100s of 1987 and the range in which the first four-track tractor went into series production in 1996 with the 9370 Quadtrac. The type logic: 92 marks the range, the last two digits the power step – 9230 about 235 hp, 9250 about 275, 9270 about 335, 9280 about 375 hp – the versions comprise wheeled articulated tractors on duals or triples and, in the late range, the Quadtrac. The engines are the Case six-cylinder 6TA-830 of 8.3 litres in the small and the Cummins N14 and Case-Cummins 6TA-1000 of 10 litres in the big models, at 2,100 to 2,200 rpm; the transmission is the 12- or 24-speed powershift, optionally the synchromesh gearbox.
Read on 3 more paragraphs
The register lists 6 versions with 172.8 to 279.5 kW from six-cylinders of 8,268 to 10,016 cm³, torque up to 1,324 Nm, unladen weights from 10,935 to 15,728 kg, lengths from 6,410 to 7,610 mm, widths from 2,661 to 4,005 mm and heights from 3,198 to 3,870 mm.
The 9200s are the tractors with which Case IH held the prairie articulated-tractor market against John Deere and Versatile; in 1996 the 9300 series followed with the Quadtrac in series production, in 2000 the STX.
On used tractors, operating hours, engine (Cummins and Case parts available), powershift (clutch packs, electronics), articulation joint and steering cylinders, axles and tyres, hydraulics count; parts run through CNH and Cummins.
Sources: SpecCodex register, model data: Case IH 9200er-Baureihe, Case IH (CNH, Hersteller, Werk Fargo)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 235 hp (172.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 852 Nmcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
| Bore | 114 mmcorrect |
| Stroke | 135 mmcorrect |
| Compression ratio | 16.5correct |
| Injection pressure | 205 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,410 mmcorrect |
|---|---|
| Width | 3,035 mmcorrect |
| Height | 3,279 mmcorrect |
| Wheelbase | 3,058 mmcorrect |
| Ground clearance | 280 mmcorrect |
| Unladen weight | 10,935 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 Rcorrect |
| Forward gears | 12correct |
| Reverse gears | 3correct |
| Front tyres | 18.4-38 AScorrect |
| Rear tyres | 18.4-38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 435 lcorrect |
|---|
Origin and approval
| Construction | articulated framecorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.8 kW/t (173 kW / 10.9 t)
Power class: Heavy (> 180 hp)
Stronger than 94% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH 9230 have?
The Case IH 9230 delivers 235 hp.
How much does the Case IH 9230 weigh?
The unladen weight is 10,935 kg.
What engine does the Case IH 9230 have?
6 cylinders, 8,268 cm³ displacement, Diesel.
How fast does the Case IH 9230 go?
Top speed is 30 km/h.
What are the dimensions of the Case IH 9230?
6,410 mm × 3,035 mm × 3,279 mm.
When was the Case IH 9230 built?
Production years: 1990–1995.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
