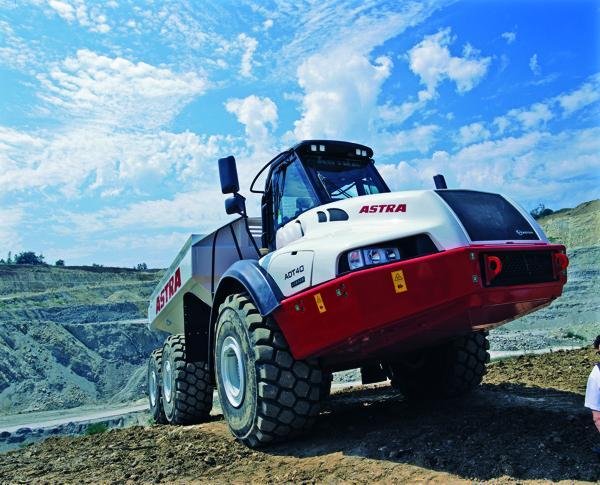

Astra ADT40C
Series: Astra Articulated Dump Truck
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Astra Articulated Dump Truck: the collective page of articulated dump trucks ADT25C to ADT40C from Piacenza, 235 to 335 kW, six-cylinder Iveco Cursor 10 and Cursor 13 engines, lengths up to 10.78 m
Astra, with its plant in Piacenza and part of the Italian Iveco group, builds a range of articulated dump trucks under the ADT designation. The numbers in the types 25, 30, 35 and 40 order machine size roughly by payload class in tonnes, as is common for articulated dump trucks; all four models are powered by six-cylinder diesel engines from Iveco's Cursor family, the smaller Cursor 10 in the lighter and the larger Cursor 13 in the heavier versions.
Read on 3 more paragraphs
The register lists here 4 versions with 235 to 335 kW, from 10,300.9 to 12,801.6 cm³, lengths of 10,031 to 10,783.8 mm, widths of 2,962.7 to 3,340.6 mm, heights of 3,620 to 3,840 mm, torque of 1,450 to 2,000.1 Nm and rated speeds of 1,900 to 2,100 rpm.
Articulated dump trucks of this class haul in earthworks, open-pit mining and off-road terrain, where the articulated steering and all-wheel drive give better traction than rigid dump trucks, especially in wet weather and on soft ground. Astra competes there with Volvo, Bell and Caterpillar for work in earthmoving and mining.
Buying used, check the articulation joint and oscillating axles, the dump body for cracks and wear, tyre condition given the vehicle's considerable weight, and the hours on the Cursor units. Brakes and the retarder also deserve close attention at this weight class; parts run through the Iveco network.
Sources: SpecCodex register, model data: Astra Articulated Dump Truck
Technical data
Engine
| Engine model | Cursor 13correct |
|---|---|
| Power | 455.5 hp (335 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 2,000.1 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 12,801.6 cm³correct |
Dimensions and weights
| Length | 10,783.8 mmcorrect |
|---|---|
| Width | 3,340.6 mmcorrect |
| Height | 3,840 mmcorrect |
Drivetrain and chassis
| Gearbox type | Autocorrect |
|---|---|
| Forward gears | 6correct |
| Reverse gears | 3correct |
| Tyre size | 29.5R25correct |
| Top speed | 50.7 km/hcorrect |
More machines with this engine (Cursor 13, 2)
Frequently asked questions
How much power does the Astra ADT40C have?
The Astra ADT40C delivers 456 hp.
What engine does the Astra ADT40C have?
6 cylinders, 12,802 cm³ displacement.
How fast does the Astra ADT40C go?
Top speed is 50.7 km/h.
What are the dimensions of the Astra ADT40C?
10,784 mm × 3,341 mm × 3,840 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
