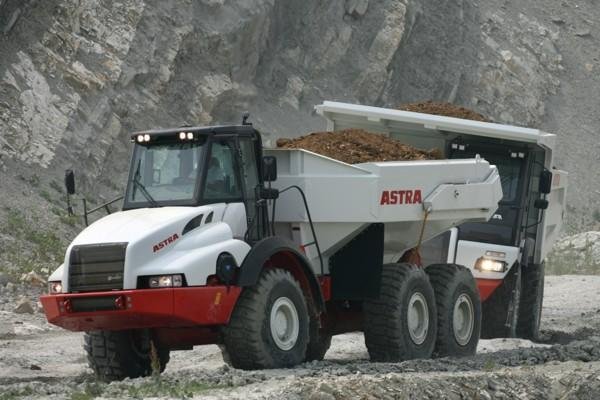

Astra ADT30C
Series: Astra Articulated Dump Truck
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Astra Articulated Dump Truck: the collective page of articulated dump trucks ADT25C to ADT40C from Piacenza, 235 to 335 kW, six-cylinder Iveco Cursor 10 and Cursor 13 engines, lengths up to 10.78 m
Astra, with its plant in Piacenza and part of the Italian Iveco group, builds a range of articulated dump trucks under the ADT designation. The numbers in the types 25, 30, 35 and 40 order machine size roughly by payload class in tonnes, as is common for articulated dump trucks; all four models are powered by six-cylinder diesel engines from Iveco's Cursor family, the smaller Cursor 10 in the lighter and the larger Cursor 13 in the heavier versions.
Read on 3 more paragraphs
The register lists here 4 versions with 235 to 335 kW, from 10,300.9 to 12,801.6 cm³, lengths of 10,031 to 10,783.8 mm, widths of 2,962.7 to 3,340.6 mm, heights of 3,620 to 3,840 mm, torque of 1,450 to 2,000.1 Nm and rated speeds of 1,900 to 2,100 rpm.
Articulated dump trucks of this class haul in earthworks, open-pit mining and off-road terrain, where the articulated steering and all-wheel drive give better traction than rigid dump trucks, especially in wet weather and on soft ground. Astra competes there with Volvo, Bell and Caterpillar for work in earthmoving and mining.
Buying used, check the articulation joint and oscillating axles, the dump body for cracks and wear, tyre condition given the vehicle's considerable weight, and the hours on the Cursor units. Brakes and the retarder also deserve close attention at this weight class; parts run through the Iveco network.
Technical data
Engine
| Engine model | Cursor 10correct |
|---|---|
| Power | 353.5 hp (260 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Torque | 1,650correct |
| Speed at max. torque | 1,140 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 10,300.9 cm³correct |
Dimensions and weights
| Length | 10,031correct |
|---|---|
| Width | 2,962.7correct |
| Height | 3,620 mmcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 6correct |
| Reverse gears | 3correct |
| Tyre size | 23.5R25correct |
| Top speed | 46.3 km/hcorrect |
More machines with this engine (Cursor 10, 2)
Frequently asked questions
How much power does the Astra ADT30C have?
The Astra ADT30C delivers 354 hp.
What engine does the Astra ADT30C have?
6 cylinders, 10,301 cm³ displacement.
How fast does the Astra ADT30C go?
Top speed is 46.3 km/h.
What are the dimensions of the Astra ADT30C?
10,031 mm × 2,963 mm × 3,620 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
