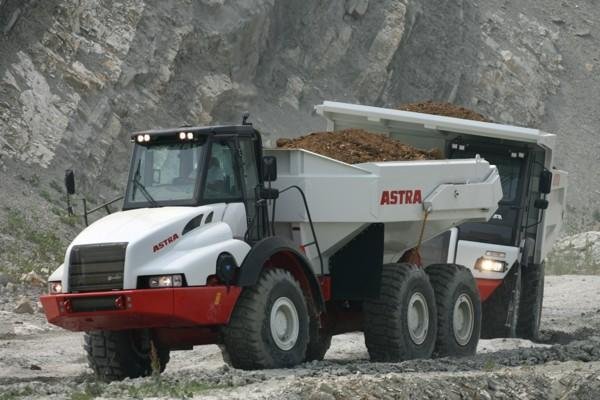

Astra ADT35C

Series: Astra Articulated Dump Truck

Source: https://www.lectura-specs.pl/pl/model/maszyny-budowlane/wozi

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ADT35C from Astra is part of the Astra Articulated Dump Truck series. The engine delivers 410.6 hp (302 kW), has 6 cylinders, with a displacement of 12,801.6 cm³. Torque is 1,850 Nm. Rated speed is 2,100 rpm. Top speed is 50.7 km/h. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The engine fitted is the Cursor 13. Tyre size: 26,5R25. The Astra Articulated Dump Truck series covers 4 models. Rated output within it ranges from 319.6 to 455.5 hp; the ADT35C sits in the upper part of that range with 410.6 hp. Its immediate neighbours are the ADT30C below it with 353.5 hp and the ADT40C above it with 455.5 hp. 4 Astra models are on record. The model is listed under Mining equipment. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCursor 13correct
Power410.6 hp (302 kW)correct
Rated speed2,100 rpmcorrect
Torque1,850correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement12,801.6 cm³correct

Dimensions and weights

Length10,783.8correct
Width3,191.3correct
Height3,800 mmcorrect

Drivetrain and chassis

Gearbox typeAutocorrect
Forward gears6correct
Reverse gears3correct
Tyre size26.5R25correct
Top speed50.7 km/hcorrect

Frequently asked questions

How much power does the Astra ADT35C have?

The Astra ADT35C delivers 411 hp.

What engine does the Astra ADT35C have?

6 cylinders, 12,802 cm³ displacement.

How fast does the Astra ADT35C go?

Top speed is 50.7 km/h.

What are the dimensions of the Astra ADT35C?

10,784 mm × 3,191 mm × 3,800 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
