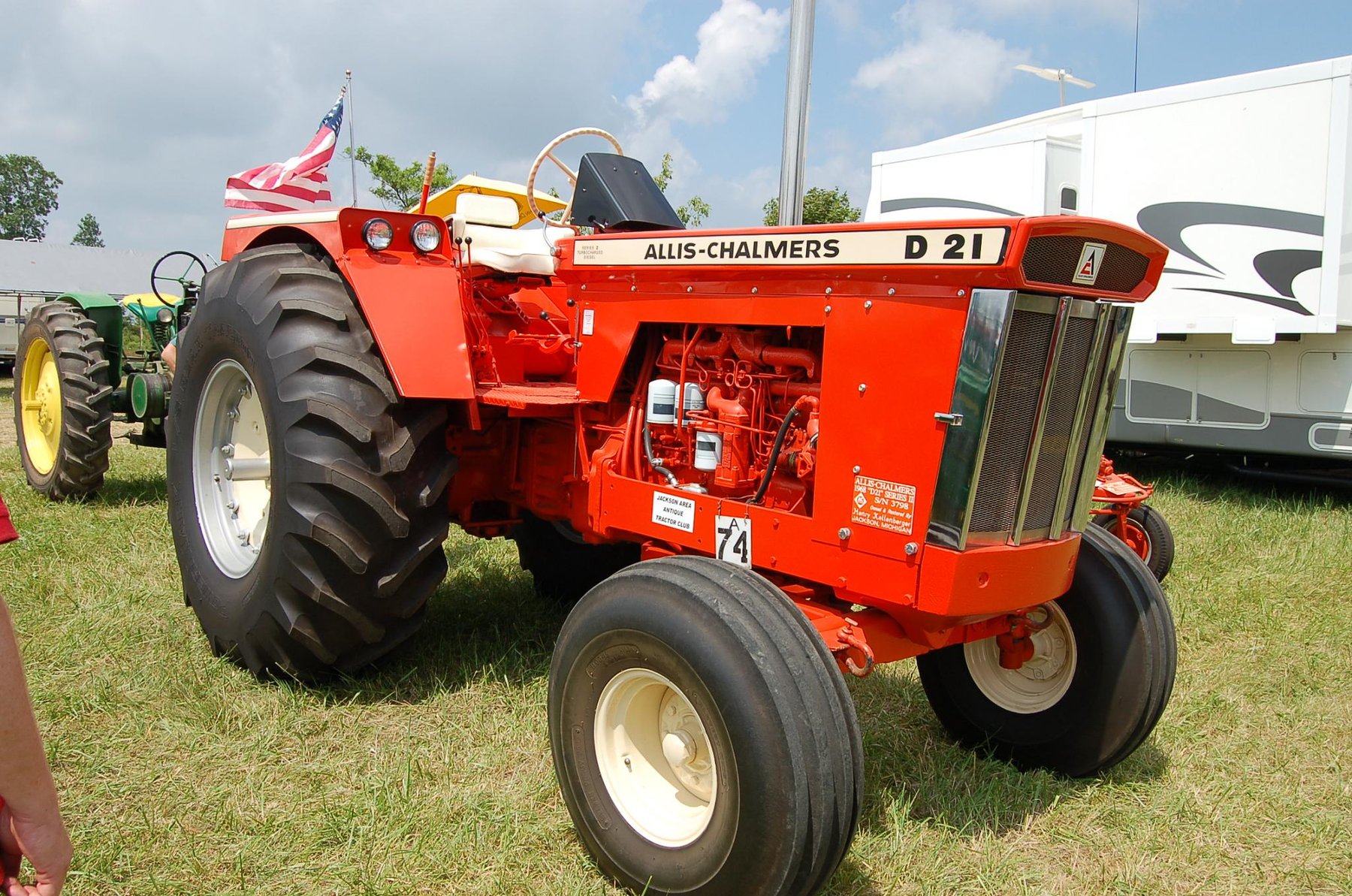

Allis Chalmers D-21
Lata produkcji: 1963–1969 · Seria: D-Baureihe
Dane techniczne
| Construction | Rahmenbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 6 |
| Displacement cm3 | 6974 cm3 |
| Drive type | Heckantrieb |
| Fuel | Diesel |
| Gearbox | 8 V/2 R |
| Ground clearance mm | 541 mm |
| Height mm | 2708 mm |
| Length mm | 4079 mm |
| Power km | 117 KM |
| Power kw | 86.1 kW |
| Rated rpm | 2.200 obr./min |
| Tires front | 11.00 x 16 |
| Tires rear | 18.4 x 34 |
| Top speed kmh | 25 km/h |
| Units built | 3.538 |
| Weight kg | 4874 kg |
| Wheelbase mm | 2442 mm |
| Width mm | 2327 mm |
