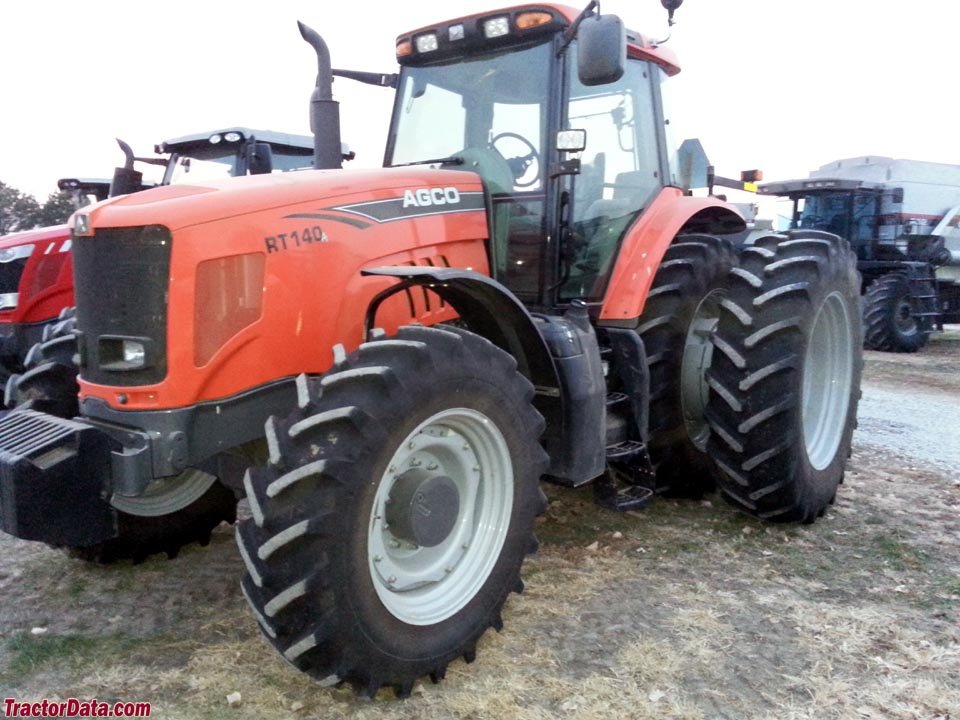

AGCO RT140 4WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AGCO – other models: the collective page of tractors outside the named ranges, from the compact GT and LT through the RT mid-range to the larger DT models, 17 to 216 kW, AGCO Sisu, Iseki, Cummins, SDF and SAME engines
This page gathers the tractors listed in the register under the AGCO brand itself that could not be assigned to a named range. AGCO Corporation was formed in 1990 in Duluth, Georgia, and for many years, alongside the later-acquired brands Massey Ferguson, Fendt and Valtra, also sold tractors under its own name. By size the range splits into the compact GT and LT series, the RT mid-range and the larger DT models; a handful of models from other group brands, such as a Fendt 1000 Vario and a Massey Ferguson 6713, also appear in the register. The engines come from several plants and partners within the group: AGCO Sisu – the former Finnish Sisu works, today AGCO Power – in the larger models, Iseki in the compact tractors, plus Cummins, SDF (SAME Deutz-Fahr) and SAME.
Read on 3 more paragraphs
The register lists here 82 versions with 16.8 to 216.3 kW (28.4 to 290 hp) from three- to six-cylinders of 1,124 to 8,400 cm³, PTO outputs from 19 to 240 hp, lift capacities from 400 to 6,913 kg, unladen weights from 620 to 14,000 kg, lengths from 2,480 to 6,157 mm, widths from 1,789 to 2,750 mm and heights from 2,769 to 3,570 mm.
As a group, AGCO is one of the world's three big farm-equipment makers alongside John Deere and CNH Industrial; the own-brand range covers mainly the North American market for compact and mid-range tractors, while the bigger ranges are now sold chiefly under Massey Ferguson, Fendt and Valtra.
On used tractors, engine and hydraulics condition count on the GT and LT compacts, on the RT and DT models operating hours, clutch and four-wheel drive, and – depending on the engine fitted – parts availability through Cummins, SDF or AGCO Power; the variety of engine origins makes the model and engine designation especially important before buying.
Sources: SpecCodex register, model data: AGCO (weitere Modelle), AGCO Corporation (manufacturer)
Technical data
Engine
| Engine model | 6.6Lcorrect |
|---|---|
| Power | 167 hp (122.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 807 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600.7 cm³correct |
Dimensions and weights
| Length | 4,978 mmcorrect |
|---|---|
| Width | 2,009 mmcorrect |
| Height | 3,023 mmcorrect |
| Unladen weight | 6,553 kgcorrect |
Drivetrain and chassis
| Gearbox | 24 V/24 R or continuously variablecorrect |
|---|---|
| Gearbox type | continuously variablecorrect |
| Forward gears | 24correct |
| Forward gears | 2correct |
| Top speed | 51.5 km/hcorrect |
Working data
| Lifting capacity | 6,479 kgcorrect |
|---|---|
| Pump flow | 109.8 l/mincorrect |
| Hydraulic pressure | 199.9 barcorrect |
| Fuel tank capacity | 100.3 lcorrect |
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO output | 140 hpcorrect |
| PTO speed | 540/1000 rpmcorrect |
| System voltage | 24 Vcorrect |
More machines with this engine (Cummins 6.6L, 2)
Where this model stands
Power-to-weight ratio: 18.7 kW/t (123 kW / 6.6 t)
Power class: Large (100–180 hp)
Stronger than 87% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO RT140 have?
The AGCO RT140 delivers 167 hp.
How much does the AGCO RT140 weigh?
The unladen weight is 6,553 kg.
What engine does the AGCO RT140 have?
6 cylinders, 6,601 cm³ displacement.
How fast does the AGCO RT140 go?
Top speed is 51.5 km/h.
What is the PTO output of the AGCO RT140?
PTO output is 140 hp. PTO speeds: 540/1000 rpm.
How much does the rear linkage of the AGCO RT140 lift?
The rear linkage lifts 6,479 kg.
What are the dimensions of the AGCO RT140?
4,978 mm × 2,009 mm × 3,023 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
