AGCO DT240a 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

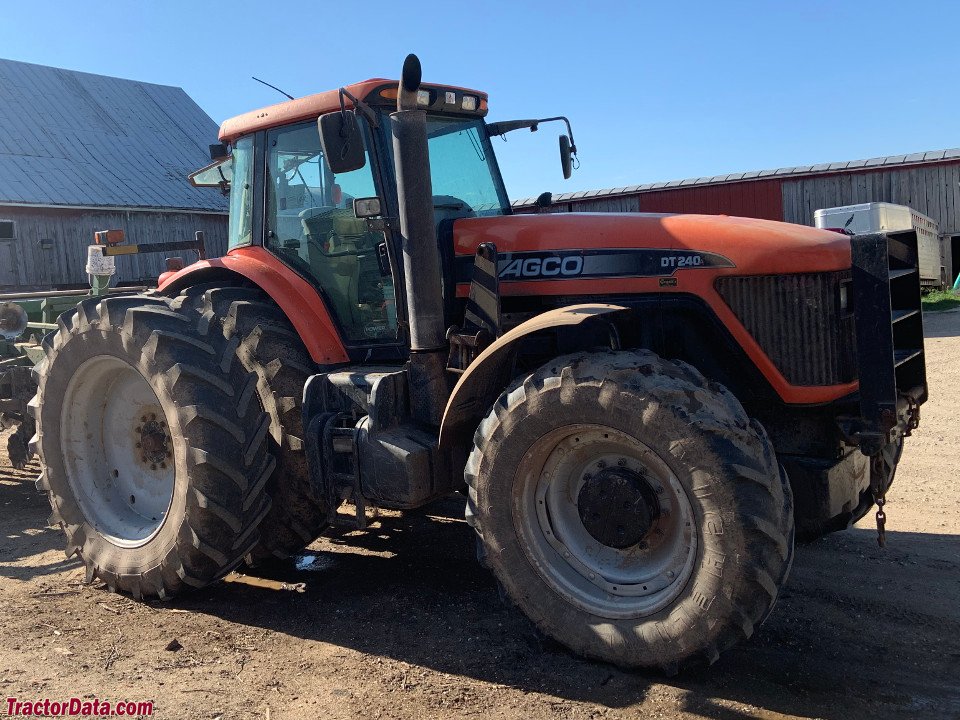

The AGCO DT240a is a tractor from the AGCO 4WD Tractor series. The engine draws 294 hp (216.3 kW) from 8.4 litres. Rated speed is 2,200 rpm.
On the road, up to 52 km/h is possible. Empty, it weighs 9,050 kg.
Within the range, rated power spans from 22.8 to 294 hp; with 294 hp, the DT240a sits at the top. Below it ranks the DT220a with 264 hp.
Technical data
Engine
| Power | 294 hp (216.3 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Displacement | 8,400 cm³correct |
| Aspiration | wastegatecorrect |
Dimensions and weights
| Unladen weight | 9,050 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | PowerMaxx continuously variable transmissioncorrect |
|---|---|
| Forward gears | 2correct |
| Top speed | 51.5 km/hcorrect |
Working data
| Pump flow | 150.3 l/mincorrect |
|---|---|
| Fuel tank capacity | 600.4 lcorrect |
Other data
| Height | 3,142.5correct |
|---|
Where this model stands
Power-to-weight ratio: 23.9 kW/t (216 kW / 9.1 t)
Power class: Heavy (> 180 hp)
Stronger than 97% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO DT240a have?
The AGCO DT240a delivers 294 hp.
How much does the AGCO DT240a weigh?
The unladen weight is 9,050 kg.
What engine does the AGCO DT240a have?
8,400 cm³ displacement.
How fast does the AGCO DT240a go?
Top speed is 51.5 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
