Start › Tractors › AGCO Allis › 5600 series › 5650

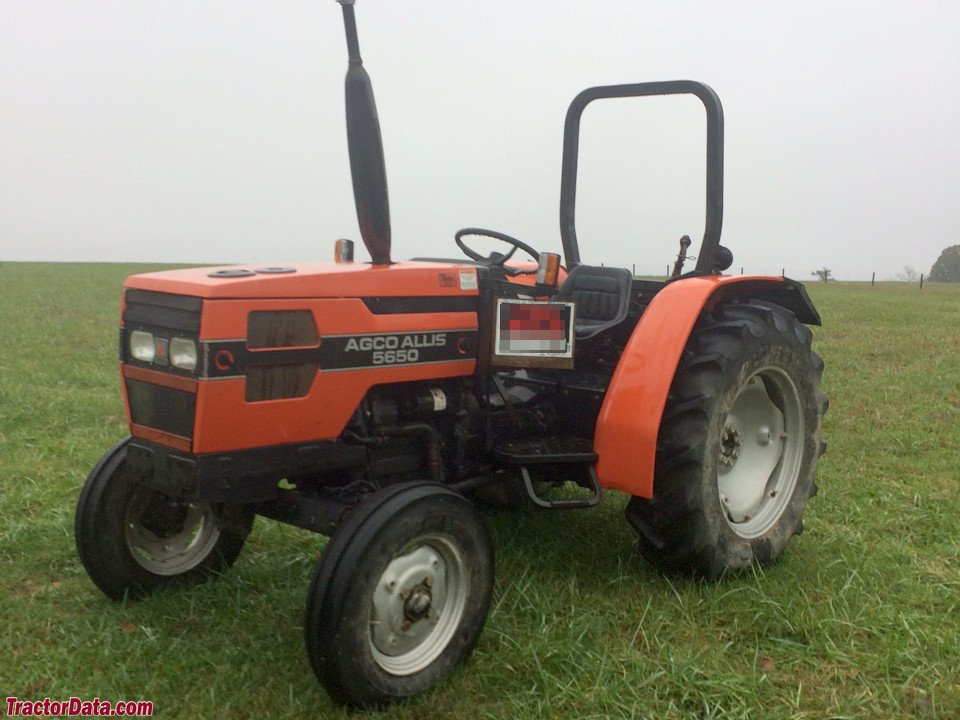

AGCO Allis 5650

Built: 1994–1999 · Series: 5.600 er - Baureihe

More machines from model year 1994

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 5650, AGCO Allis offers a model from the 5600er series. Production: 1994–1999. The engine delivers 48 hp (35.3 kW), has 3 cylinders, with a displacement of 3,000 cm³. The engine comes from SAME. Torque is 167 Nm. Rated speed is 2,350 rpm. The machine is 3,378 mm long, 1,694 mm wide and 2,233 mm high. The unladen weight is 2,055 kg. The wheelbase measures 1,976 mm. Ground clearance is 500 mm. Top speed is 30 km/h. The tank holds 57 litres. Transmission: 12 V/12 R or 16 V/16 R. The engine is air-cooled. Tyres: front 7.50-16 ASF (4 WD: 11.2 R 20 AS), rear 14.9 R 28 AS. The model was built in Italy. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 17:1. Maximum torque is reached at 1,300 rpm. Construction: unit construction (no separate frame). The linkage is category II. The PTO runs at 540/1000 rpm. The 5.600 er - Baureihe series covers 4 models. Rated output within it ranges from 48 to 80 hp; the 5650 sits at the bottom of that range with 48 hp. Its immediate neighbours are the 5660 above it with 58 hp. Unladen weight within it ranges from 2,055 to 3,025 kg; here the 5650 sits at the bottom of that range with 2,055 kg. 58 AGCO Allis models across 14 series are on record.

AGCO Allis 5600 series – compact tractors from the US brand based in Duluth: 5650 to 5680 with SAME engines, 35 to 59 kW, three- and four-cylinder engines of 3,000 to 4,000 cm³

AGCO Allis was, in the 1990s, one of the US tractor brands of the AGCO group headquartered in Duluth, Georgia; the brand name traces back to Allis-Chalmers, whose farm-machinery division passed, via the intermediate company Deutz-Allis, to the newly formed Allis-Gleaner Corporation – AGCO for short – in 1990. The models covered here, 5650 to 5680, form the brand's 5600 compact class; according to the register, their engines come from the Italian maker SAME, today part of the SAME Deutz-Fahr group.

Read on 3 more paragraphs

The register lists here 4 versions with 35.3 to 58.8 kW, or 46 to 73 hp, from three- and four-cylinder engines of 3,000 to 4,000 cm³, unladen weights from 2,055 to 3,025 kg, torque from 167 to 261 Nm, lengths from 3,378 to 3,919 mm, widths from 1,694 to 1,941 mm and heights from 2,233 to 2,530 mm.

The 5600 series was positioned in the compact segment alongside brands such as Massey Ferguson, Ford and the emerging Japanese compact tractors, aimed at smaller farms, orchards, vineyards and municipal use; the AGCO Allis brand was gradually withdrawn from the market in the late 1990s in favour of other AGCO brands.

On a used buy, for the SAME engines what counts is the condition of the injection pump and cooling system, the tightness of the hydraulics, corrosion on the wings and chassis, and the limited parts supply, since the brand has long been discontinued and spares must be sourced partly through SAME Deutz-Fahr and partly through independent farm-machinery dealers.

Sources: SpecCodex register, model data: AGCO Allis 5600er-Baureihe

Technical data

Engine

Engine make	SAMEcorrect
Fuel	dieselcorrect
Power	48 hp (35.3 kW)correct
Rated speed	2,350 rpmcorrect
Torque	167 Nmcorrect
Speed at max. torque	1,300 rpmcorrect
Cylinders	3correct
Displacement	3,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	17correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,378 mmcorrect
Width	1,694 mmcorrect
Height	2,233 mmcorrect
Wheelbase	1,976 mmcorrect
Ground clearance	500 mmcorrect
Unladen weight	2,055 kgcorrect

Drivetrain and chassis

Drive	rear- and four-wheel drivecorrect
Gearbox	12 V/12 R or 16 V/16 Rcorrect
Front tyres	7.50-16 ASF (4 WD: 11.2 R 20 AS)correct
Rear tyres	14.9 R 28 AScorrect
Top speed	30 km/hcorrect

Working data

Fuel tank capacity	57 lcorrect

Origin and approval

Plant	Italycorrect
Construction	unit construction (no separate frame)correct

Other data

Linkage category	Cat IIcorrect
PTO speed	540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 17.2 kW/t (35 kW / 2.1 t)

Power class: Universal (40–100 hp)

Stronger than 32% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the AGCO Allis 5650 have?

The AGCO Allis 5650 delivers 48 hp.

How much does the AGCO Allis 5650 weigh?

The unladen weight is 2,055 kg.

What engine does the AGCO Allis 5650 have?

3 cylinders, 3,000 cm³ displacement, Diesel.

How fast does the AGCO Allis 5650 go?

Top speed is 30 km/h.

What are the dimensions of the AGCO Allis 5650?

3,378 mm × 1,694 mm × 2,233 mm.

When was the AGCO Allis 5650 built?

Production years: 1994–1999.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
