Kramer 14er-Reihe
6 models in this series
Kramer 14 series: the last tractor generation before 1973 – two- to six-cylinder diesels with 31 to 85 kW (30 to 115 hp), 2,826 to 5,655 cm³ displacement, air-cooled
The 14 series was Kramer's final tractor development before the company fully stopped tractor building in 1973 in favour of construction machinery. It bundles the most powerful tractors Kramer ever built.
Read on 4 more paragraphs
The register lists 6 live models, from the 314 to the 1214, built between 1970 and 1973. Output ranges from 31 to 85 kW, or 30 to 115 hp, weight from 1,850 to 6,000 kg, displacement from 2,826 to 5,655 cm3, across two- to six-cylinder engines.
Reaching up to 115 hp with six-cylinder engines, Kramer entered a power class it had never previously offered, just before exiting tractor production — a late but clear step upward.
Because of the short three-year production run, 14-series models rank among the rarer Kramer tractors held by collectors and museums today.
The 14 series' air-cooled engines needed no radiator, water pump or antifreeze; this simplified maintenance and winter operation but required a clean fan shroud. With outputs up to 85 kW, the three-point hitch ranged from category I on the smaller types to category II under ISO 730 on the most powerful six-cylinder models. Parts for this late Kramer generation are scarce today and mainly circulate among specialist collectors and vintage-machinery dealers. Anyone searching the collector market should therefore expect a longer wait for spare parts.
Sources: SpecCodex register, model data: Kramer 14er-Reihe
Models compared
6 of 6 models.
| 12141970 | 3141/1970–10/1970 | 4143/1970–11/1972 | 5143/1970–3/1973 | 7144/1970–2/1973 | 81410/1970–2/1973 | |
|---|---|---|---|---|---|---|
| Power | 85 kW | – | 31 kW | – | 46.9 kW | 51.2 kW |
| Rated speed | 2,300 rpm | – | 2,300 rpm | 2,300 rpm | 2,500 rpm | 2,500 rpm |
| PTO speed | 540/1000 rpm | – | 585/1070 rpm | – | 540/1050 rpm | – |
| Linkage category | Cat III | Cat I | Cat I | Cat I | Cat I | – |
| Cylinders | 6 | 2 | 3 | 3 | 4 | 4 |
| Displacement | 5,655 cm³ | – | 2,826 cm³ | 2,826 cm³ | 3,770 cm³ | 3,768 cm³ |
| Fuel tank capacity | – | 35 l | – | 64 l | 64 l | 64 l |
| Forward gears | 12 | – | 10 | – | 12 | – |
| Reverse gears | 12 | – | 5 | – | 6 | – |
| Top speed | 39.8 km/h | 20 km/h | 30 km/h | 20 km/h | 20 km/h | 30 km/h |
| Wheelbase | 2,500 mm | 1,960 mm | 2,000 mm | 2,000 mm | 2,230 mm | 2,230 mm |
| Length | 5,400 mm | 3,200 mm | 3,470 mm | 3,470 mm | 3,720 mm | 3,720 mm |
| Width | 2,300 mm | 1,550 mm | 1,645 mm | 1,550 mm | 1,920 mm | 1,950 mm |
| Height | 2,900 mm | 1,500 mm | 1,600 mm | 1,600 mm | 1,750 mm | 1,750 mm |
| Unladen weight | 6,000 kg | 1,850 kg | 2,130 kg | 2,190 kg | 2,750 kg | 2,750 kg |
Models
Tractor in 3D section
Turn the model, look inside and click an assembly — each one is explained.
1214
The 1214 from Kramer is part of the 14er-Reihe series. Production: 1970. The engine delivers 115 hp (85 kW), has 6...
314
The 14er-Reihe series from Kramer includes the 314. Production: 1/1970–10/1970. The engine delivers 30 hp, has 2...
414
The 414 from Kramer is part of the 14er-Reihe series. Production: 3/1970–11/1972. The engine delivers 42 hp (31 kW),...
514
The Kramer 514 belongs to the 14er-Reihe series. Production: 3/1970–3/1973. The engine delivers 50 hp, has 3...

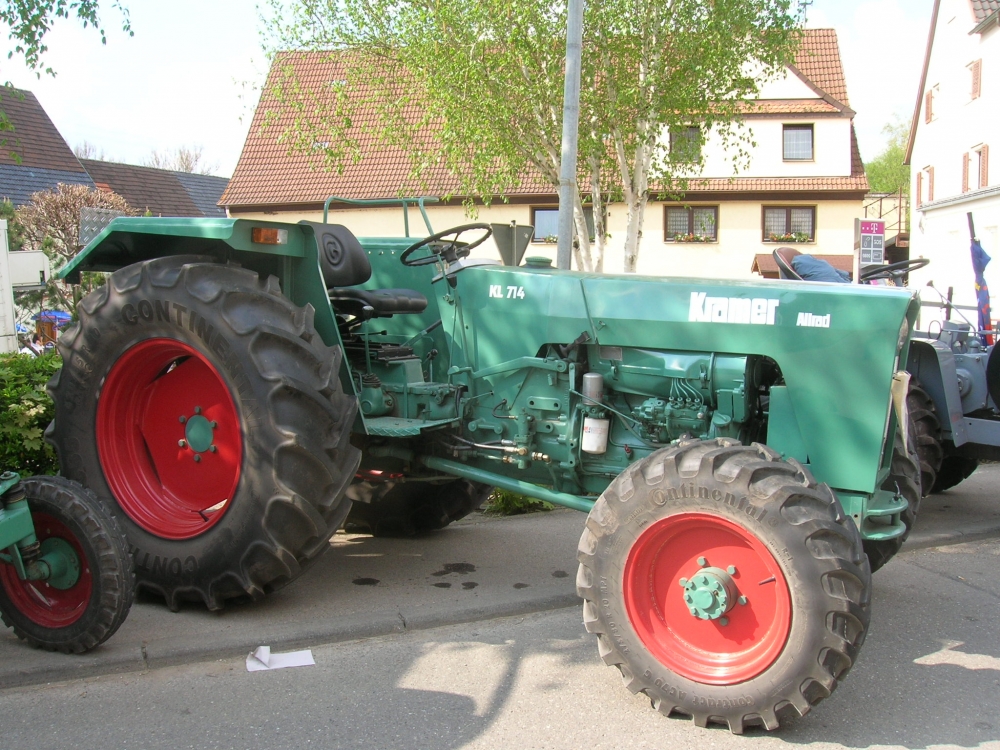

714
With the 714, Kramer offers a model from the 14er-Reihe series. Production: 4/1970–2/1973. The engine delivers 64 hp...
814
The 814 from Kramer is part of the 14er-Reihe series. Production: 10/1970–2/1973. The engine delivers 70 hp (51.2...
