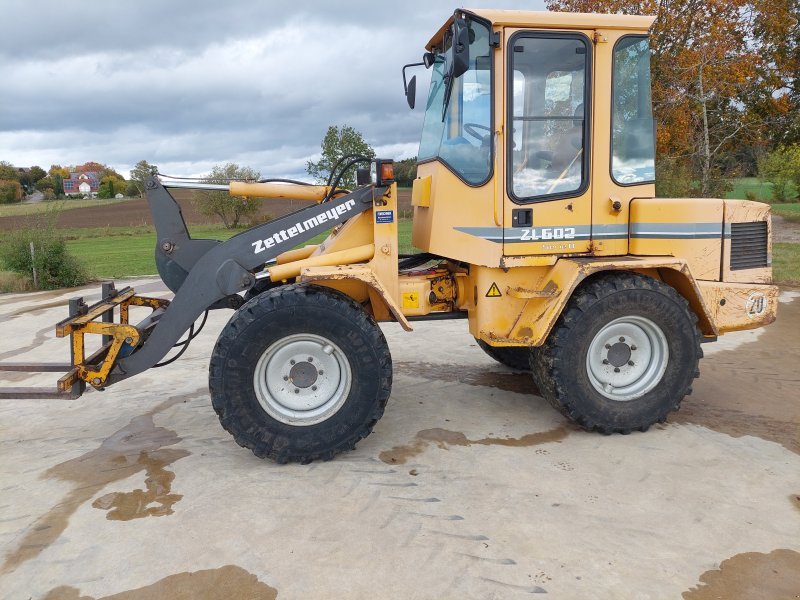

Zettelmeyer ZL602B

The Zettelmeyer Wheel Loader series from Zettelmeyer includes the ZL602B. The engine delivers 60.8 hp (42.5 kW), has 4 cylinders, with a displacement of 2,736.6 cm³. Torque is 200.7 Nm. Rated speed is 2,300 rpm. The unladen weight is 4,600 kg. The wheelbase measures 2,002.5 mm. Ground clearance is 481.6 mm. The tank holds 60.2 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,800 rpm. The pump delivers 52.2 l/min. The hydraulic tank holds 60.2 litres. The electrical system runs on 12 V. The engine fitted is the KHD BF4 L 1011 FT. Tyre size: 12,5-20. The Zettelmeyer Wheel Loader series covers 42 models. Rated output within it ranges from 30 to 306.2 hp; the ZL602B sits at the bottom of that range with 60.8 hp. Its immediate neighbours are the ZL602 below it with 60.5 hp and the ZL602Si above it with 61.8 hp. 50 Zettelmeyer models across 4 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.
