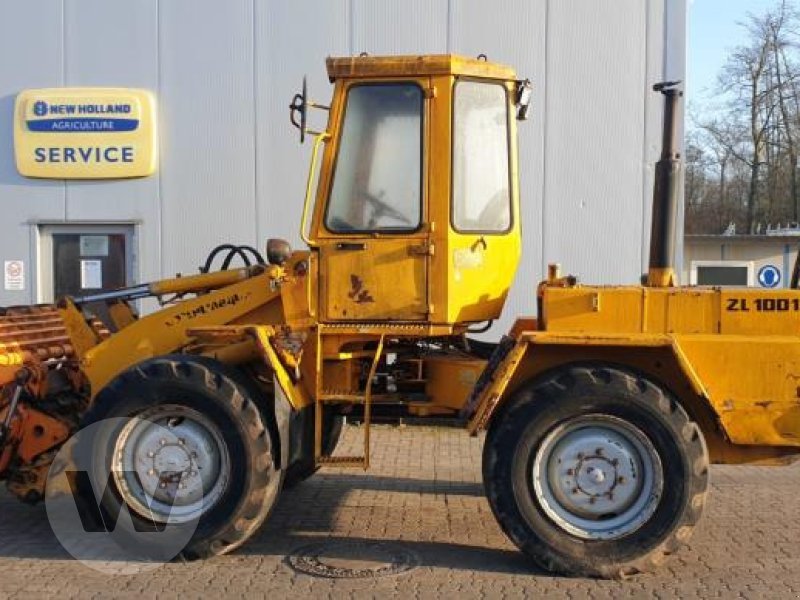

Zettelmeyer ZL1001

Series: Zettelmeyer Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/zettelm

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the ZL1001, Zettelmeyer offers a model from the Zettelmeyer Wheel Loader series. The engine delivers 85.2 hp (59.7 kW), has 4 cylinders, with a displacement of 4,086.9 cm³. Torque is 255 Nm. Rated speed is 2,500 rpm. The unladen weight is 7,420 kg. The wheelbase measures 2,401.8 mm. Ground clearance is 612.6 mm. The tank holds 110.2 litres. Maximum torque is reached at 1,550 rpm. The pump delivers 112.8 l/min. The hydraulic tank holds 100.3 litres. The electrical system runs on 12 V. The engine fitted is the F4L 913. Tyre size: 15,5-25 10PR (L-2). The Zettelmeyer Wheel Loader series covers 42 models. Rated output within it ranges from 30 to 306.2 hp; the ZL1001 sits in the lower part of that range with 85.2 hp. Its immediate neighbours are the ZL802Si below it with 84.2 hp and the ZL1002i above it with 93.3 hp. 50 Zettelmeyer models across 4 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelF4L 913correct
Power85.2 hp (59.7 kW)correct
Rated speed2,500 rpmcorrect
Torque255correct
Speed at max. torque1,550 rpmcorrect
Cylinders4correct
Displacement4,086.9 cm³correct
Aspirationnaturalcorrect

Dimensions and weights

Wheelbase2,401.8correct
Ground clearance612.6correct
Unladen weight7,420 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmission full powershift transmissioncorrect
Tyre size15.5-25 10PR (L-2)correct
System voltage12 Vcorrect

Working data

Pump flow112.8 l/mincorrect
Hydraulic oil capacity100.3 lcorrect
Fuel tank capacity110.2 lcorrect

Other data

Height3,032.8correct

Where this model stands

Power-to-weight ratio: 8 kW/t (60 kW / 7.4 t)

Stronger than 28% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Zettelmeyer ZL1001 have?

The Zettelmeyer ZL1001 delivers 85.2 hp.

How much does the Zettelmeyer ZL1001 weigh?

The unladen weight is 7,420 kg.

What engine does the Zettelmeyer ZL1001 have?

4 cylinders, 4,087 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
