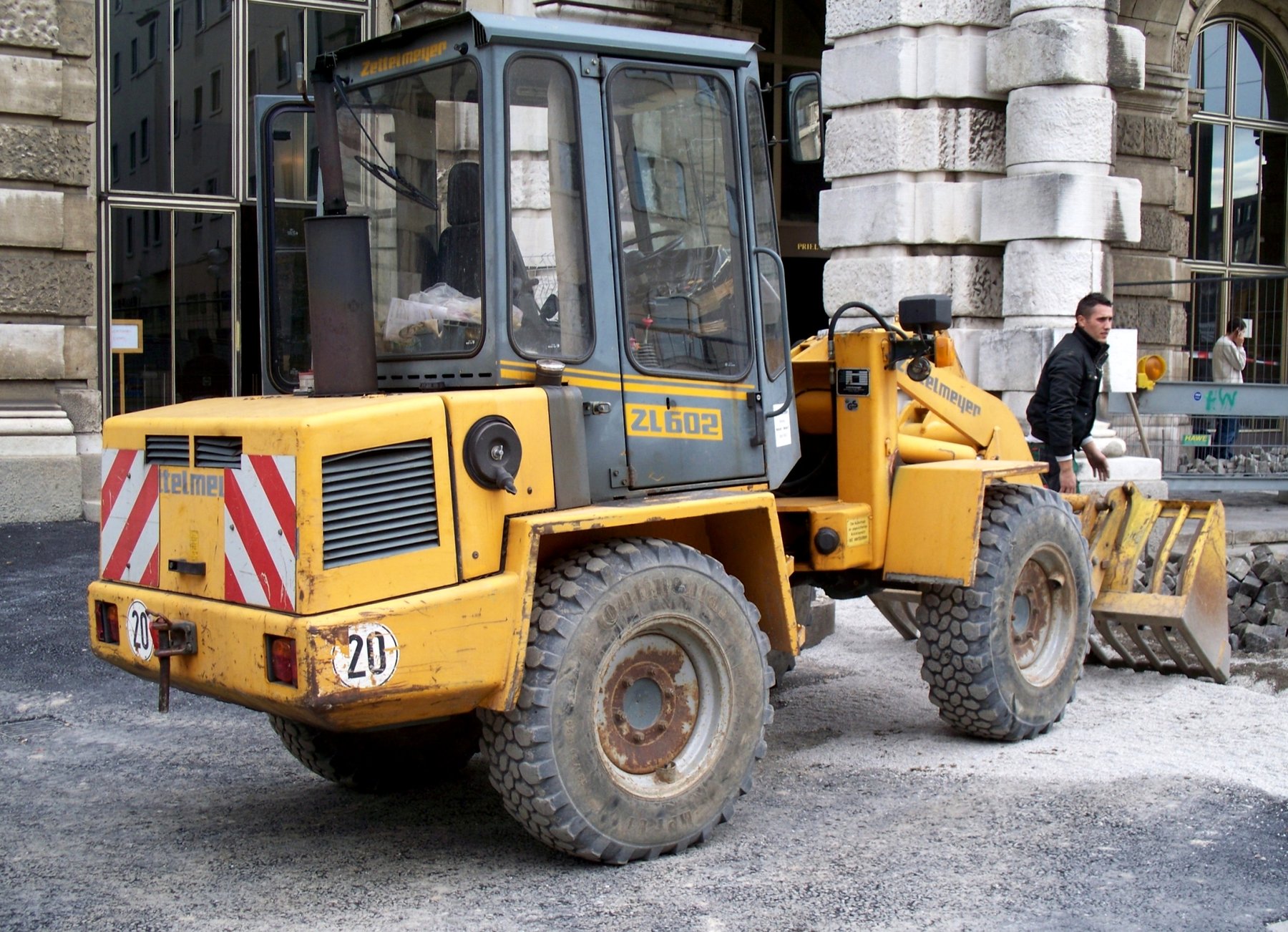

Zettelmeyer ZL602

The ZL602 from Zettelmeyer is part of the Zettelmeyer Wheel Loader series. The engine delivers 60.5 hp (42.5 kW), has 4 cylinders, with a displacement of 2,736.6 cm³. Torque is 200.1 Nm. Rated speed is 2,300 rpm. The unladen weight is 4,599.9 kg. The wheelbase measures 2,002.5 mm. Ground clearance is 481.6 mm. The tank holds 60.2 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,800 rpm. The pump delivers 50.3 l/min. The hydraulic tank holds 60.2 litres. The electrical system runs on 12 V. The engine fitted is the KHD BF4 L 1011T. Tyre size: 12,5-20. The Zettelmeyer Wheel Loader series covers 42 models. Rated output within it ranges from 30 to 306.2 hp; the ZL602 sits at the bottom of that range with 60.5 hp. Its immediate neighbours are the ZL602SL below it with 57.8 hp and the ZL602B above it with 60.8 hp. 50 Zettelmeyer models across 4 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.
