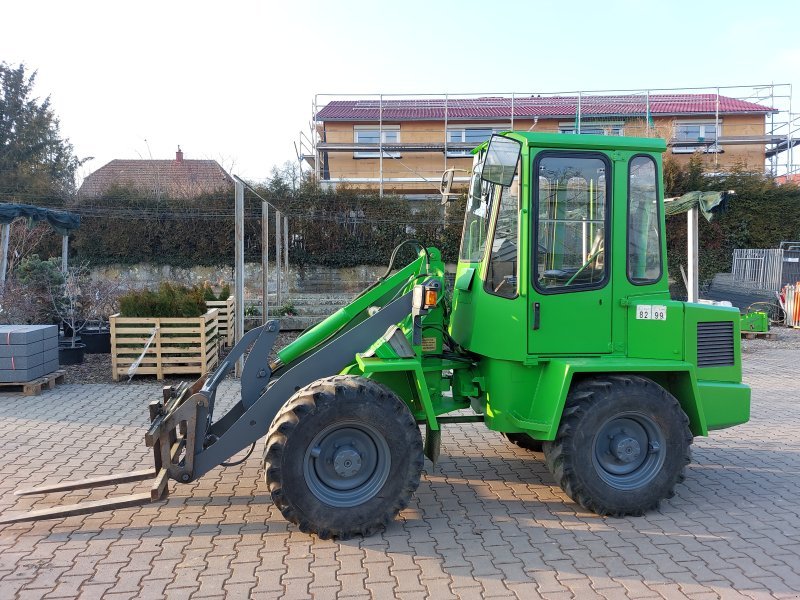

Zettelmeyer ZL402

Series: Zettelmeyer Wheel Loader

Source: https://www.technikboerse.com/bg/gebraucht/kolesen-tovara-25

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the ZL402, Zettelmeyer offers a model from the Zettelmeyer Wheel Loader series. The engine delivers 38.1 hp (27.1 kW), has 3 cylinders, with a displacement of 2,048.4 cm³. Torque is 114 Nm. Rated speed is 2,300 rpm. The unladen weight is 3,401.9 kg. The wheelbase measures 1,850.1 mm. Ground clearance is 307.8 mm. The tank holds 42 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,800 rpm. The pump delivers 32.2 l/min. The hydraulic tank holds 60.2 litres. The electrical system runs on 12 V. The engine fitted is the KHD F 3 L 1011. Tyre size: 10,5-18. The Zettelmeyer Wheel Loader series covers 42 models. Rated output within it ranges from 30 to 306.2 hp; the ZL402 sits at the bottom of that range with 38.1 hp. Its immediate neighbours are the ZL8C below it with 35.4 hp and the ZL402C above it with 38.5 hp. 50 Zettelmeyer models across 4 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelKHD F 3 L 1011correct
Power38.1 hp (27.1 kW)correct
Rated speed2,300 rpmcorrect
Torque114correct
Speed at max. torque1,800 rpmcorrect
Cylinders3correct
Displacement2,048.4 cm³correct
Aspirationnaturalcorrect

Dimensions and weights

Wheelbase1,850.1correct
Ground clearance307.8correct
Unladen weight3,401.9 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmission full power shiftcorrect
Forward gears2correct
Reverse gears2correct
Tyre size10.5-18correct
System voltage12 Vcorrect

Working data

Pump flow32.2 l/mincorrect
Hydraulic oil capacity60.2 lcorrect
Fuel tank capacity42 lcorrect

Other data

Height2,490.2correct

Where this model stands

Power-to-weight ratio: 8 kW/t (27 kW / 3.4 t)

Stronger than 3% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Zettelmeyer ZL402 have?

The Zettelmeyer ZL402 delivers 38.1 hp.

How much does the Zettelmeyer ZL402 weigh?

The unladen weight is 3,402 kg.

What engine does the Zettelmeyer ZL402 have?

3 cylinders, 2,048 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
