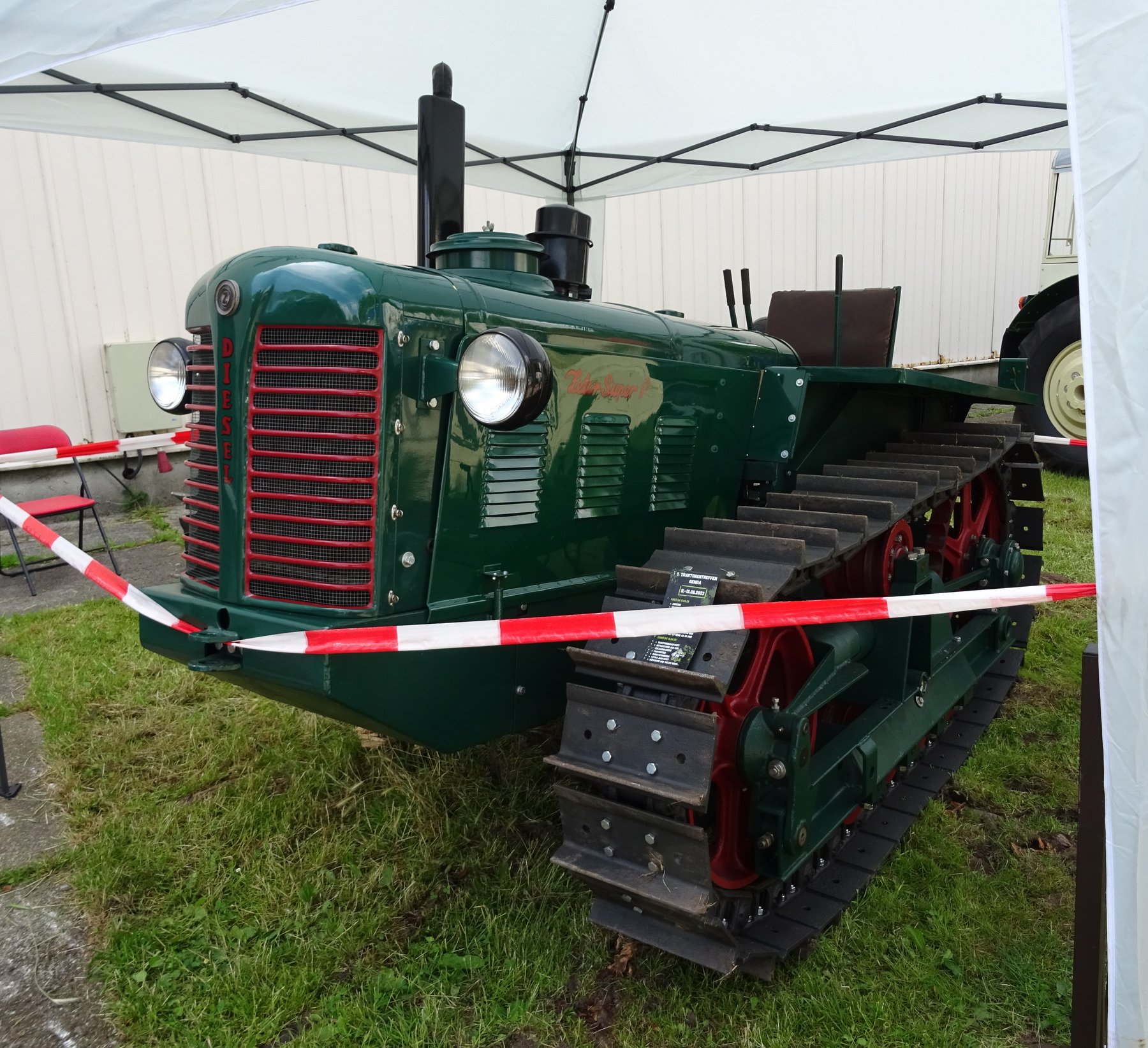

Zetor Super-P

Built: 1956–1958 · Series: Super-Serie

More machines from model year 1956

Source: https://commons.wikimedia.org/w/index.php?curid=134142162 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the Super-P, Zetor offers a model from the Super series. Production: 1956–1958. The engine delivers 42 hp (30.9 kW), has 4 cylinders, with a displacement of 4,156 cm³. Rated speed is 1,500 rpm. The machine is 3,330 mm long, 1,640 mm wide and 2,200 mm high. The unladen weight is 4,495 kg. The wheelbase measures 1,705 mm. Ground clearance is 340 mm. Top speed is 15 km/h. The tank holds 68 litres. Transmission: 5 V/1 R. The engine is water-cooled. Tyres: front 330 x 1.730, rear 330 x 1.730. The fuel is diesel. The bore measures 105 mm. The stroke is 120 mm. The compression ratio is 16.5:1. Construction: unit construction (no separate frame). The gearbox offers 5 forward gears. There are also 1 reverse gears. Injection pressure is 135 bar. Around 4.200 units were built. The Super-Serie series covers 3 models. Rated output within it ranges from 42 to 50 hp; the Super-P sits at the bottom of that range with 42 hp. Its immediate neighbours are the Super 50 above it with 50 hp. Unladen weight within it ranges from 2,740 to 4,495 kg; here the Super-P sits at the top of that range with 4,495 kg. 371 Zetor models across 27 series are on record.

Zetor Super range: collective page of Czechoslovak tractors 35 Super, Super 50 and Super-P from Brno, four-cylinder 4,156 cm³ diesels, 31 to 37 kW

The Super range from Zetor, with the models 35 Super, Super 50 and Super-P, was built at the Czechoslovak plant in Brno; Zetor was founded in 1946 as a state tractor maker and ranked among the Eastern Bloc's largest tractor builders in the post-war era. The numbers 35 and 50 denote the approximate power class, while the P suffix indicates a particular equipment variant.

Read on 3 more paragraphs

The register lists 3 versions with 30.9 to 36.8 kW from four-cylinder diesel engines of 4,156 cm³, unladen weights of 2,740 to 4,495 kg, lengths of 3,330 to 3,360 mm, widths of 1,640 to 1,875 mm and heights of 1,760 to 2,200 mm; torque ranges from 222 to 240 Nm at rated speeds of 1,500 to 1,650 rpm.

Zetor Super-range tractors were widely used, rugged and easy-to-maintain standard tractors for farms across Czechoslovakia and the wider Eastern Bloc, and were exported in large numbers; the brand is still associated today with durable, mechanically simple engineering. That reputation for simplicity is one reason so many examples have survived in working order to this day.

When buying used, condition of the injection pump and cooling, the clutch and gearbox, and rust on sheet-metal parts and mudguards all matter; since the range has not been produced for decades, spare parts are mainly available through the used-parts market and Eastern European Zetor specialists.

Sources: SpecCodex register, model data: Zetor Super, Zetor

Technical data

Engine

Fuel	dieselcorrect
Power	42 hp (30.9 kW)correct
Rated speed	1,500 rpmcorrect
Cylinders	4correct
Displacement	4,156 cm³correct
Bore	105 mmcorrect
Stroke	120 mmcorrect
Compression ratio	16.5correct
Injection pressure	135 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,330 mmcorrect
Width	1,640 mmcorrect
Height	2,200 mmcorrect
Wheelbase	1,705 mmcorrect
Ground clearance	340 mmcorrect
Unladen weight	4,495 kgcorrect

Drivetrain and chassis

Drive	chain drivecorrect
Gearbox	5 V/1 Rcorrect
Forward gears	5correct
Reverse gears	1correct
Front tyres	330 x 1.730correct
Rear tyres	330 x 1.730correct
Top speed	15 km/hcorrect

Working data

Fuel tank capacity	68 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	4,200correct

Where this model stands

Power-to-weight ratio: 6.9 kW/t (31 kW / 4.5 t)

Power class: Universal (40–100 hp)

Stronger than 27% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Zetor Super-P have?

The Zetor Super-P delivers 42 hp.

How much does the Zetor Super-P weigh?

The unladen weight is 4,495 kg.

What engine does the Zetor Super-P have?

4 cylinders, 4,156 cm³ displacement, Diesel.

How fast does the Zetor Super-P go?

Top speed is 15 km/h.

What are the dimensions of the Zetor Super-P?

3,330 mm × 1,640 mm × 2,200 mm.

When was the Zetor Super-P built?

Production years: 1956–1958.
