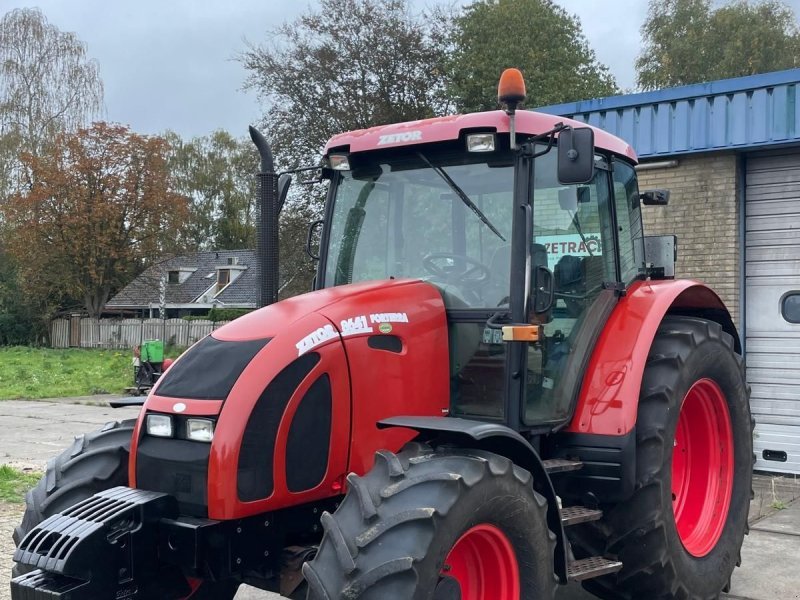

Zetor 8641 (58.8 kW) – specifications
Built: 2002–2007 · Series: Forterra-II-Baureihe
With the 8641, Zetor offers a model from the Forterra-II series. Production: 2002–2007. The engine delivers 80 hp (58.8 kW), has 4 cylinders, with a displacement of 4,156 cm³. Torque is 312 Nm. Rated speed is 2,200 rpm. The machine is 4,245 mm long, 2,190 mm wide and 2,780 mm high. The unladen weight is 4,255 kg. The wheelbase measures 2,397 mm. Ground clearance is 362 mm. Top speed is 40 km/h. The tank holds 180 litres. Transmission: 24 V/18 R. The engine is water-cooled. Tyres: front 14.9 R 24 AS, rear 18.4 R 38 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 120 mm. Maximum torque is reached at 1,400 rpm. Construction: unit construction (no separate frame). The gearbox offers 24 forward gears. There are also 18 reverse gears. The linkage is category II. The PTO runs at 540/750/1000 rpm. The Forterra-II-Baureihe series covers 5 models. Rated output within it ranges from 80 to 120 hp; the 8641 sits at the bottom of that range with 80 hp. Its immediate neighbours are the 9641 above it with 90 hp. Unladen weight within it ranges from 4,255 to 4,765 kg; here the 8641 sits at the bottom of that range with 4,255 kg. 371 Zetor models across 27 series are on record.
Data for the version built 2002–2007 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Zetor Forterra II range – five Czech tractors from 8641 to 11741: 58.8 to 88.3 kW (80 to 120 hp), four- and six-cylinder diesels, 4,255 to 4,765 kg unladen weight
Zetor has built its tractors since 1946 in Brno in the Czech Republic and ranks among Europe's long-established agricultural machinery makers. The Forterra II range, with the types 8641, 9641, 10641, 11441 and 11741, forms the second generation of this mid-range line, the first two digits of the type designation giving an approximate horsepower figure. The smaller types run four-cylinder, the larger ones six-cylinder diesel engines.
Read on 3 more paragraphs
The register lists here 5 versions with 58.8 to 88.3 kW (80 to 120 hp) from four- and six-cylinder engines of 4,156 to 6,001 cm³ and torque from 312 to 469 Nm at a rated speed of 2,200 to 2,350 rpm. Unladen weights range from 4,255 to 4,765 kg, length from 4,240 to 5,305 mm, width from 2,164 to 2,190 mm and height from 2,717 to 2,780 mm.
With the Forterra range Zetor holds its position as a value-conscious mid-range brand, chiefly in Central and Eastern Europe and in export markets, where straightforward technology and affordable parts supply count against Western European makers. The second generation reworked the cab and hydraulics compared with the original Forterra.
Buying a used Forterra II calls for checking the cab mounts, the tightness of the hydraulic valves and, on the six-cylinder types, cooling performance and the turbocharger. Parts for Zetor tractors are well available through the brand's dealer network, as Zetor still builds tractors in Brno today.
Sources: SpecCodex register, model data: Zetor Forterra-II-Baureihe, Zetor (manufacturer)
Versions of this model in the register
Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.
| Version | Built | kW | EU type approval | Origin |
|---|---|---|---|---|
| 8641 | 1999–2002 | 59.6 | — | Reference work (Wikipedia/Wikibooks) |
| ● 8641 | 2002–2007 | 58.8 | — | Reference work (Wikipedia/Wikibooks) |
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 80 hp (58.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 312 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,156 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,245 mmcorrect |
|---|---|
| Width | 2,190 mmcorrect |
| Height | 2,780 mmcorrect |
| Wheelbase | 2,397 mmcorrect |
| Ground clearance | 362 mmcorrect |
| Unladen weight | 4,255 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/18 Rcorrect |
| Forward gears | 24correct |
| Reverse gears | 18correct |
| Front tyres | 14.9 R 24 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 180 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/750/1000 rpmcorrect |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 13.8 kW/t (59 kW / 4.3 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
