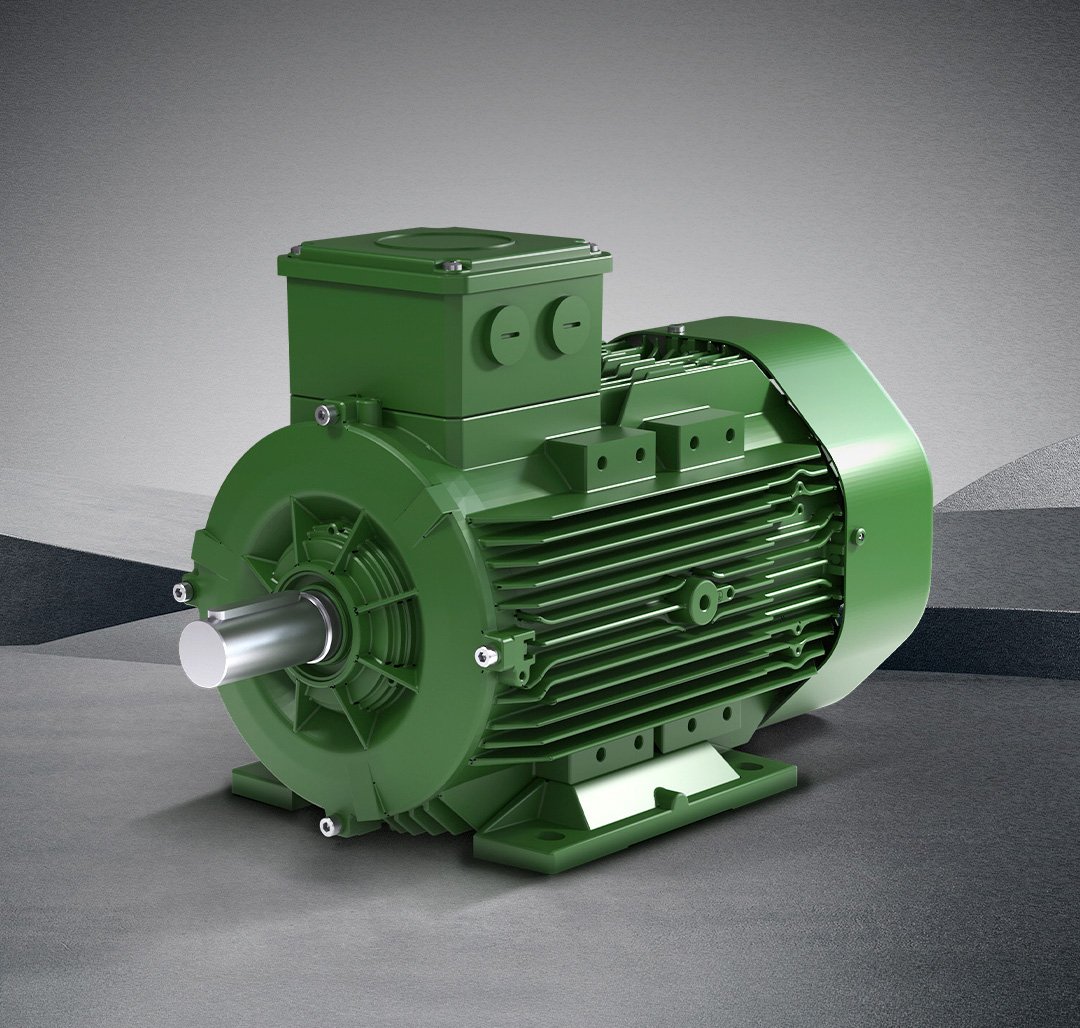

WAT Q3H160L2C

Series: Q3H

Source: wat.com.tr

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The WAT Q3H160L2C is a three-phase induction motor. The rated output is 18.5 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 400 V. The housing is frame size 160 L in foot-mounted form. The protection class is IP55. The efficiency is 92.4 per cent at full load, 92.5 per cent at 75 per cent load and 91.6 per cent at half load. The mounting arrangement to IEC 60034-7 is V1. The motor is built in Turkey. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the WAT range ranges from 0.75 to 22 kW; the Q3H160L2C sits in the upper part of that range with 18.5 kW. Its immediate neighbours are the Q3H160M2D below it with 15 kW and the Q3H160L2D above it with 22 kW. 11 WAT models are on record.

WAT – Q3H series at a glance

The Q3H series from WAT comprises 11 models in the register, in the Electric motors group. Rated power ranges from 1 to 22 kW. Listed in the register: Q3H112M2D, Q3H132M2A, Q3H132S2DE, Q3H160L2C.

Sources: SpecCodex-Register (eigene Daten)

Technical data

Engine

Rated output18.5 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size160 L (foot)correct
Mounting (IEC 60034-7)V1correct
Efficiency at full load92.4 %correct
Efficiency at 75 % load92.5 %correct
Efficiency at half load91.6 %correct

Origin and approval

Country of manufactureTurkeycorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the WAT Q3H160L2C have?

The WAT Q3H160L2C delivers 18.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
