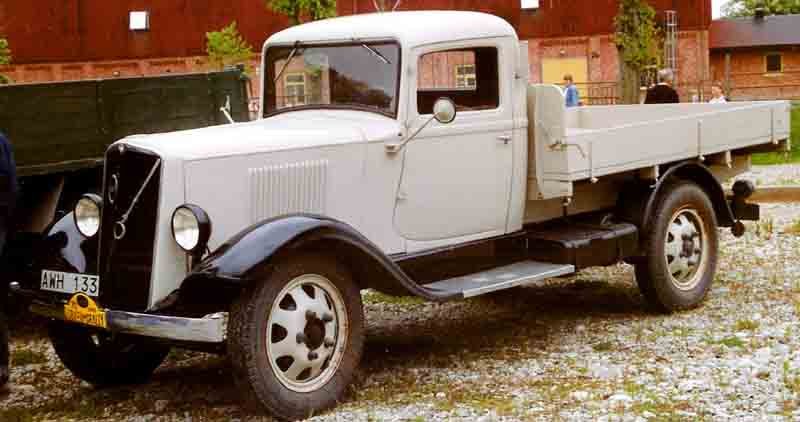

Volvo LV76-series
Built: 1934-1940 · Series: Other models
← Predecessor: LV60-series · Successor: Sharpnose →
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The LV76 series is a light Volvo truck that was built from 1934 to 1940. It replaced the LV60 series; the register names the Sharpnose as its successor. By this time Volvo had already become the leading truck maker in the Nordic countries, and the LV76 is among the models that carried that rise.
Two steps can be told apart in the engine: the 3.7L EB I6 in 1934 and the 3.7L EC I6 from 1935 to 1940. Both are straight-sixes of the same displacement, the EC being the developed version. The wheelbase lies between 3.4 m - 3.8 m and the gross weight between 3000 kg - 4750 kg. The gearbox is manual with 4 speeds. Vehicle class: light truck.
Compared with the LV60, the span of gross weights is shifted downward; for the heavier jobs a mid-sized Volvo series was ready at the same time.
Volvo – other commercial vehicles: the collective page of trucks and chassis outside the named ranges, from the F4/F6/F7 class through the F10, F12 and F16 to bus and special chassis, 40 to 350 kW
This page gathers Volvo commercial vehicles the register could not assign to a named range – mostly chassis and trucks of the cab-over F range, plus a handful of bus and special chassis with the B designation. Volvo, founded in Gothenburg in 1927, today runs its commercial-vehicle business as Volvo Trucks. The F range (F4/F6/F7 light, F10/F12/F16 heavy) replaced the bonneted models in the 1970s and shaped European long-haul transport until it was replaced by the FH/FM in 1993; the number after the F roughly denotes, by the maker's logic, the engine class, the following digits the axle configuration (6X2, 6X4, 8X4) and wheelbase, VTA the turbocharged, intercooled engine. The B types are chassis for buses and special bodies of the same family.
Read on 3 more paragraphs
The register lists here 230 versions with 40 to 349.5 kW from four- to six-cylinders of 1,990 to 16,120 cm³, unladen weights from 1,900 to 25,700 kg, lengths from 5,330 to 12,000 mm and widths from 1,720 to 2,800 mm.
Alongside MAN's F90 and Scania's 2 and 3 series, the F range was the backbone of European long-haul transport in the 1980s, and its safety cab and TD engine programme laid the technical foundation for the later FH generation; the B chassis remained a niche beside Volvo's own bus marques.
On used F-range vehicles, the condition of the frame and cab mounting, turbocharger and intercooler, clutch and the mechanical or semi-automatic gearbox count, and on chassis the body as well; corrosion on the side members and cab floor is common on the oldest model years, and parts run through the Volvo network and independent commercial-vehicle parts dealers.
Sources: SpecCodex register, model data: Volvo (weitere Modelle), Volvo Trucks (manufacturer)
Technical data
Engine
| Engine | 3.7L EB I6 (1934) 3.7L EC I6 (1935–1940)correct |
|---|
Dimensions and weights
| Wheelbase | 3.4 m - 3.8 mcorrect |
|---|---|
| Unladen weight | 3000 kg - 4750 kg (gross weight)correct |
Drivetrain and chassis
| Gearbox | 4 speed non-syncro manual gearboxcorrect |
|---|
Origin and approval
| Vehicle class | Light truckcorrect |
|---|
Other data
| Predecessor | Volvo LV60-seriescorrect |
|---|---|
| Successor | Volvo Sharpnosecorrect |
| Sweden | Förlagshusetcorrect |
Frequently asked questions
When was the Volvo LV76-series built?
Production years: 1934-1940.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 4 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
