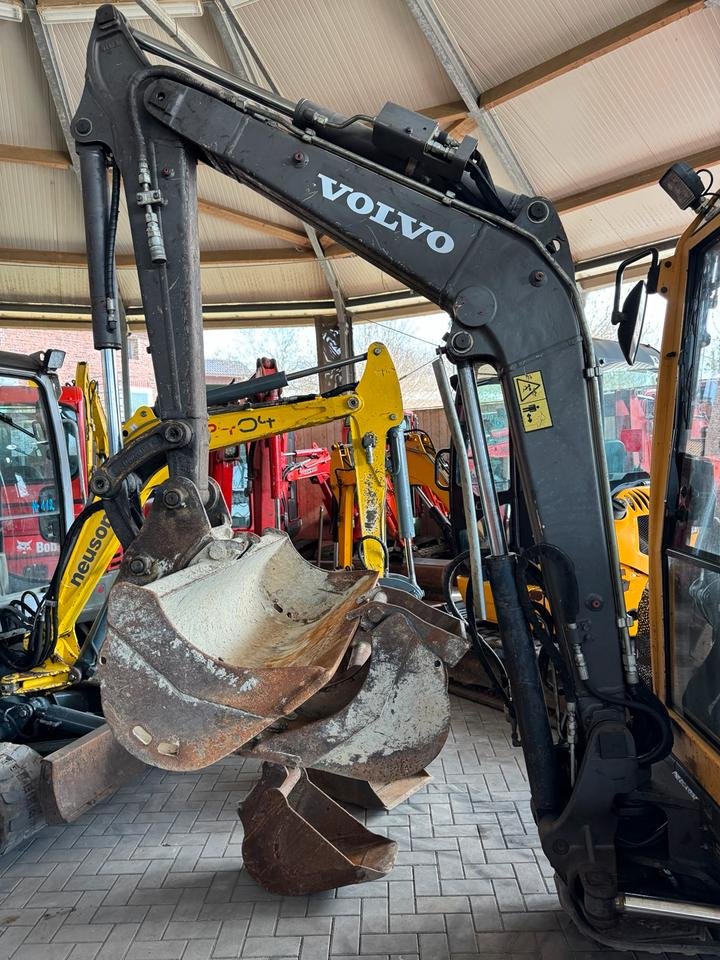

Volvo ECR28

Series: Volvo Mini Excavator

Source: https://www.kleinanzeigen.de/s-anzeige/minibagger-volvo-ecr2

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Mini Excavator series from Volvo includes the ECR28. The engine delivers 19.6 hp (13.6 kW), has 3 cylinders, with a displacement of 1,114.3 cm³. Torque is 65.6 Nm. Rated speed is 2,200 rpm. The unladen weight is 2,727 kg. Ground clearance is 280.4 mm. The tank holds 49.2 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 64.4 l/min. The hydraulic tank holds 37.1 litres. Working pressure is 210 bar. The cooling system holds 4.2 litres. The oil fill is 3.4 litres. The electrical system runs on 12 V. The engine fitted is the D1,2. The Volvo Mini Excavator series covers 28 models. Rated output within it ranges from 15.2 to 63.9 hp; the ECR28 sits at the bottom of that range with 19.6 hp. Its immediate neighbours are the EC15BXR below it with 19.3 hp and the EC 35 D above it with 25.1 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD1.2correct
Power19.6 hp (13.6 kW)correct
Rated speed2,200 rpmcorrect
Torque65.6correct
Speed at max. torque1,600 rpmcorrect
Cylinders3correct
Displacement1,114.3 cm³correct
AspirationNaturalcorrect
Coolant capacity4.2 lcorrect
Engine oil capacity3.4 lcorrect

Dimensions and weights

Ground clearance280.4correct
Unladen weight2,727 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow64.4 l/mincorrect
Hydraulic oil capacity37.1 lcorrect
Hydraulic pressure210 barcorrect
Fuel tank capacity49.2 lcorrect

Other data

Height2,441.4correct

Where this model stands

Power-to-weight ratio: 5 kW/t (14 kW / 2.7 t)

Stronger than 29% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo ECR28 have?

The Volvo ECR28 delivers 19.6 hp.

How much does the Volvo ECR28 weigh?

The unladen weight is 2,727 kg.

What engine does the Volvo ECR28 have?

3 cylinders, 1,114 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
