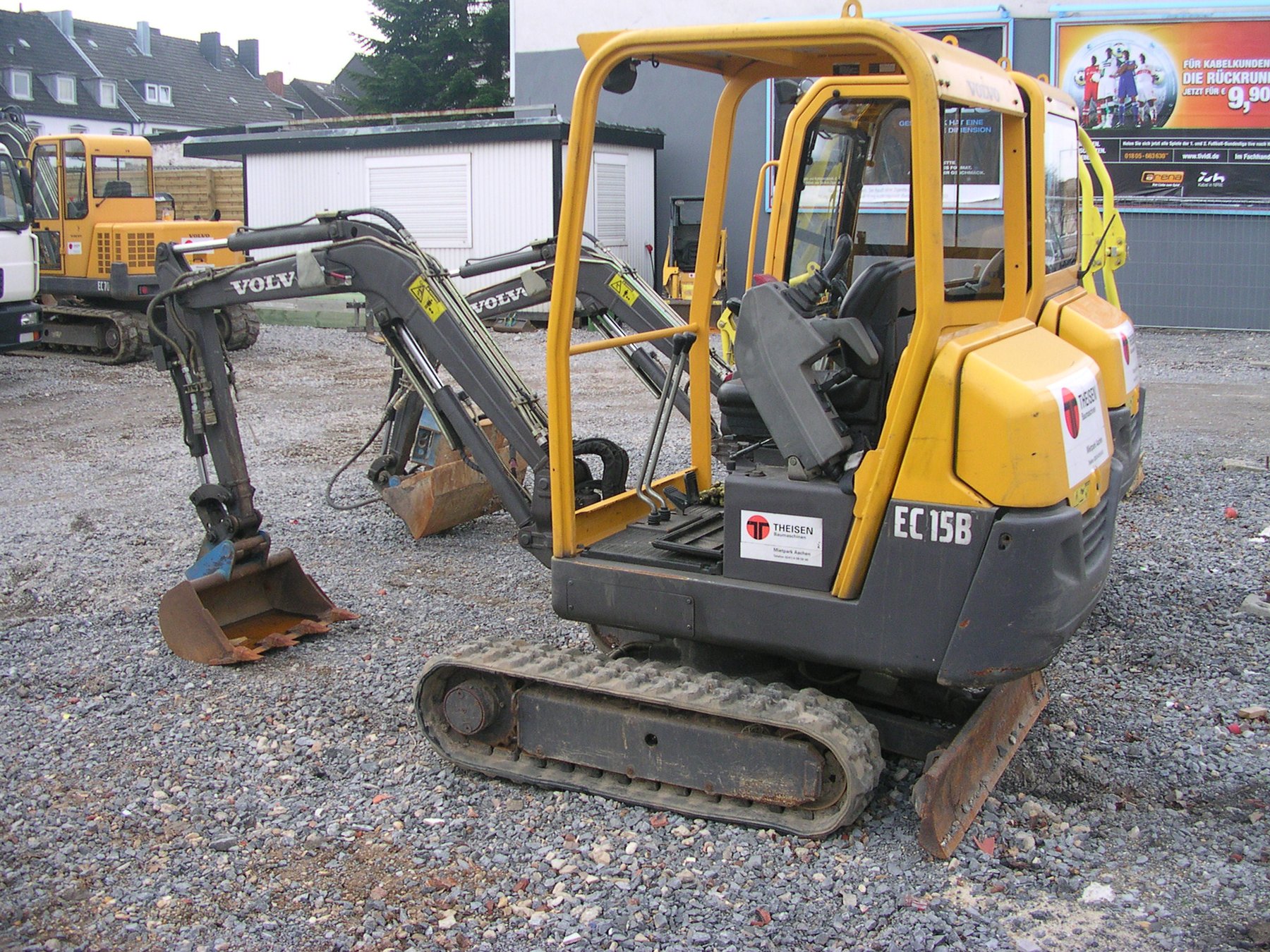

Volvo EC15B

With the EC15B, Volvo offers a model from the Volvo Mini Excavator series. The engine delivers 19.3 hp (11.6 kW), has 3 cylinders, with a displacement of 950.4 cm³. Torque is 54.1 Nm. Rated speed is 2,800 rpm. The unladen weight is 1,603 kg. Ground clearance is 210.3 mm. The tank holds 21.2 litres. Maximum torque is reached at 1,850 rpm. The pump delivers 32.2 l/min. The hydraulic tank holds 23.1 litres. Working pressure is 170 bar. The cooling system holds 4.5 litres. The oil fill is 3.8 litres. The engine fitted is the L3E. The Volvo Mini Excavator series covers 28 models. Rated output within it ranges from 15.2 to 63.9 hp; the EC15B sits at the bottom of that range with 19.3 hp. Its immediate neighbours are the EC20 Variable Width Undercarriage below it with 19.1 hp and the ECR28 above it with 19.6 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.
