Volvo EC460C

Series: Volvo Hydraulic Excavator

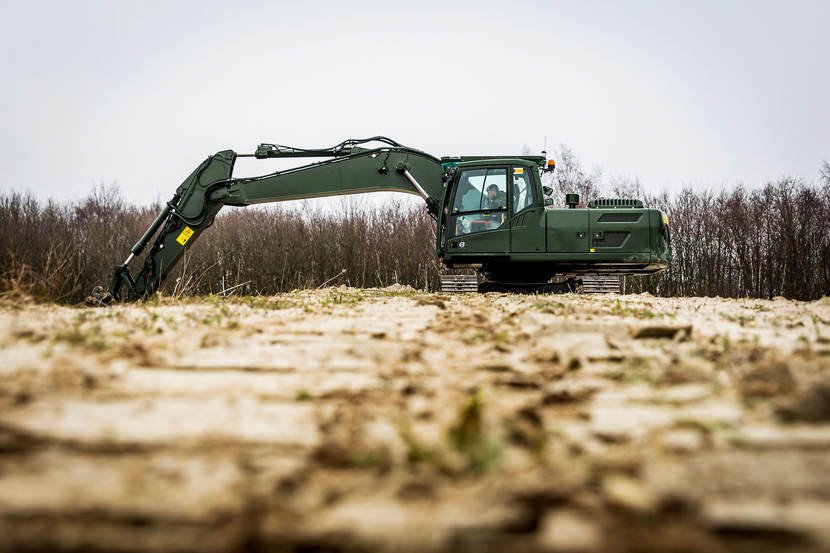

The photo shows the EC220D from the same series. Source: https://commons.wikimedia.org/w/index.php?curid=156059474 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo EC460C is a model in the Volvo Hydraulic Excavator series. The engine delivers 333.6 hp (234.9 kW), has 6 cylinders, with a displacement of 12,093.7 cm³. Torque is 1,720.5 Nm. Rated speed is 1,800 rpm. The unladen weight is 47,128.2 kg. Ground clearance is 551.7 mm. The tank holds 685.2 litres. Maximum torque is reached at 1,350 rpm. The pump delivers 688.9 l/min. The hydraulic tank holds 525 litres. Working pressure is 313.7 bar. The cooling system holds 60.2 litres. The oil fill is 42 litres. The electrical system runs on 24 V. The engine fitted is the D12D EAE3. The Volvo Hydraulic Excavator series covers 53 models. Rated output within it ranges from 99.4 to 534.3 hp; the EC460C sits in the middle of that range with 333.6 hp. Its immediate neighbours are the EC380E below it with 312.8 hp and the EC480D above it with 365 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD12D EAE3correct
Power333.6 hp (234.9 kW)correct
Rated speed1,800 rpmcorrect
Torque1,720.5correct
Speed at max. torque1,350 rpmcorrect
Cylinders6correct
Displacement12,093.7 cm³correct
AspirationTurbocharged with Intercoolercorrect
Coolant capacity60.2 lcorrect
Engine oil capacity42 lcorrect

Dimensions and weights

Ground clearance551.7correct
Unladen weight47,128.2 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow688.9 l/mincorrect
Hydraulic oil capacity525 lcorrect
Hydraulic pressure313.7 barcorrect
Fuel tank capacity685.2 lcorrect

Other data

Height3,258.3correct

Where this model stands

Power-to-weight ratio: 5 kW/t (235 kW / 47.1 t)

Stronger than 87% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC460C have?

The Volvo EC460C delivers 334 hp.

How much does the Volvo EC460C weigh?

The unladen weight is 47,128 kg.

What engine does the Volvo EC460C have?

6 cylinders, 12,094 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
