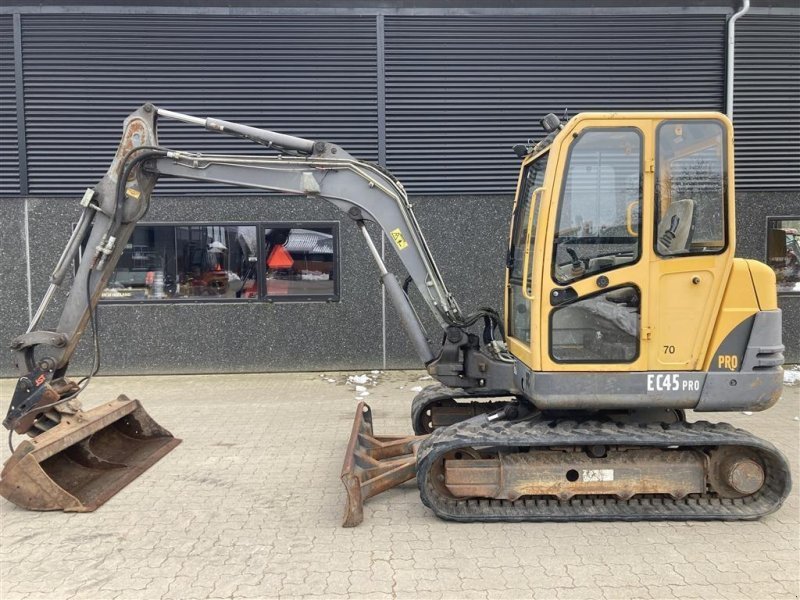

Volvo EC45

The EC45 from Volvo is part of the Volvo Mini Excavator series. The engine delivers 42.2 hp (27.2 kW), has 4 cylinders, with a displacement of 2,290.9 cm³. Torque is 137.1 Nm. Rated speed is 2,000 rpm. The unladen weight is 4,250 kg. Ground clearance is 320 mm. The tank holds 66.2 litres. Maximum torque is reached at 1,400 rpm. The pump delivers 99.2 l/min. The hydraulic tank holds 62.1 litres. Working pressure is 260 bar. The cooling system holds 8.3 litres. The oil fill is 7.9 litres. The electrical system runs on 12 V. The engine fitted is the K4N. The Volvo Mini Excavator series covers 28 models. Rated output within it ranges from 15.2 to 63.9 hp; the EC45 sits in the middle of that range with 42.2 hp. Its immediate neighbours are the EC35 below it with 37.5 hp and the EC 60 E above it with 44.9 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.
