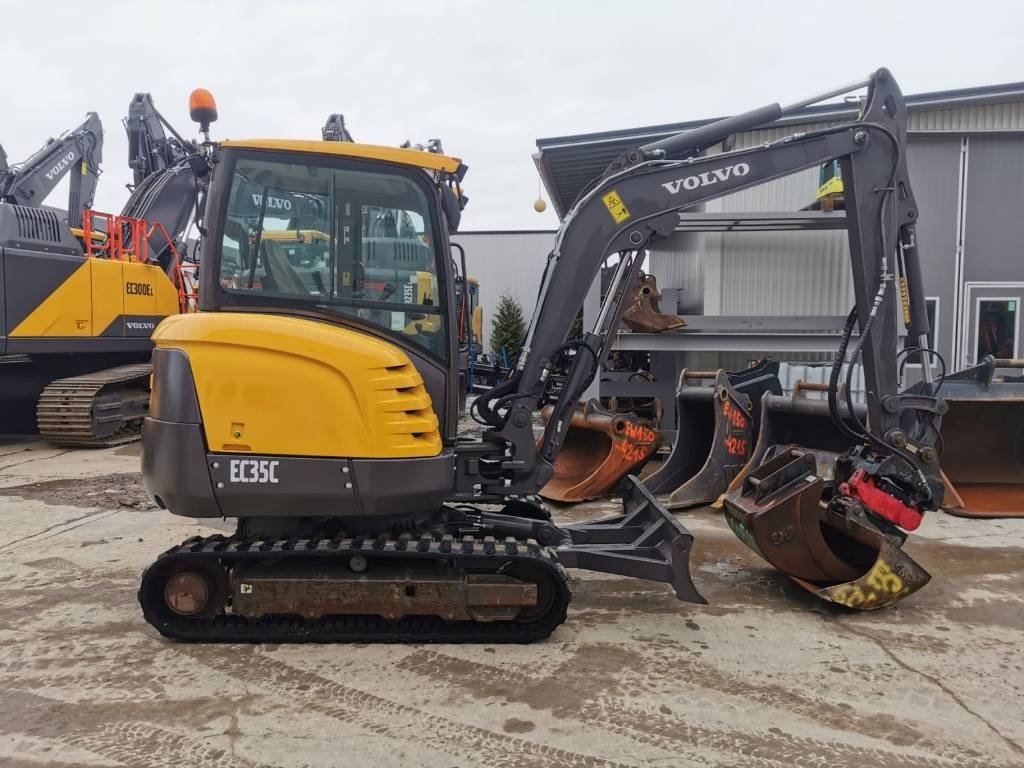

Volvo EC35C

Series: Volvo Mini Excavator

Source: https://pantrading.com/en/used-mini-excavators/volvo-ec35c-2

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Mini Excavator series from Volvo includes the EC35C. The engine delivers 36.8 hp (26 kW), has 4 cylinders, with a displacement of 2,191 cm³. Torque is 138 Nm. Rated speed is 2,200 rpm. The unladen weight is 3,435 kg. Ground clearance is 259.1 mm. The tank holds 60.2 litres. Maximum torque is reached at 1,320 rpm. The pump delivers 100.3 l/min. The hydraulic tank holds 50.3 litres. Working pressure is 240 bar. The cooling system holds 6.1 litres. The oil fill is 8.7 litres. The electrical system runs on 12 V. The engine fitted is the D2,2DCAE2. The Volvo Mini Excavator series covers 28 models. Rated output within it ranges from 15.2 to 63.9 hp; the EC35C sits in the middle of that range with 36.8 hp. Its immediate neighbours are the ECR38 below it with 28 hp and the EC35 above it with 37.5 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD2.2DCAE2correct
Power36.8 hp (26 kW)correct
Rated speed2,200 rpmcorrect
Torque138correct
Speed at max. torque1,320 rpmcorrect
Cylinders4correct
Displacement2,191 cm³correct
AspirationNaturalcorrect
Coolant capacity6.1 lcorrect
Engine oil capacity8.7 lcorrect

Dimensions and weights

Ground clearance259.1correct
Unladen weight3,435 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow100.3 l/mincorrect
Hydraulic oil capacity50.3 lcorrect
Hydraulic pressure240 barcorrect
Fuel tank capacity60.2 lcorrect

Other data

Height2,478correct

Where this model stands

Power-to-weight ratio: 7.6 kW/t (26 kW / 3.4 t)

Stronger than 79% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC35C have?

The Volvo EC35C delivers 36.8 hp.

How much does the Volvo EC35C weigh?

The unladen weight is 3,435 kg.

What engine does the Volvo EC35C have?

4 cylinders, 2,191 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
