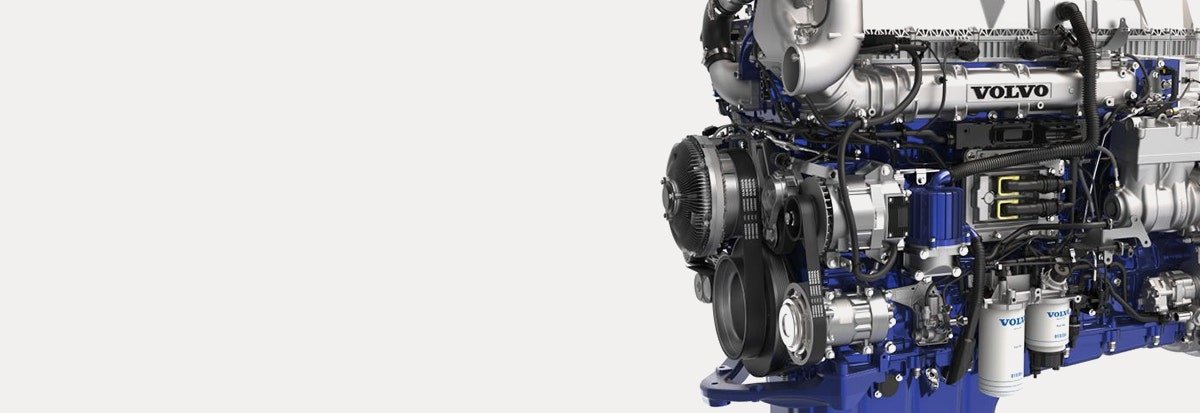

Volvo Construction Equipment D13J – specifications
Built: 2014-2026 · Series: Other models
The Volvo Construction Equipment D13J is a machine built by Volvo Construction Equipment. Production: 2014-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 218 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a variable-geometry turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Volvo Construction Equipment range ranges from 191 to 393 kW; the D13J sits at the bottom of that range with 218 kW. Its immediate neighbours are the D8M below it with 191 kW and the D13H above it with 247 kW. 12 Volvo Construction Equipment models across 4 series are on record.
Data for the version built 2014-2026 · Data origin: Official register · sources
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo Construction Equipment – other nonroad diesel engines: D8 to D16 outside the named ranges, 191 to 393 kW from 7.7 to 16.1-litre displacement, Tier 4
Volvo Construction Equipment, headquartered in Eskilstuna and Gothenburg, is the Volvo Group's construction-machinery division, sharing the technical base of its D engines with the group's truck and industrial engines but calibrating them independently for wheel loaders, articulated haulers and excavators. This page gathers the engines the register could not assign to a named range, from the D8, D11, D13 and D16 families – the number in the name roughly matches the displacement in litres, as confirmed by the engine family codes with 7.7, 10.8, 12.8 and 16.1 litres.
Read on 3 more paragraphs
The register lists here 8 versions with 191 to 393 kW rated output at 1,800 to 2,240 rpm, all inline six-cylinder engines with 110 to 144 mm bore and 135 to 165 mm stroke. Seven of the eight engines use a variable-geometry turbocharger, one a simple wastegate unit. The emission stage splits into Tier 4 (Final or Phase-in) with 5 and Interim Tier 4 with 3 versions, the power category is uniformly 130 to 560 kW. Maximum torque runs from 1,246 to 2,570 Nm at 1,000 to 1,450 rpm, model years from 2012 to 2026; the range is certified for both the other states and California.
Engines of these ranges power Volvo CE's heavy construction-machinery programme – wheel loaders, articulated haulers and large excavators used in quarrying, open-pit mining and earthmoving. Unlike the road engines of Volvo's sister brands, D engines in construction machinery are tuned for high pulling power at low speeds and long service life under varying load.
On a used purchase, the condition of the variable-geometry turbocharger and its actuation, the tightness of the exhaust gas recirculation and charge-air cooler, oil consumption, and operating hours relative to the machine's history all matter. Parts and service run through the Volvo CE dealer network.
Sources: SpecCodex register, model data: Volvo Construction Equipment (weitere Nonroad-Dieselmotoren), Volvo Construction Equipment (manufacturer), EPA-Zertifizierungsdaten Motoren
Technical data
Engine
| Engine code | 13-49correct |
|---|---|
| Engine family | EVSXL12.8T4Fcorrect |
| Engine families | KVSXL12.8T4F; TVSXL12.8STV; MVSXL12.8T4F; GVSXL12.8T4F; PVSXL12.8T4F; HVSXL12.8T4F; NVSXL12.8T4F; EVSXL12.8T4F; RVSXL12.8T4F; FVSXL12.8T4F; JVSXL12.8T4F; LVSXL12.8T4F; SVSXL12.8T4Fcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 218 kWcorrect |
| Power band | 130<=kW<=560correct |
| Rated speed | 1,900 rpmcorrect |
| Maximum torque | 2,071 N·mcorrect |
| Speed at max. torque | 1,000 rpmcorrect |
| Cylinders | 6correct |
| Cylinder layout | in linecorrect |
| Bore | 131 mmcorrect |
| Stroke | 158 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Variable Geometry Turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | 13-49correct |
|---|---|
| Built from | 2014correct |
| Built to | 2026correct |
| Model year from | 2014correct |
| Model year to | 2026correct |
| Sales region | bothcorrect |
