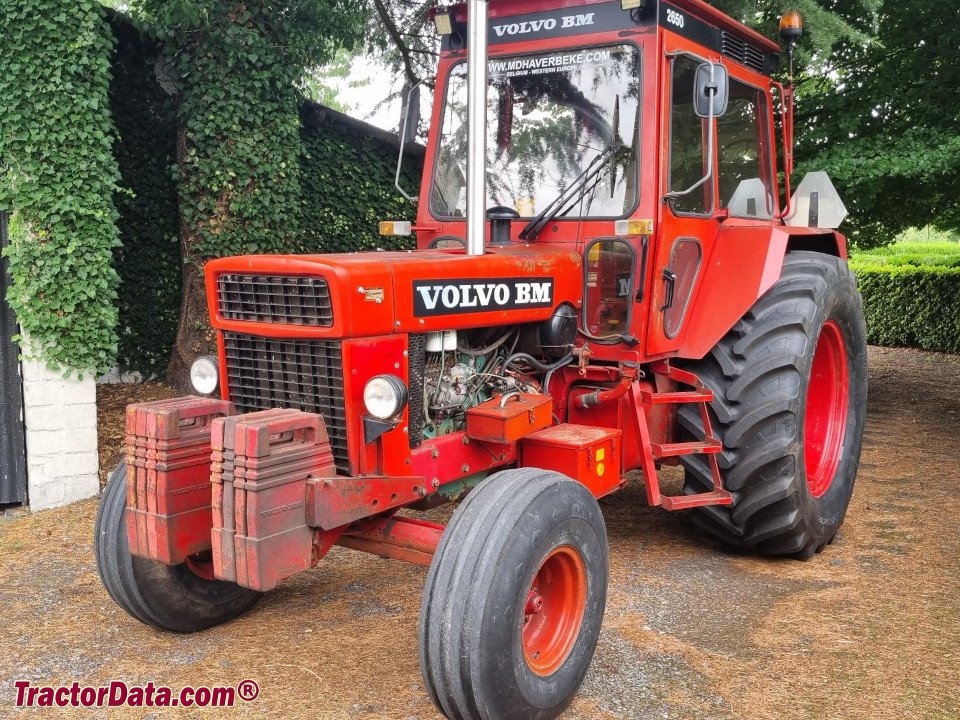

Volvo Bm 2650
Built: 1978–1984 · Series: Other models
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Volvo BM – other models: collective page of Swedish tractors outside the named ranges, from the Buster and Boxer to the Victor and Bison, 21 to 103 kW, Volvo and Perkins engines
This page gathers the Volvo BM tractors the register could not assign to a named range, with the animal-named ranges Buster, Boxer, Victor and Bison as well as numerous T types. Volvo BM was formed in 1950 from the merger of Volvo's tractor operations with the Swedish farm-machinery maker Bolinder-Munktell of Eskilstuna; the agricultural division passed to the Finnish group Valmet in 1979. The T numbers such as the T 650 or T 814 give roughly the engine power in hp, while the Buster, Boxer or Victor suffix denotes the respective model range.
Read on 3 more paragraphs
The register lists here 39 versions with 21 to 103 kW from two- to six-cylinder engines of 1,800 to 5,483 cm³, unladen weights of 1,570 to 7,500 kg, gross weights up to 8,440 kg, lengths of 2,750 to 4,650 mm, widths of 1,249 to 2,450 mm and heights of 2,250 to 3,050 mm; torque ranges from 218 to 485 Nm at rated speeds of 2,200 to 2,300 rpm. Engines came from Volvo, Volvo BM, Perkins and Bolinders.
Until its sale to Valmet, Volvo BM was one of the leading Scandinavian tractor makers, with a strong position in Sweden, Norway and Finland; the rugged models were particularly sought after for forestry and municipal work in the Nordic climate.
When buying used, rust on the frame and cab, the condition of the hydraulic pump and clutch, and on the larger T models the front-axle bearings all matter. Parts partly overlap with later Valmet and Valtra stock, but are increasingly only found through specialists.
Sources: SpecCodex register, model data: Volvo BM (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 140 hp (103 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 485 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,483 cm³correct |
| Bore | 98.47 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 140 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,500 mmcorrect |
|---|---|
| Width | 2,330 mmcorrect |
| Height | 3,000 mmcorrect |
| Wheelbase | 2,740 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 6,600 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 14 V/4 Rcorrect |
| Front tyres | 11.00-16 ASFcorrect |
| Rear tyres | 18.4-38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 523correct |
Where this model stands
Power-to-weight ratio: 15.6 kW/t (103 kW / 6.6 t)
Power class: Large (100–180 hp)
Stronger than 81% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Volvo Bm 2650 have?
The Volvo Bm 2650 delivers 140 hp.
How much does the Volvo Bm 2650 weigh?
The unladen weight is 6,600 kg.
What engine does the Volvo Bm 2650 have?
6 cylinders, 5,483 cm³ displacement, Diesel.
How fast does the Volvo Bm 2650 go?
Top speed is 30 km/h.
What are the dimensions of the Volvo Bm 2650?
4,500 mm × 2,330 mm × 3,000 mm.
When was the Volvo Bm 2650 built?
Production years: 1978–1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
