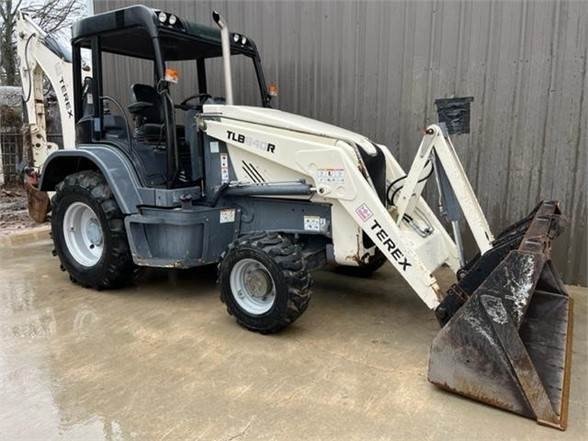

Terex TLB840R

The Terex TLB840R belongs to the Terex Loader Backhoe series. The engine delivers 75 hp (51.7 kW), has 4 cylinders, with a displacement of 3,600.2 cm³. The engine comes from Deutz. Rated speed is 2,200 rpm. The wheelbase measures 2,133.6 mm. Ground clearance is 408.4 mm. The tank holds 140.1 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,300 rpm. The pump delivers 82.1 l/min. The hydraulic tank holds 70 litres. Working pressure is 249.9 bar. The cooling system holds 17 litres. The electrical system runs on 12 V. The engine fitted is the TCD 3,6 L4. The Terex Loader Backhoe series covers 14 models. Rated output within it ranges from 75 to 101.4 hp; the TLB840R sits at the bottom of that range with 75 hp. Its immediate neighbours are the TX750 above it with 76 hp. 377 Terex models across 29 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.
