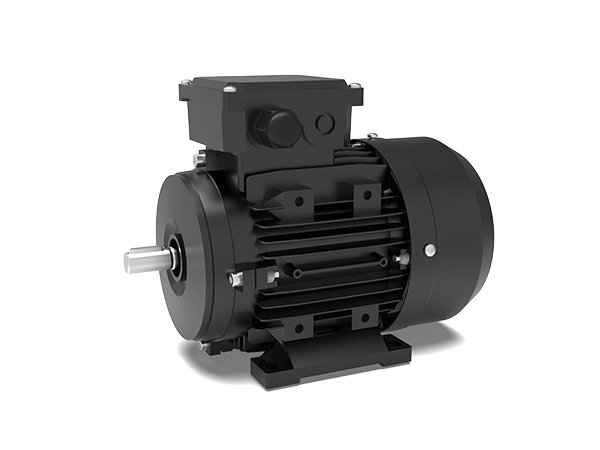

Techtop IE2 132-M4/MS2 132-M4
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Techtop TCI – other electric motors: the collective page of Chinese three-phase motors outside the named models, frame sizes 132 to 280, 5.5 to 37 kW, mostly 400/690 V
This page gathers the Techtop electric motors the Australian energy-efficiency register (GEMS/MEPS) could not assign to a named range. Techtop is a Chinese maker of three-phase motors; the TCI type codes describe the range carried in the register, while one model is additionally listed explicitly under both Techtop's own IE2 132-M4 designation and the parallel MS2 designation.
Read on 3 more paragraphs
The register lists here 9 versions with 5.5 to 37 kW, four- to eight-pole, at voltages mostly of 400/690 V (8 motors). Full-load efficiencies range from 85.5 to 92.5%, and at 75% load from 87 to 92.6%. Frame sizes run from 132 to 280, protection mostly covers the combination of IP55, IP56 and IP66. Manufacturing is exclusively in China, testing mostly followed the 2019 GEMS determination with test method 2-1-1B; mounting for eight of the nine motors falls within the combined B3/B5/V1 spectrum.
With the TCI programme, Techtop covers the mid to large power segment for pumps, fans and compressors, competing with other Chinese standard-motor makers for the same export market to Australia.
When buying used, bearing condition and a checked insulation resistance of the winding, the condition of the terminal box and fan cover, a legible nameplate with frame size, pole count and voltage marking matter, and on the 400/690 V versions the correct star or delta connection for the available mains voltage. Spares run through the Chinese specialist trade.
Sources: SpecCodex register, model data: Techtop (weitere Modelle, MEPS-Registrierungen)
Technical data
Engine
| Rated output | 7.5 kWcorrect |
|---|
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55correct |
| Frame size | 132 M (foot)correct |
| Mounting (IEC 60034-7) | B3correct |
| Efficiency at full load | 88.7 %correct |
| Efficiency at 75 % load | 89.4 %correct |
| Efficiency at half load | 88.5 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Techtop IE2 132-M4/MS2 132-M4 have?
The Techtop IE2 132-M4/MS2 132-M4 delivers 7.5 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
