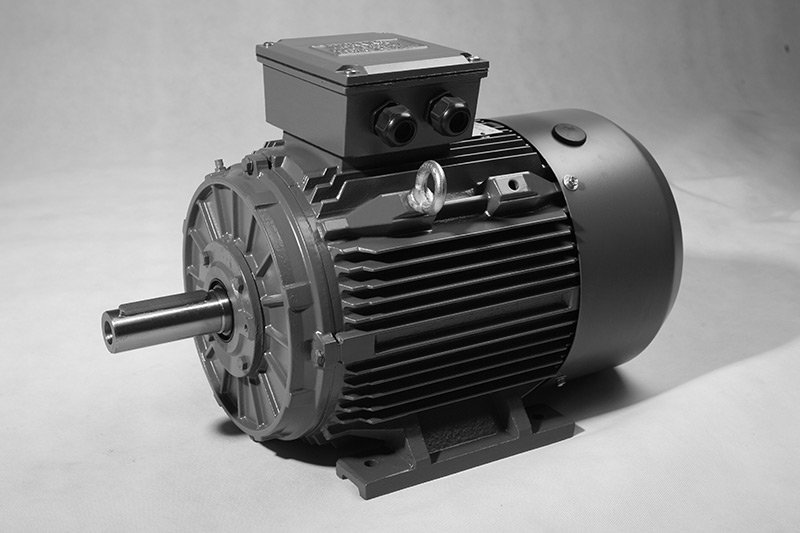

Techtop TCI-250M

Series: Other models

Source: https://techtop.com.au/product_category/3-phase-cast-iron/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Techtop TCI-250M is a three-phase induction motor. The rated output is 30 kW. The motor is eight-pole, which at 50 Hz gives a synchronous speed of 750 rpm. The housing is frame size 250M. The protection class is IP66. The efficiency is 92.2 per cent at full load, 91.8 per cent at 75 per cent load and 89.9 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5 and V1. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Techtop range ranges from 0.75 to 160 kW; the TCI-250M sits in the lower part of that range with 30 kW. Its immediate neighbours are the TCP 200L2-6 below it with 22 kW and the TAI 200L2-2 above it with 37 kW. 204 Techtop models are on record. The model is listed under Electric motors. 20 verified figures from 1 source are on file.

Technical data

Engine

Rated output30 kWcorrect

Electrical data

Number of poles8correct
Protection classIP55. IP56, IP66correct
Frame size250Mcorrect
Mounting (IEC 60034-7)B3, B3/5, B5, V1correct
Efficiency at full load92.2 %correct
Efficiency at 75 % load91.8 %correct
Efficiency at half load89.9 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Techtop TCI-250M have?

The Techtop TCI-250M delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
