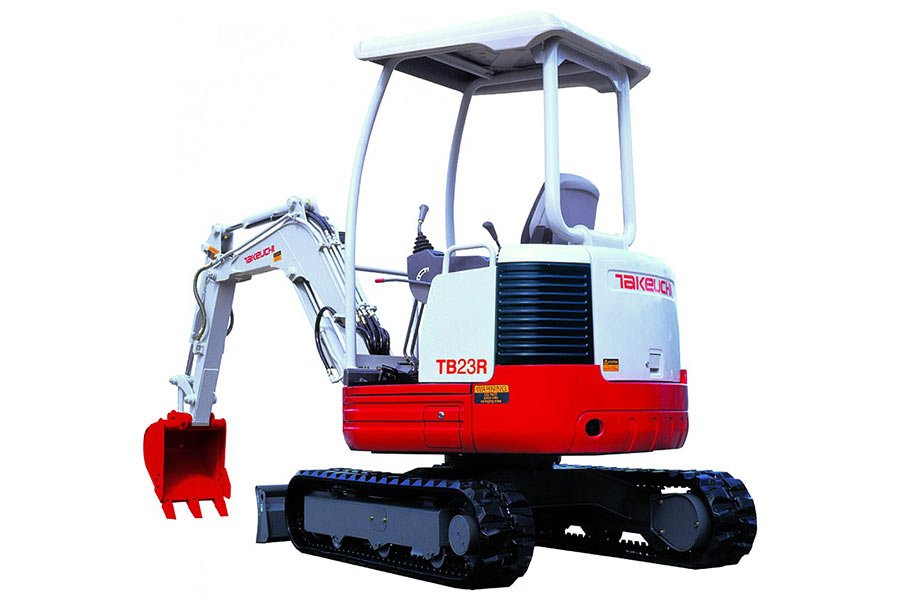

Takeuchi TB23R

Series: Takeuchi Mini Excavator

Source: https://www.takeuchi.sk/en/project/takeuchi-tb23r/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the TB23R, Takeuchi offers a model from the Takeuchi Mini Excavator series. The engine delivers 13.9 kW, with a displacement of 3,346.2 cm³. Torque is 68.2 Nm. Rated speed is 2,300 rpm. The unladen weight is 2,600 kg. Ground clearance is 265.2 mm. The tank holds 30.3 litres. The pump delivers 70.4 l/min. The hydraulic tank holds 38.2 litres. Working pressure is 210 bar. The cooling system holds 3.8 litres. The oil fill is 3.4 litres. The engine fitted is the 3TNV76. The Takeuchi Mini Excavator series covers 15 models. Rated output within it ranges from 6 to 24.6 kW; the TB23R sits in the middle of that range with 13.9 kW. Its immediate neighbours are the TB015 below it with 11.9 kW and the TB125 above it with 16.8 kW. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine model3TNV76correct
Power13.9 kWcorrect
Rated speed2,300 rpmcorrect
Torque68.2correct
Displacement3,346.2 cm³correct
Coolant capacity3.8 lcorrect
Engine oil capacity3.4 lcorrect

Dimensions and weights

Ground clearance265.2correct
Unladen weight2,600 kgcorrect

Working data

Pump flow70.4 l/mincorrect
Hydraulic oil capacity38.2 lcorrect
Hydraulic pressure210 barcorrect
Fuel tank capacity30.3 lcorrect

Other data

Height2,450.6correct

Where this model stands

Power-to-weight ratio: 5.3 kW/t (14 kW / 2.6 t)

Stronger than 29% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Takeuchi TB23R have?

The Takeuchi TB23R delivers 13.9 kW.

How much does the Takeuchi TB23R weigh?

The unladen weight is 2,600 kg.

What engine does the Takeuchi TB23R have?

3,346 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
