Start › Mini excavators › Takeuchi › TB108

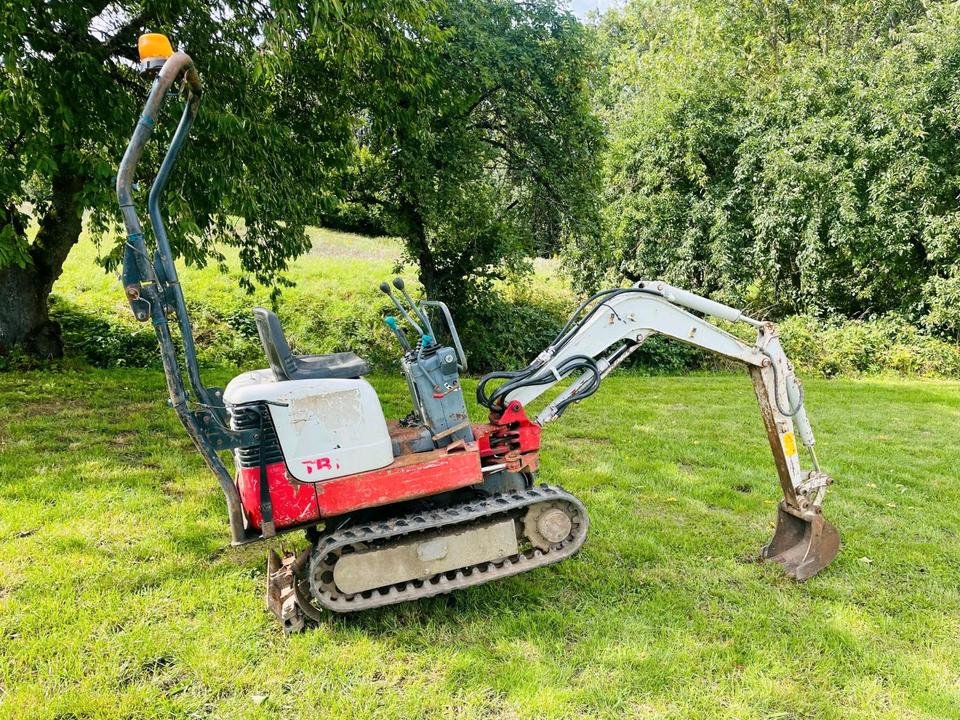

Takeuchi TB108

Series: Takeuchi Mini Excavator

Source: https://www.kleinanzeigen.de/s-anzeige/minibagger-takeuchi-t

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Takeuchi Mini Excavator series from Takeuchi includes the TB108. The engine delivers 9.7 hp (7.2 kW), has 2 cylinders, with a displacement of 568.6 cm³. Torque is 33.4 Nm. Rated speed is 2,400 rpm. The unladen weight is 922.2 kg. Ground clearance is 161.5 mm. The tank holds 9.5 litres. Maximum torque is reached at 1,800 rpm. The pump delivers 21.2 l/min. The hydraulic tank holds 15.5 litres. Working pressure is 157.8 bar. The cooling system holds 2.6 litres. The oil fill is 1.5 litres. The electrical system runs on 12 V. The engine fitted is the 2TNV70. The Takeuchi Mini Excavator series covers 15 models. Rated output within it ranges from 8.1 to 33.5 hp; the TB108 sits at the bottom of that range with 9.7 hp. Its immediate neighbours are the TB007 below it with 8.1 hp and the TB014 above it with 12.2 hp. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model2TNV70correct
Power9.7 hp (7.2 kW)correct
Rated speed2,400 rpmcorrect
Torque33.4correct
Speed at max. torque1,800 rpmcorrect
Cylinders2correct
Displacement568.6 cm³correct
Coolant capacity2.6 lcorrect
Engine oil capacity1.5 lcorrect

Dimensions and weights

Ground clearance161.5correct
Unladen weight922.2 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow21.2 l/mincorrect
Hydraulic oil capacity15.5 lcorrect
Hydraulic pressure157.8 barcorrect
Fuel tank capacity9.5 lcorrect

Other data

Height2,109.2correct

Where this model stands

Power-to-weight ratio: 7.8 kW/t (7 kW / 0.9 t)

Stronger than 2% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Takeuchi TB108 have?

The Takeuchi TB108 delivers 9.7 hp.

How much does the Takeuchi TB108 weigh?

The unladen weight is 922 kg.

What engine does the Takeuchi TB108 have?

2 cylinders, 569 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
