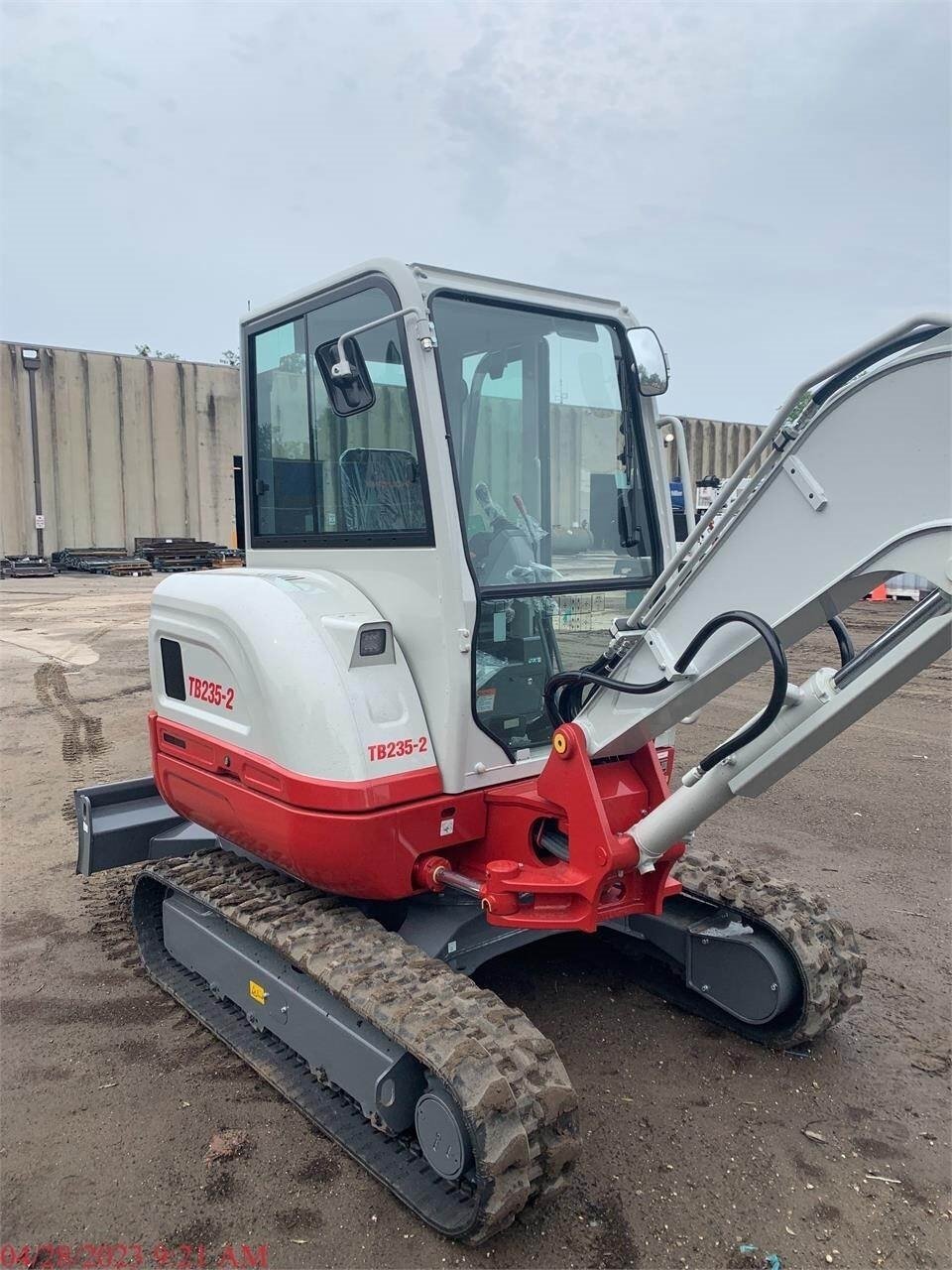

Takeuchi TB235

Series: Takeuchi Mini Excavator

Source: https://www.ritchielist.com/construction/excavators-mini-exc

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Takeuchi TB235 is a model in the Takeuchi Mini Excavator series. The engine delivers 30.2 hp (21.5 kW), has 3 cylinders, with a displacement of 1,638.7 cm³. Torque is 107.1 Nm. Rated speed is 2,400 rpm. The unladen weight is 3,605 kg. Ground clearance is 301.8 mm. The tank holds 53.4 litres. Maximum torque is reached at 1,440 rpm. The pump delivers 26.1 l/min. The hydraulic tank holds 67 litres. Working pressure is 206.8 bar. The cooling system holds 8.7 litres. The oil fill is 4.9 litres. The engine fitted is the 3TNV88. The Takeuchi Mini Excavator series covers 15 models. Rated output within it ranges from 8.1 to 33.5 hp; the TB235 sits at the top of that range with 30.2 hp. Its immediate neighbours are the TB138FR below it with 28.2 hp and the TB035 above it with 33.5 hp. 48 Takeuchi models across 8 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine model3TNV88correct
Power30.2 hp (21.5 kW)correct
Rated speed2,400 rpmcorrect
Torque107.1correct
Speed at max. torque1,440 rpmcorrect
Cylinders3correct
Displacement1,638.7 cm³correct
Coolant capacity8.7 lcorrect
Engine oil capacity4.9 lcorrect

Dimensions and weights

Ground clearance301.8correct
Unladen weight3,605 kgcorrect

Working data

Pump flow26.1 l/mincorrect
Hydraulic oil capacity67 lcorrect
Hydraulic pressure206.8 barcorrect
Fuel tank capacity53.4 lcorrect

Other data

Height2,450.6correct

Where this model stands

Power-to-weight ratio: 6 kW/t (22 kW / 3.6 t)

Stronger than 70% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Takeuchi TB235 have?

The Takeuchi TB235 delivers 30.2 hp.

How much does the Takeuchi TB235 weigh?

The unladen weight is 3,605 kg.

What engine does the Takeuchi TB235 have?

3 cylinders, 1,639 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
